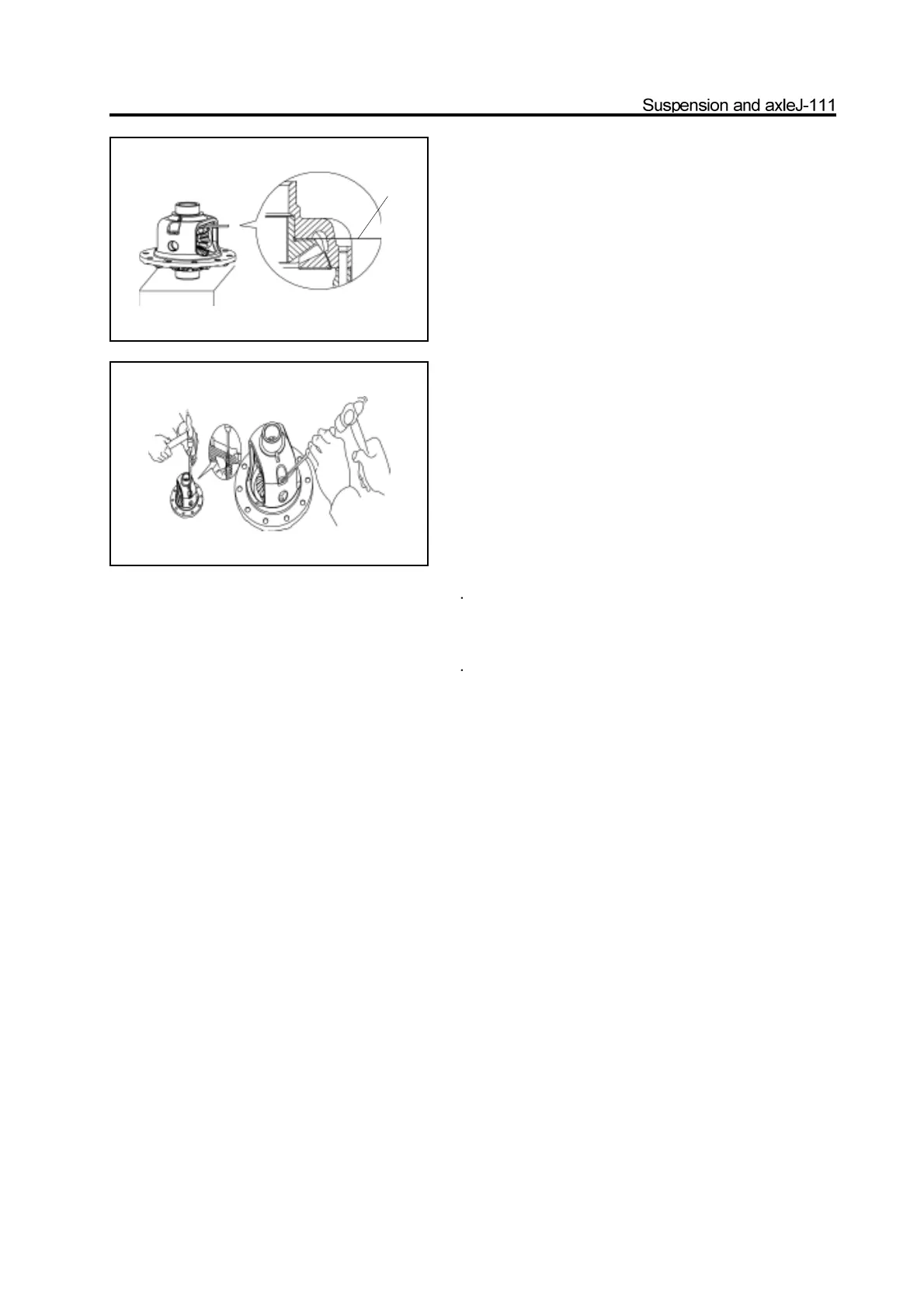

c.Use the feeler to measure the clearance between the thrust plate
and differential housing; it can be replaced by the thrust plate with
different thickness if the clearance is beyond the specified range.
Standard clearance: 0.45-0.75mm
d.Install the straight pin
Use the hammer and punch to knock in the pin through the hole
on the differential housing and planetary gear shaft. Rivet the pin
with the differential housing.
Installation of differential
1 Install the differential assembly in the reducer hous
ing
(Refer to “Assembly of Reducer”)
2 Install the differential
(Refer to “Installation of Reducer and Differential Assembly”)
