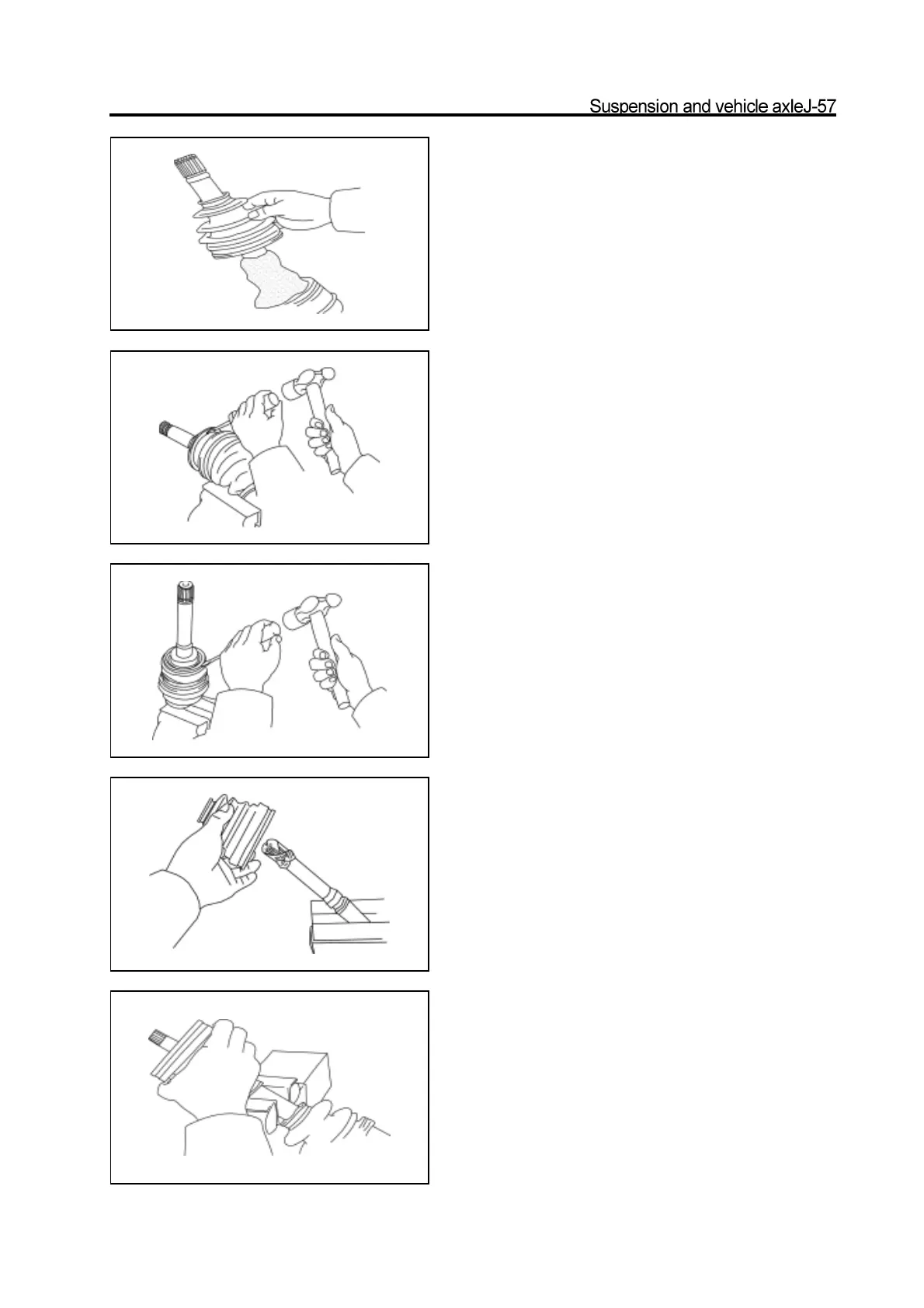

7. Remove the outer jacket
Caution: Clean the protective jacket and remove the grease on
the outer trumpet connector. Do not disassemble the outer
trumpet connector.
8. Use the screwdriver and hand hammer to remove
the dustproof cover.
Assembly of constant-speed drive shaft assembly
1. Use the hand hammer and screwdriver to install
the dustproof cover
Caution: The dustproof cover should be replaces when
itisdeformed heavily.
2. Install the large clip of outer jacket, outer jacket
and small clip of outer jacket.
Caution: The outer jacket should be replaced when it is
damaged or aged heavily and warp the end of the shaft with the
plastic band and coat with small grease before insert it.
3. Insert the small clip of inner jacket, inner jacket
and large clip of inner jacket.
Caution: The inner jacket should be replaced when it is
damaged or aged heavily.
