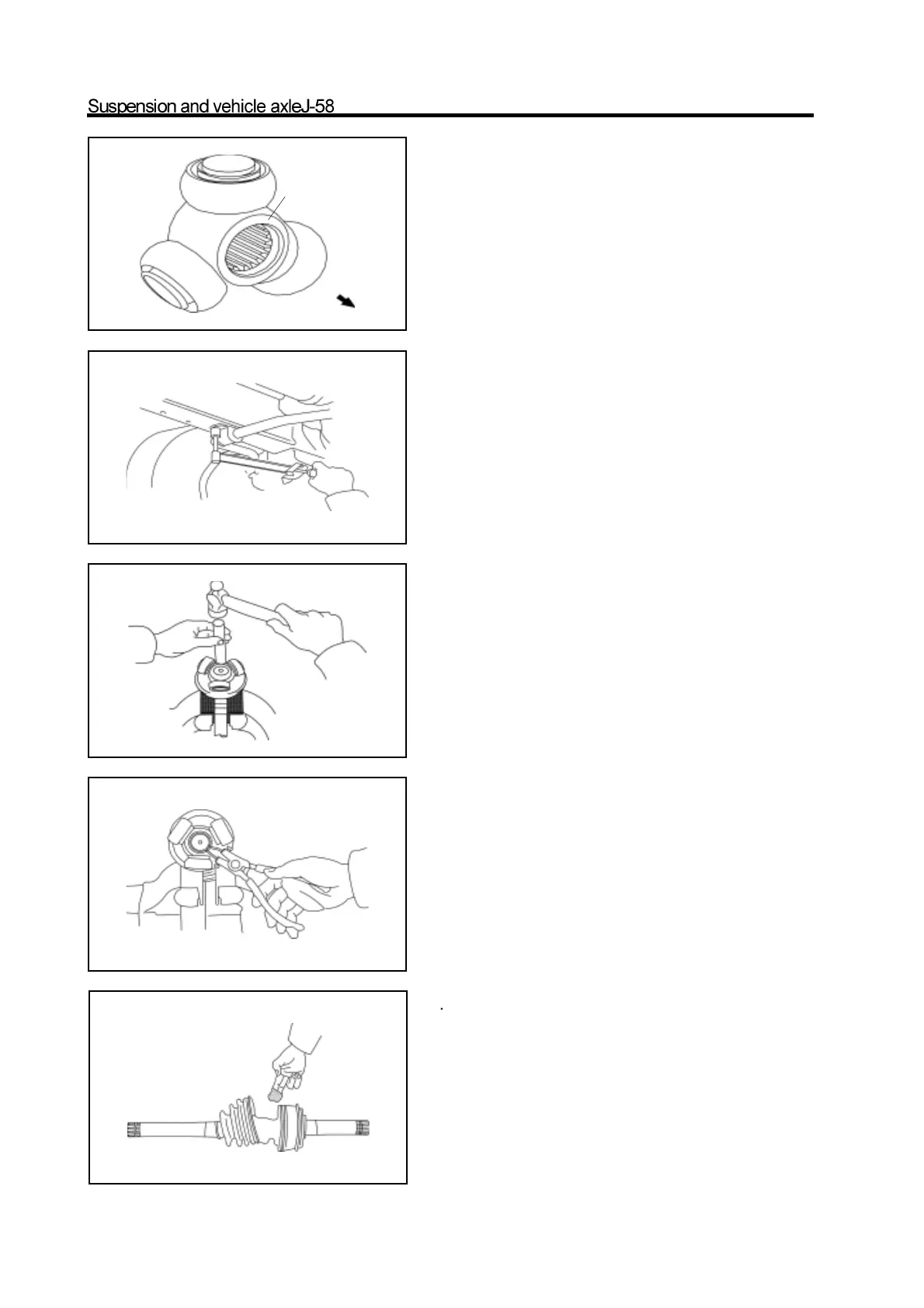

4. Install the three-pin section assembly on the front
drive shaft.
a.Let the end of three-pin section assembly with chamfer faces the
shaft inner direction.
Caution: The three-pin section assembly should be replaced if
its needle bearing position is damaged.
b.Align the assembly mark made before disassembly.
c. Use the hand hammer and copper bar to install the three-pin sec
tion assembly to the front drive shaft.
d.Use the circlip pliers to install the new circlip.
5 Install the outer jacket on the outertrump etconn
ector.
Fill the jacket with the grease supplied with the jacket before
install the jacket.
(Recommend used grease is CAPLEX or KY1)
Grease using amount: About 110g
with chamfer
