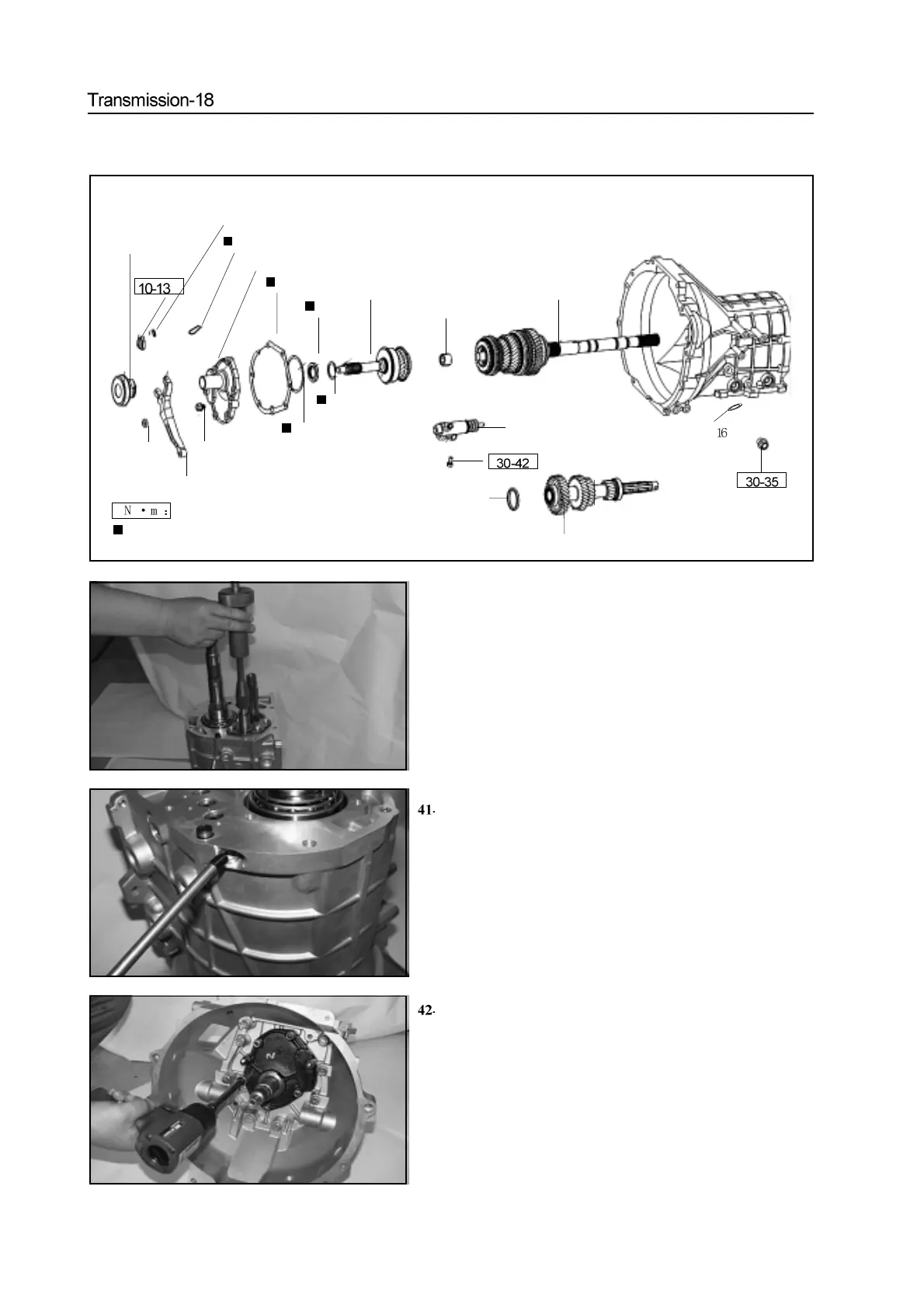

Disassembly of clutch housing assembly /bearing
housing assembly
40. Use the special tools to remove the reverse shaft
Use the magnetic rod to take out 2 interlocking pins
Remove the first bearing block assembly
a. Use the special tools to install 6 M8 bolts.
Caution: When install 6 M8 bolts, the tightening torque is 10-
13N·m
Clutch housing assembly / Bearing housing assembly
bush
oil seal
Used component which can not be used any more.
throwout bearing
assembly
washer 8
¦ non-standard spring
first bearing
first shaft assembly
needle bearing
second shaft assembly
¦circles for shaft
¦adjusting shim
leather cup
separation rocker arm assembly
separation rocker arm ball support
clutch cylinder assembly
front space ring of intermediate shaft
intermediate shaft assembly
aluminum waher
Specified torque
