Transmission-35

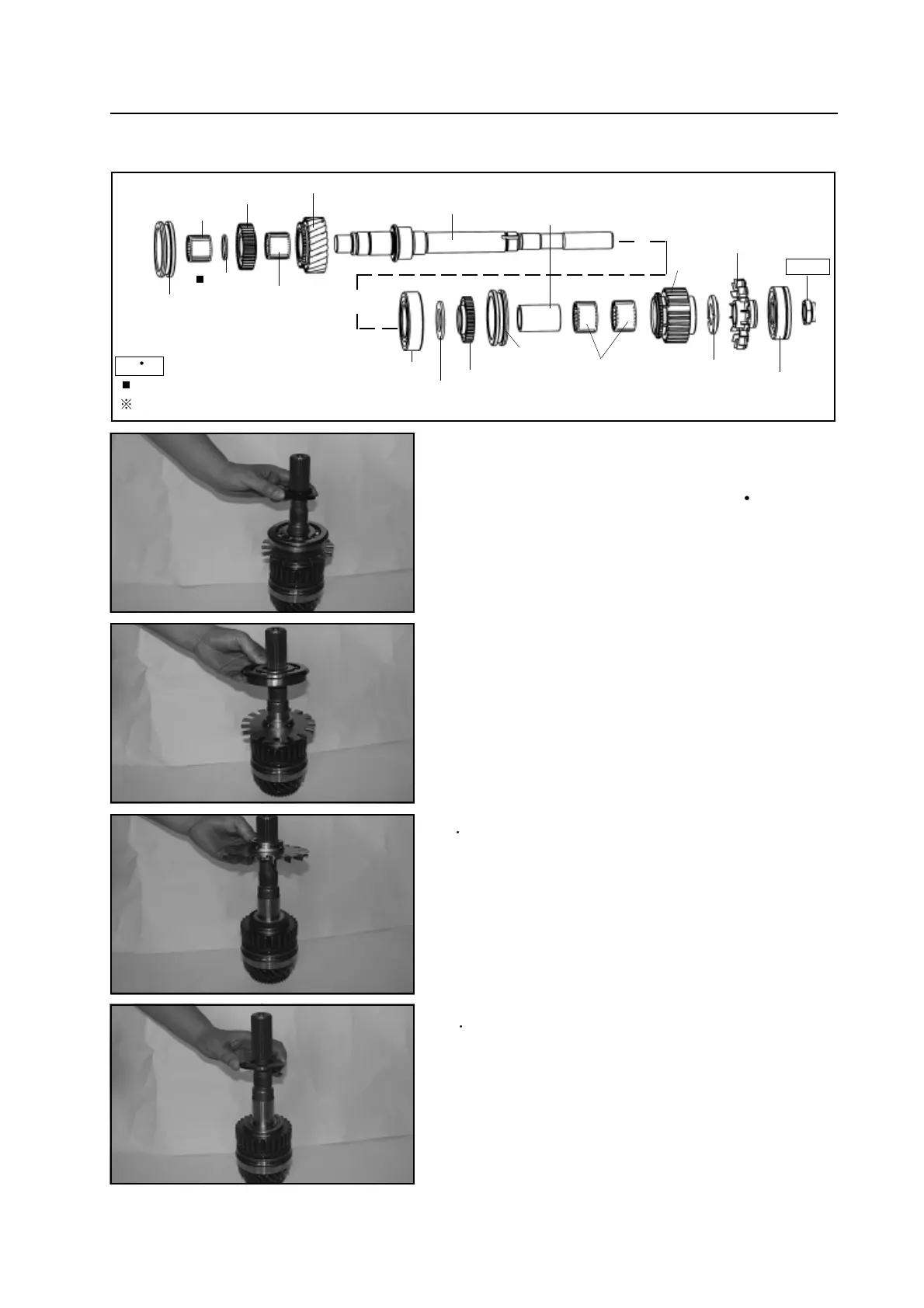

Disassembly of rear output shaft assembly
a. Use the special tools to remove the lock nut
Caution: The tightening torque is 87-120N
m when in-
stall the lock nut.
b. Remove the ball bearing
Rear output shaft assembly
c Remove the oil guide plate
circlips for shaft
high and low
gear sleeve
needle bearing
high and low gear hub
needle bearing
low-speed driven gear
rear output shaft
ball bearing
spacing plate
second/ fourth drive gear hub
second/fourth
drive geared sleeve
sprocket needle bearing bushing
needle
bearing
drive sprocket
spacer of
drive sprocket
oil guide plate assembly
ball bearing
assembly
87-120
N m: specified torque
Used component which can not be used any more.
Use the special tools
d Remove the spacing ring
