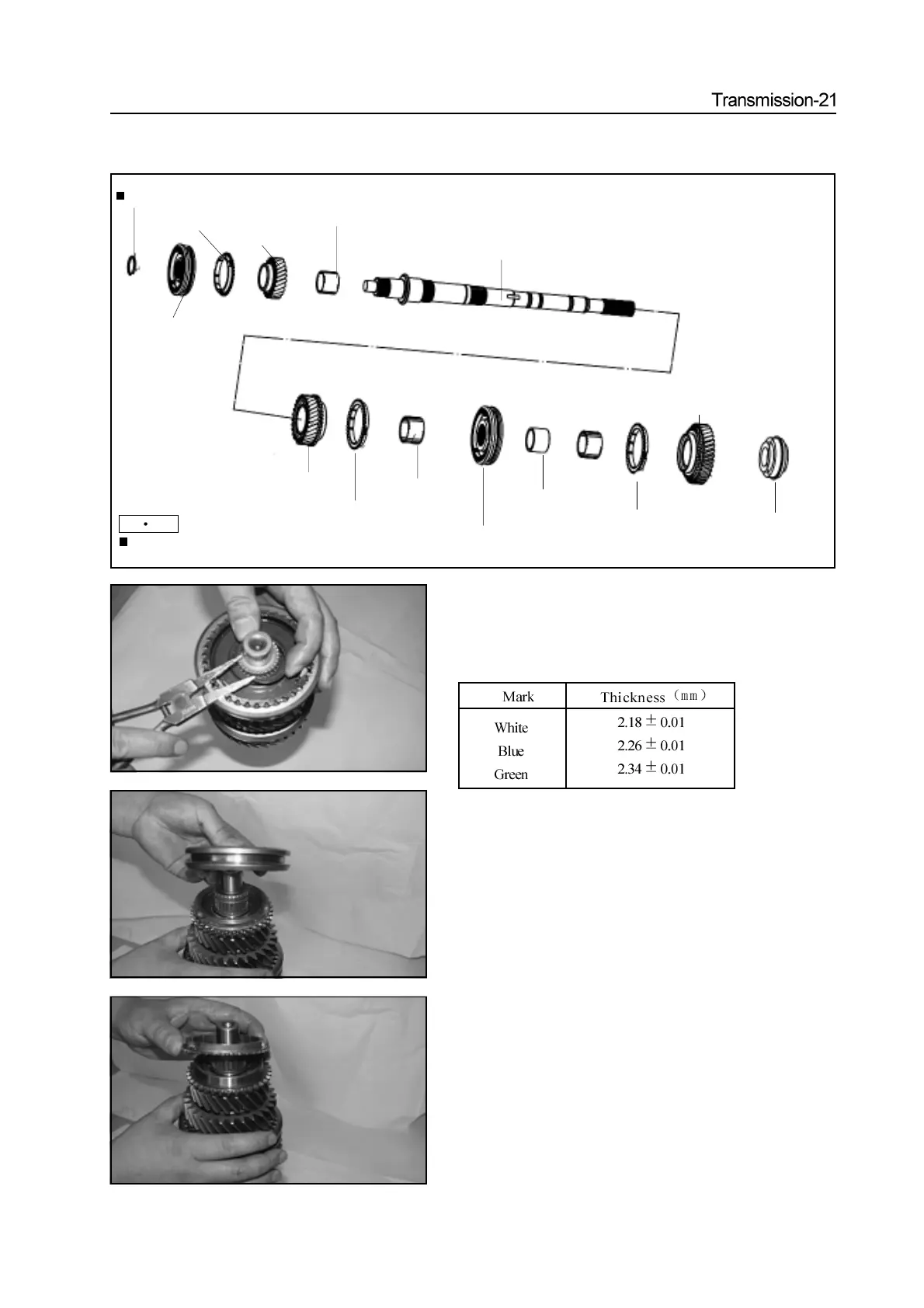

Secondary shaft assembly
49. Disassembly of second shaft assembly
a. Remove the second shaft rear retainer
Caution: It should select the circlip for shaft when install the
circlip for shaft.
b. Remove the 3rd/4th-Gear synchronizer assembly
c. Remove the 3rd/4th-Gear synchronizer gear ring
Caution: When install the 3rd/4th-Gear synchronizer gear ring, it
should use the plug gage to measure the end surface clearance of
gear ring to ensure it is within 1.25-1.65mm
¦circlips for shaft
3rd/4th-Gear syn-
chronizer assembly
1st/2nd-Gear synchronizer assembly
synchronizer gear ring
3rd-Gear driven gear assembly
needle bearing
second shaft
2nd-Gear driven gear assembly
2nd-Gear synchronizer gear ring
needle bearing
sleeve
1st-Gear synchronizer gear ring
1st-Gear driven gear assembly
double inner-race
N m: specified torque
Used component which can not be used any more.
