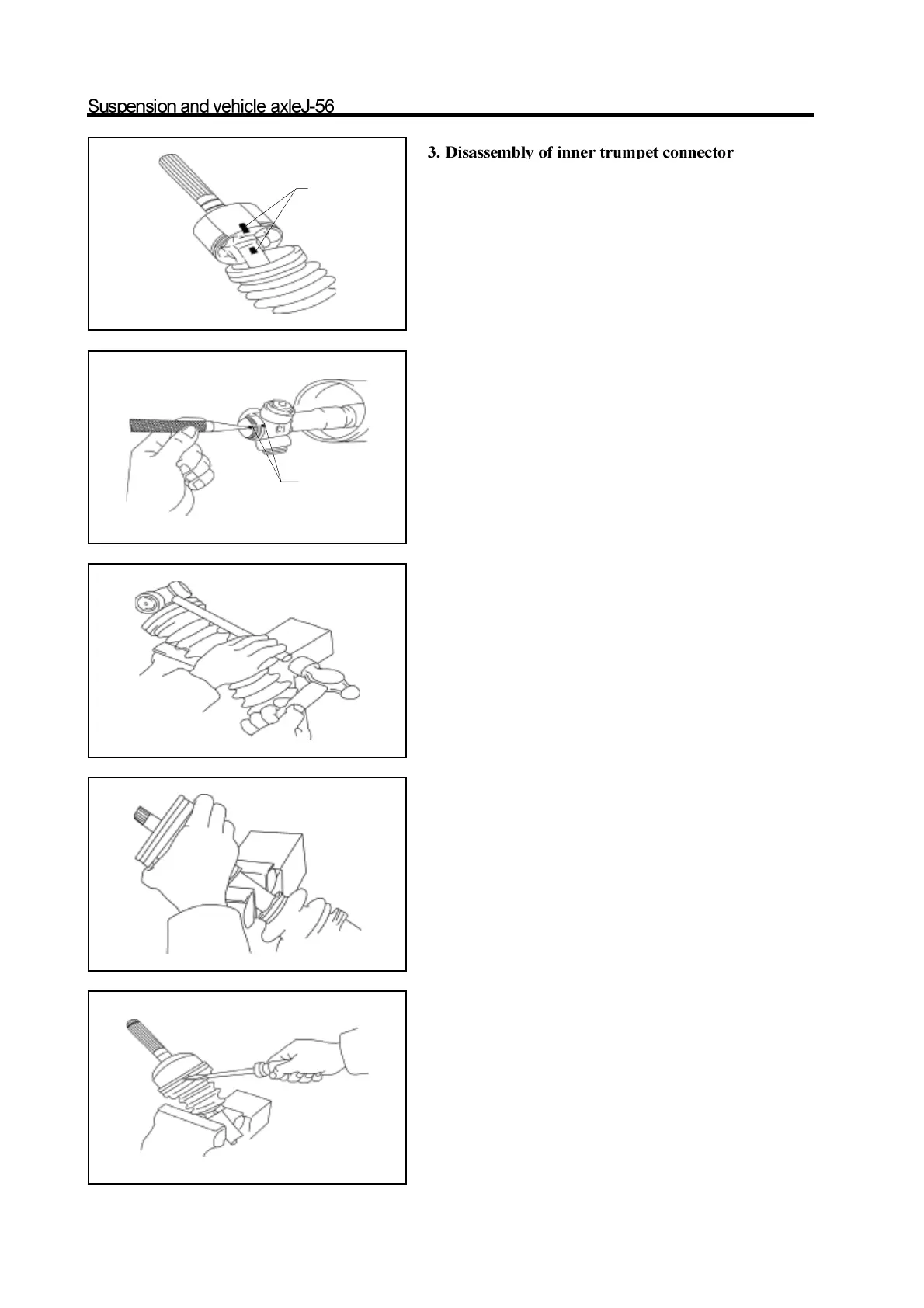

Great Wall hover - Disassembly of Inner Trumpet Connector

a. Make the assembly mark on the inner trumpet connector and
three-pin section assembly.
Caution: remove the grease in the connector before make the
mark and don’t make the mark by the hard object such as
punch.
b. Remove the inner trumpet connector.
4. Disassembly of three-pin section assembly
a. Use the circlip pliers to remove the circlip.
b. Use the adz and hand hammer to make the assembly mark on
the shaft and three-pin section assembly.
c. Use the cooper bar and hand hammer to remove the three-pin
section.
Caution: Remove the cooper chip on the shaft or three-pin
section assembly if has.
5. Remove the inner jacket
a. Use the pliers to disassemble the small clip of inner jacket.
b. Pull out the inner jacket.
Caution: Remove the grease in the jacket and maintain the
clean field.
6. Use the straight screwdriver to disassemble the
large and small clip of outer jacket.
assembly mark
assembly mark
