Constant-speed drive shaft assembly
pliers
Disassembly of constant-speed drive shaft
assembly

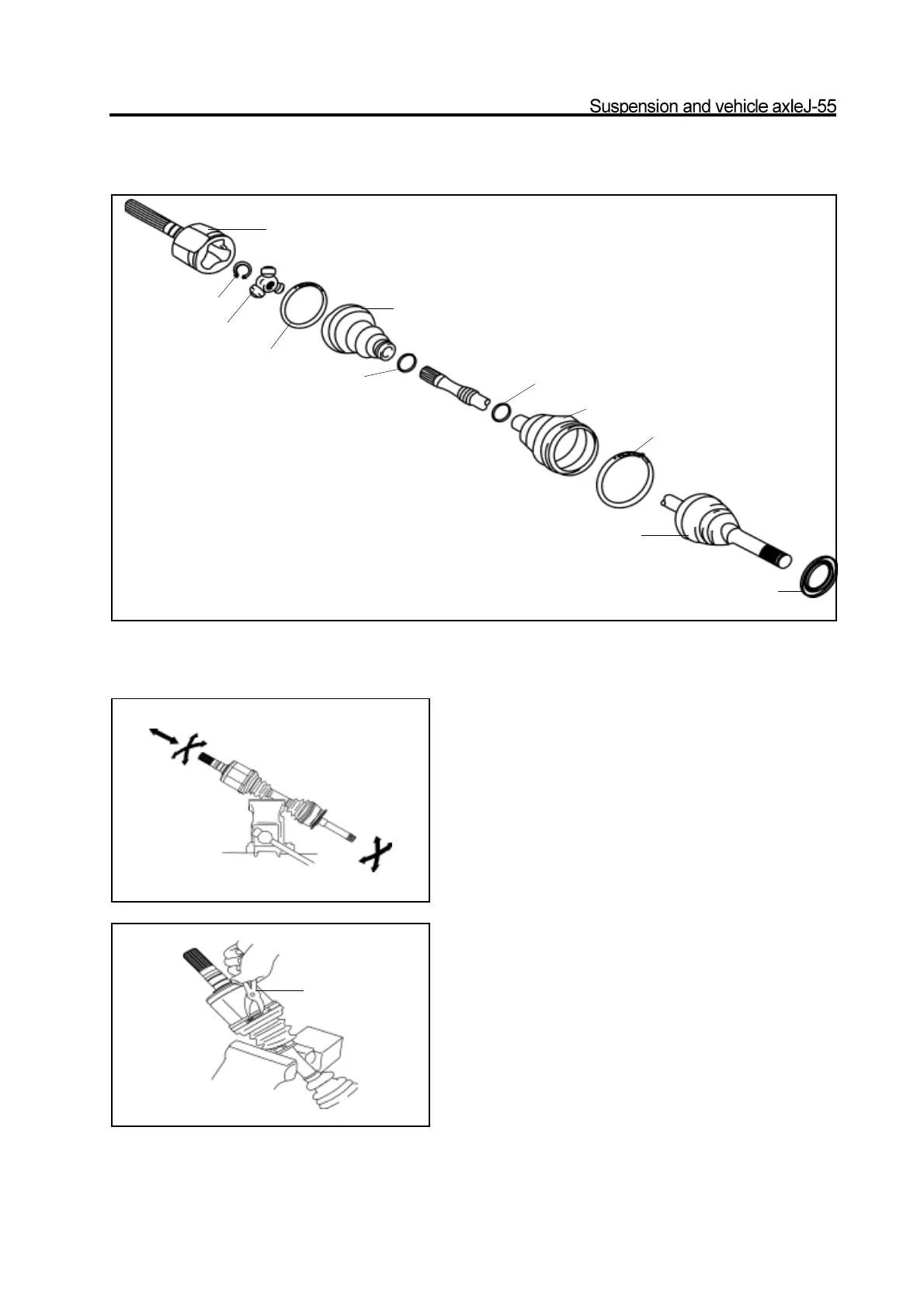

1. Check the front drive shaft assembly
a. Check the inner trumpet connector; it could slide in axial
direction smoothly.
b. Check the universal-joint position; it should be without the
clear clearance in radius direction.
c. Check the inner and outer jacket for damage.
Caution: It should use the pad when clamp the front drive
shaft to avoid the damage of it.
2. Remove the large clip of inner jacket
Caution: Do not damage the inner and outer jacket
inner trumpet connector
circlip
three-pin section assembly
large clip of inner jacket
inner jacket
small clip of inner jacket
small clip of outer jacket
outer jacket
large clip of outer jacket
outer trumpet connector
dustproof cover
