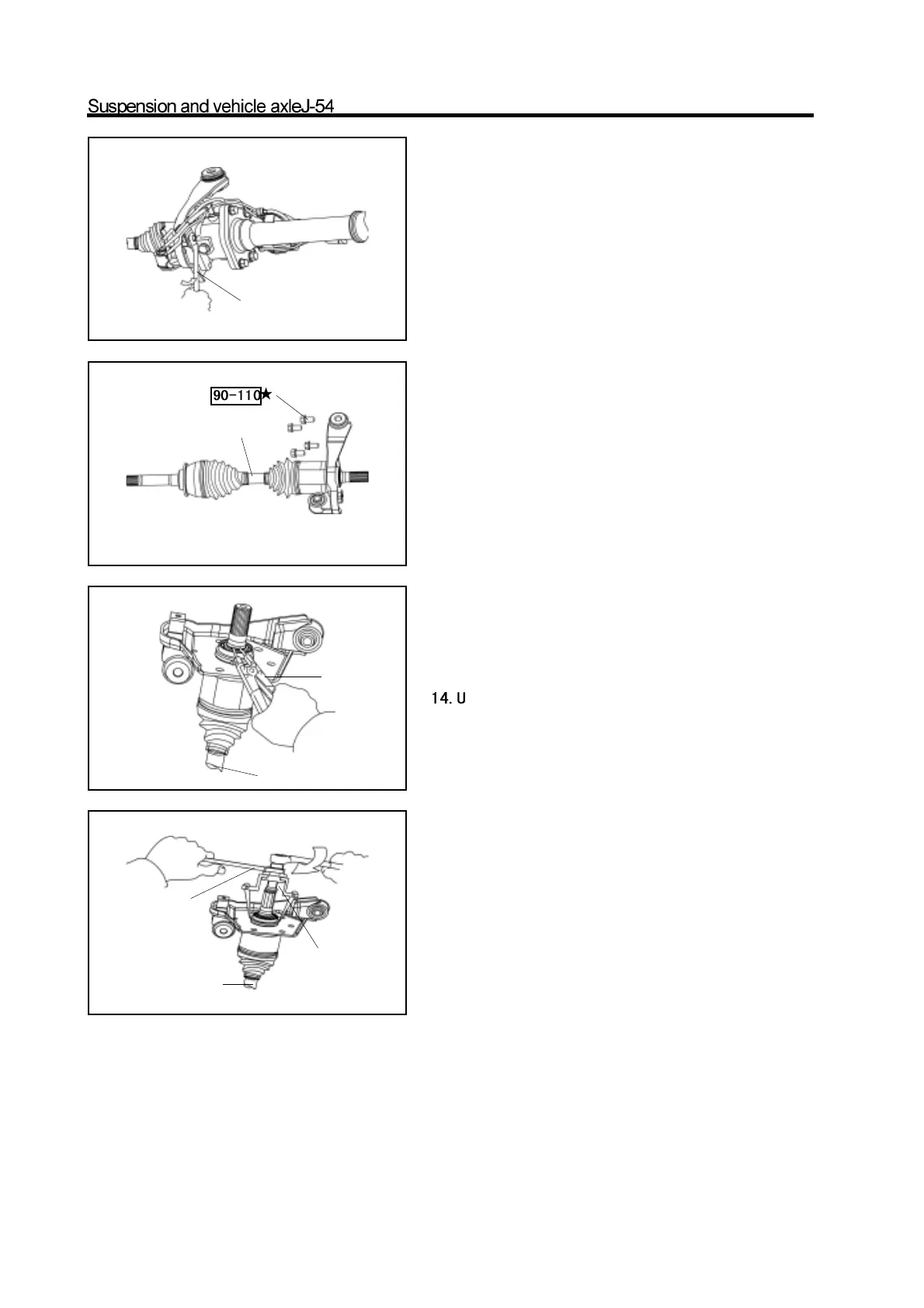

9. Use the wrench to screw off the bolt which fixes
the lower segment assembly of front drive axle
vent tube on the vent tube bracket.
10. Support the front drive axle by the jack; screw
off the lifting bolt of hanger plank and carriage.
11. Remove the complete drive axle.
12. Screw off the connecting bolt of hanger plank and
front drive axle assembly.
13. Pull out the left and right front drive shaft
assembly with the oil seal, hanger plank and
bearing.
se the circlip pliers to remove the outside circlip
of bearing.
15. Use the special tools pull out the bearing.
16. Use the circlip pliers to remove the circlip on
another side of bearing.
Caution: During the disassembly, support the lower end of
drive shaft and prevent the drive shaft from sliding out from
the inner jacket, meanwhile, it could not damage the inner
and outer jacket.
wrench
circlip pliers
support the lower end
hold
special tools
shim
support the lower end
supporting position
