Automatic transmission-4
10. The gross weight of the transmission is 76kg; mostly weight is on the front of the transmission (side of torque converter). This
should be considered when design the handling/assembly tools.
11. The crankshaft speed/position sensor is installed on the top of transmission torque converter housing which must be installed
after the transmission is installed on the engine. The sensor will be damaged if it is installed before the installation of
transmission.
12. The transmission use the breathing tube connected to rear end of transmission. The tube must not be restricted or blocked
otherwise the air pressure in transmission will be increased. It is unallowable that the water/dirty/dust enters into the
breathing tube; otherwise the transmission will be damaged.
Removal of transmission
If the transmission needs removing for any reasons, following is the preventive measure to help the remove.
1. Must not only support the oil pan in middle of transmission for it will be deformed and leaked. The oil pan will not be deformed
when supports its external edge.
2. It must not allow the transmission to connect to the engine when the rear end is without connection, otherwise the exhaust
system of vehicle will be damaged.
3. Remove all torque converter bolts and push back the torque converter before remove the bolt connected the torque converter
housing to engine. Once all bolts connected the torque converter housing to engine are removed, use the torque converter the
push the transmission from the location pin, then ensure the torque converter is on the transmission and the transmission is
separated form location pin.
4. Install the dustproof cover on the cooler connector rapidly after open the oil cooler pipe; otherwise the oil leakage from the
torque converter will be 2L. The odometer dustproof cover can prevent the dirty from entering into the transmission and avoids
the leakage of oil form transmission.
5. The engine speed sensor is installed on the top of transmission and should be removed before the transmission is removed form
the engine, for the sensor will be damaged during the removal process of the transmission.

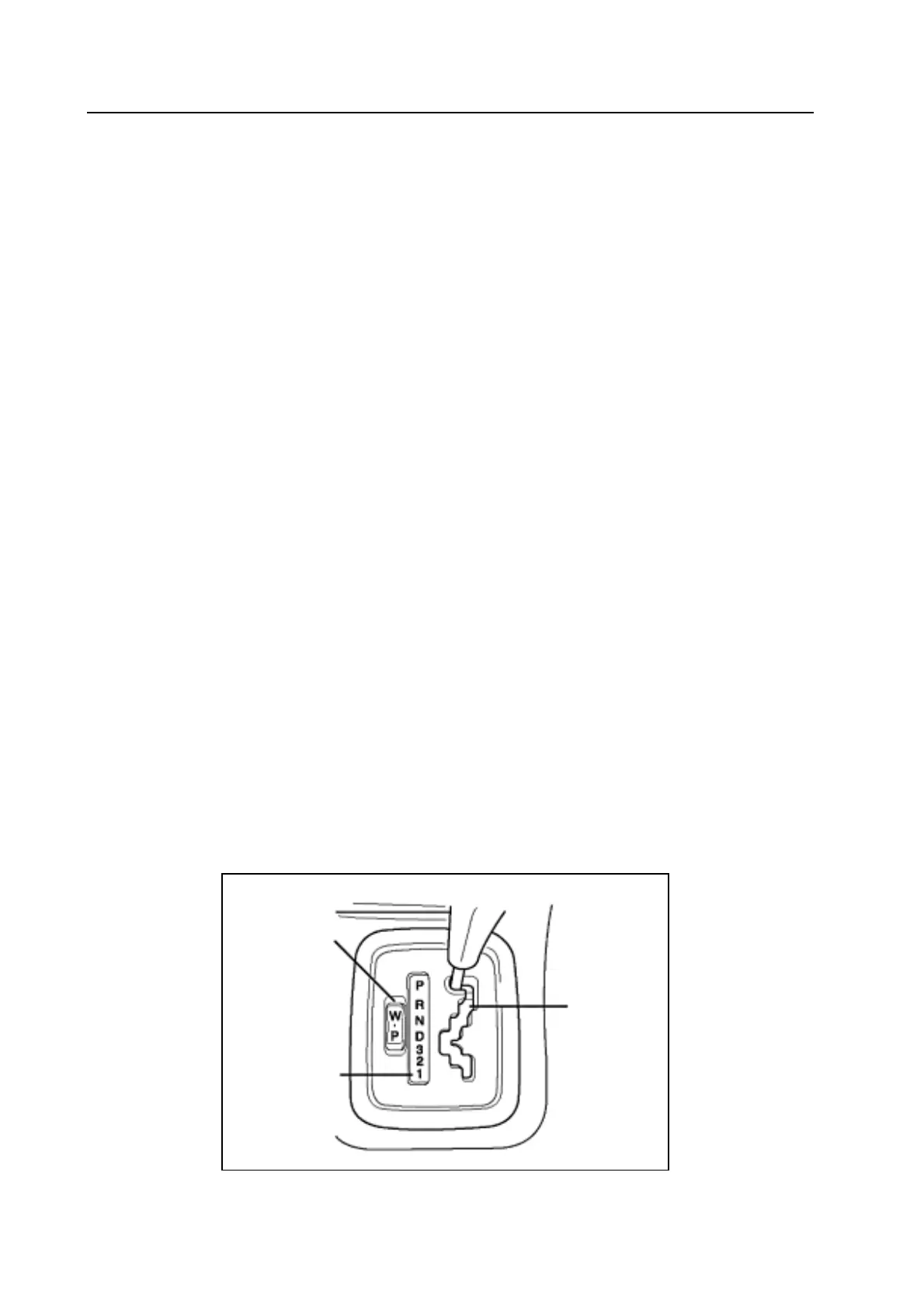

Figure 2.1 Gear selection interface
mode selection
gear selection
indication
gear slide way
Operation and display interface
The four-speed automatic transmission has three types of operation display interface which are shown as follows:
Gear selection
The transmission uses the traditional gear selection shifting handle, which is shown in figure. The gear rod can be moved on the gear
slide way according to the requirement. The relationship between the related gear and its function.
