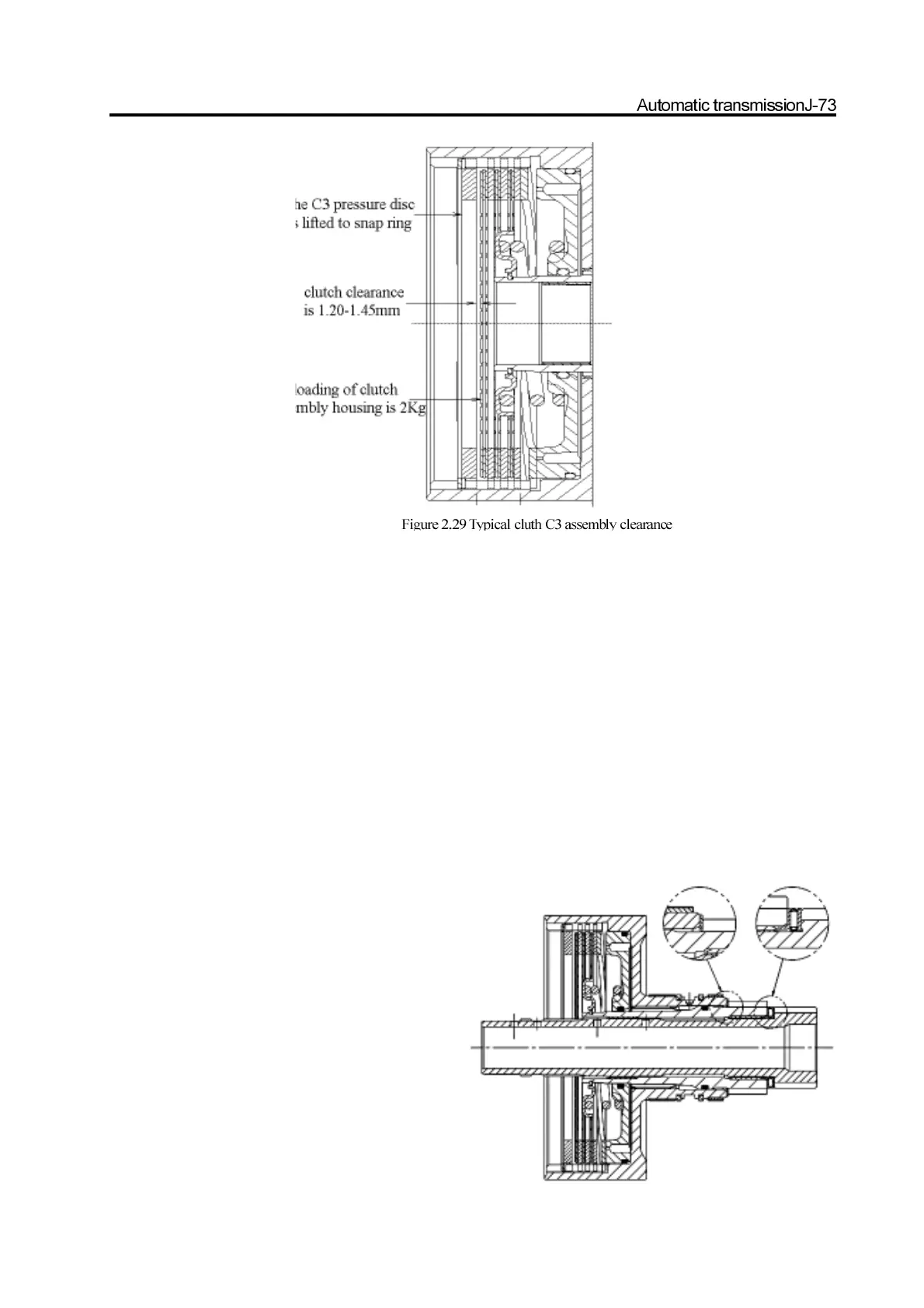

Figure 8.30 Forward-Gear central gear and C3clutch assembly
Caution:
It should take out the clutch assembly clearance before immerse the assembly into the transmission liquid.
n. It should remove the clutch and immerse the assembly into the transmission liquid for 5 miniatures at least before the
reassembly.
11. front sun gear and clutch C3 assembly
The installation procedure of front sun gear and clutch C3 assembly (Refer to Figure 8.30) is shown as follows:
a. Install the N0.7 needle thrust bearing on the front sun gear ensure the thrust washer is between the bearing and central gear.
b. Use the Vaseline to lubricate the thrust plate and install it on the reverse sun gear. Refer to Figure 8.32.
c. Adjust and install the clutch C3 assembly on the front sun gear.
d. Use the Vaseline to lubricate the NO.6 needle thrust bearing and install it on the thrust disc. Ensure the wire connecting
plate on the bearing external diameter is proper for the hole on the thrust bearing. Refer to Figure 8.33.
e. Adjust and use the Vaseline to install the plastic thrust washer on the thrust disc.
f. Install the assembly on the reverse sun gear in the position opposite to the NO.6 thrust bearing.
g. Install the assembly on the other side.
