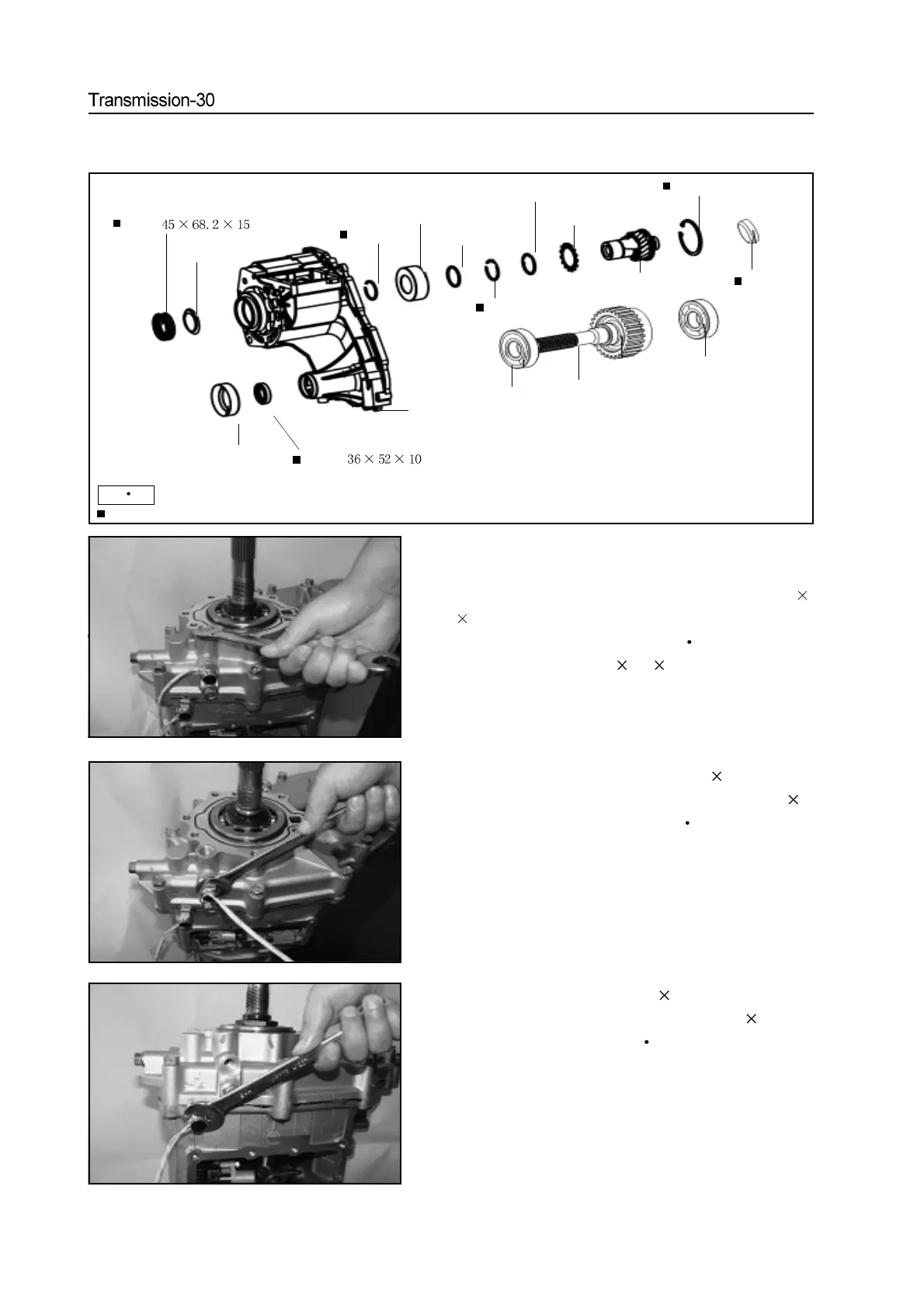

Great Wall hover - Disassembly of Transfer Case Assembly; Transfer Case Assembly (Three)

dustproof seal
guide bushing
oil seal
transfer case housing
ball bearing
front output shaft
ball bearing
bowel patch
circlips for hole
rear input shaft
auxiliary gear
disk spring
circlips for shaft
spacing ring
duplicate ball bearing
circlips for
shaft
oil seal
back plate
Transfer case assembly (three)
Disassembly of transfer case assembly
4.Remove the shouldered lock screw plug
Use the wrench to remove the shouldered lock screw plug M16
1.5 12
Caution: The tightening torque is 26-36N
m when install the
shouldered lock screw plug M16
1.5 12.
5.Remove the upper and lower drive switch M12
1.25
Caution: When install the upper and lower drive switch M12
1.
25, the tightening torque is within 26-36N
m
6.Remove the 2nd/4th drive switch M14
1.25
Caution: When install the 2nd/4th drive switch M14
1.25, the
tightening torque is with in 26-36N
m
N m: specified torque
Used component which can not be used any more.
