Brake-12

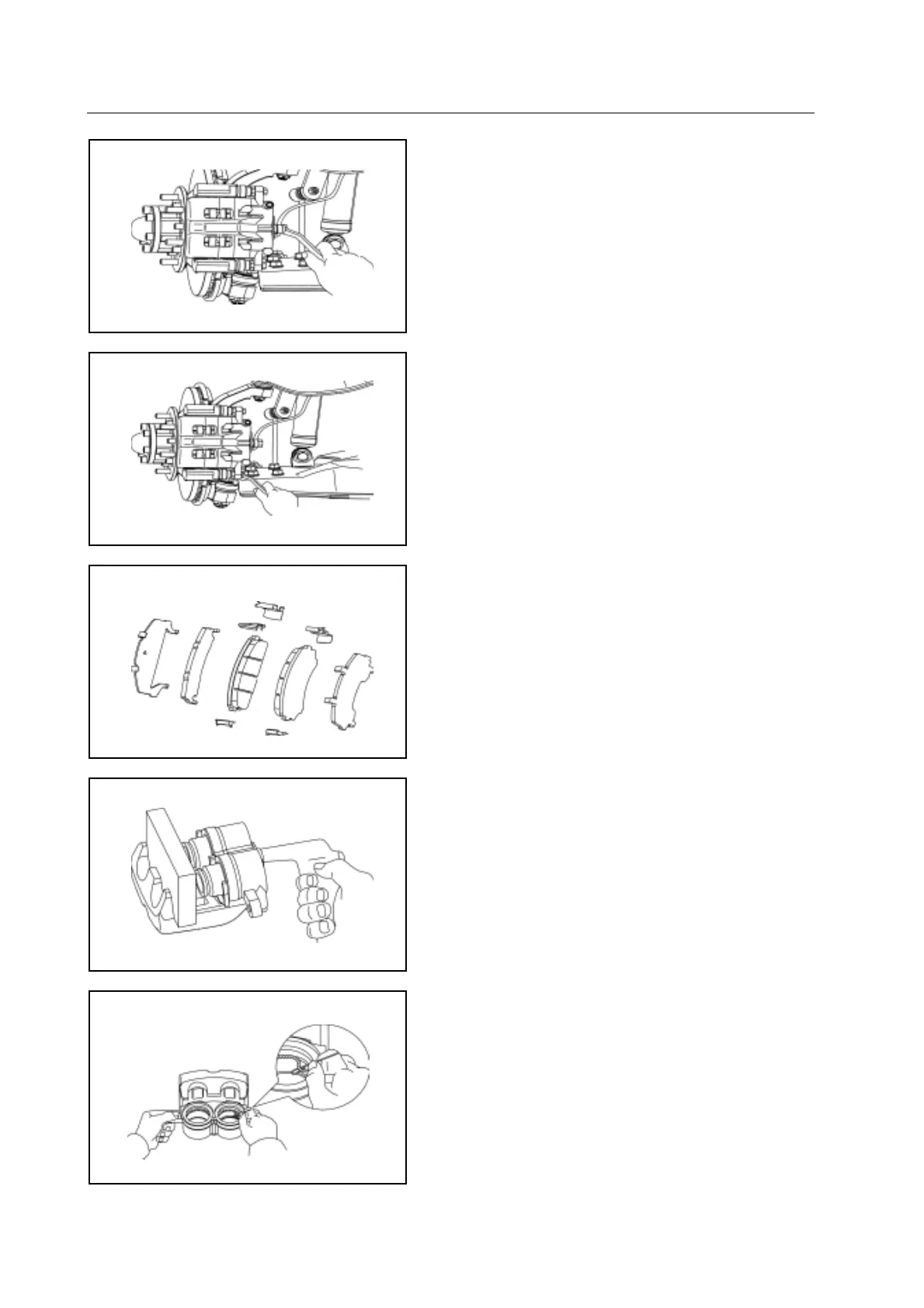

Removal of brake pump
1. Remove the brake pipeline
Remove the brake pipeline. Use a container to contain the brake fluid.
2. Remove the brake pump from the clamp bracket
a. Remove the hexagon flange bolt, location pin and guide pin.
b. Remove the brake pump.
3. Remove the brake block
a. Two brake blocks
b. One silencing plate
c. Two silencing plate combinations
d. One wear limitation alarm plate of brake block
e. Four brake block circlips
Disassembly of brake pump
1. Remove the piston form the tong
a. Place the wood block between the tong bracket and tong body .
b. Use the air gun or air pipe to aim at the brake oil pipe hole; remove
the piston form the tong.
c. Use the clean rag or soft cloth to take out the piston.
Warning: It must not place the finger in front of the piston when
use the compressed air.
2. Remove the piston gasket from the tong body.
Use the paper clip to remove the piston gasket.
Caution: The used tools must not be sharp to prevent from scratching
the piston gasket.
