Automatic transmission-11
Diagnosis input
solenoid valve
1and 2
S1 and S2 is the normal open solenoid valve, which is used to set the gear-position with other switch
solenoid valve. It determines the static gear-position by operating the gear shift valve. Refer to Table 3.5,
S1 and S2 also send the pressure single to allow or prohibit the engagement with rear brake belt.
solenoid valve
3and 4
S3 and S4 are the normal-opened solenoid valve which is used to control the shifting quality and sequence in
combination. S3 control the open or close of the clutch. S4 is used to control the on and off of the front brake
belt regulating valve.
solenoid valve 5
S5 is the variable pressure solenoid valve which can release the pressure of gear-position shifting. It provides
the pressure signal to the clutch and brake belt regulator and controls the shifting pressure. S5 also provides
the pressure single to the torque converter clutch regulating valve.
solenoid valve 6
S6 is the normal-opened solenoid valve, which is used to the set the H/L level of pipeline pressure. The
pipeline pressure is high when the solenoid valve is closed.
solenoid valve 7
S7 is the normal-opened solenoid valve which is used to control the engagement status of torque converter
licking clutch. It makes the clutch to generate the action when the S7 is in opened status.

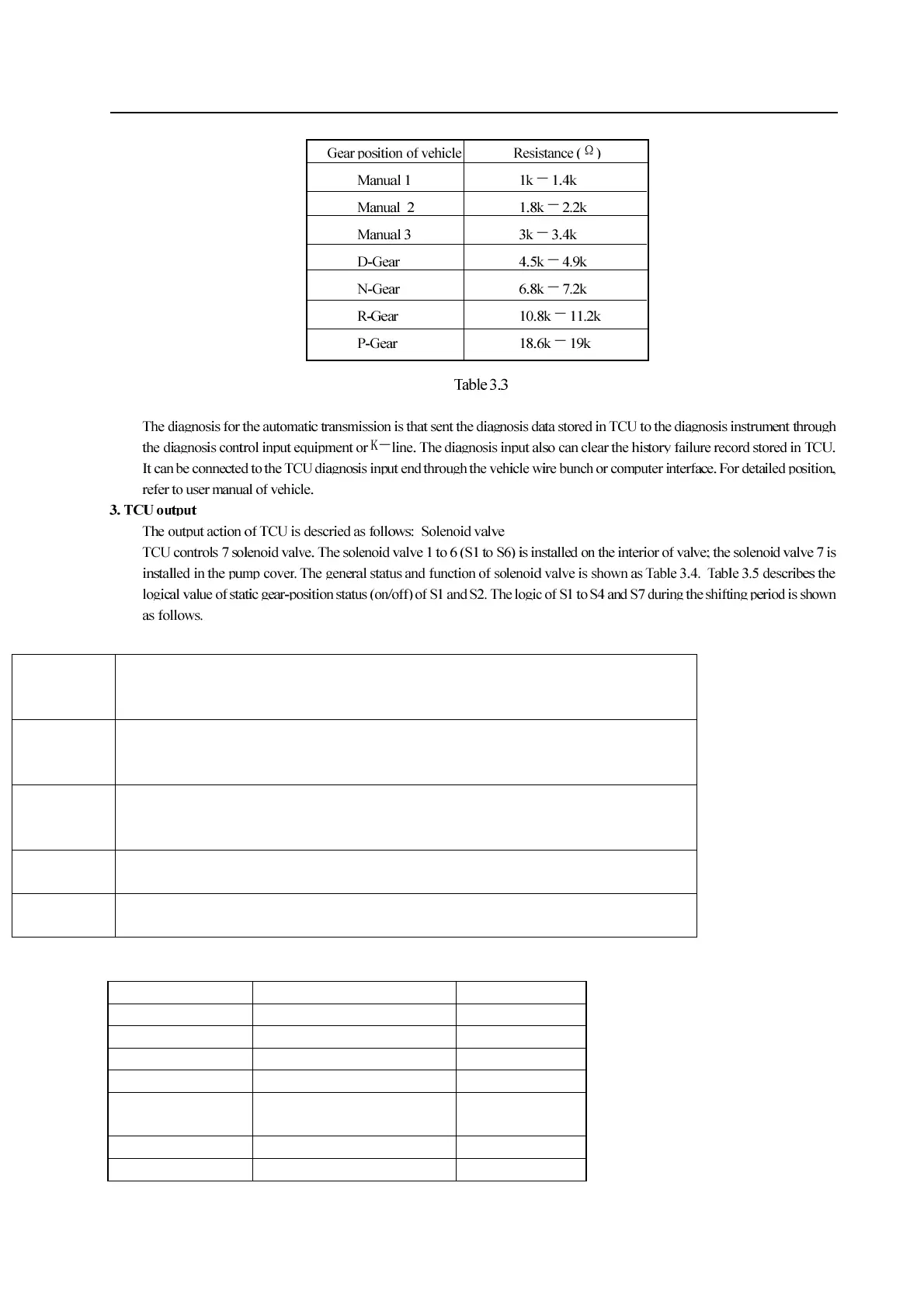

Table 3.4 Status and function of solenoid valve
Gear-position S1 S2
1
st
-Gear On On
2
nd
-Gear Off On
3
rd
-Gear Off Off
4
th
-Gear On Off
R-Gear
One of them is in On position
at least.
N-Gear Off Off
P-Gear Off Off
Table 3.5 Logic status of solenoid valve in static gear-position
