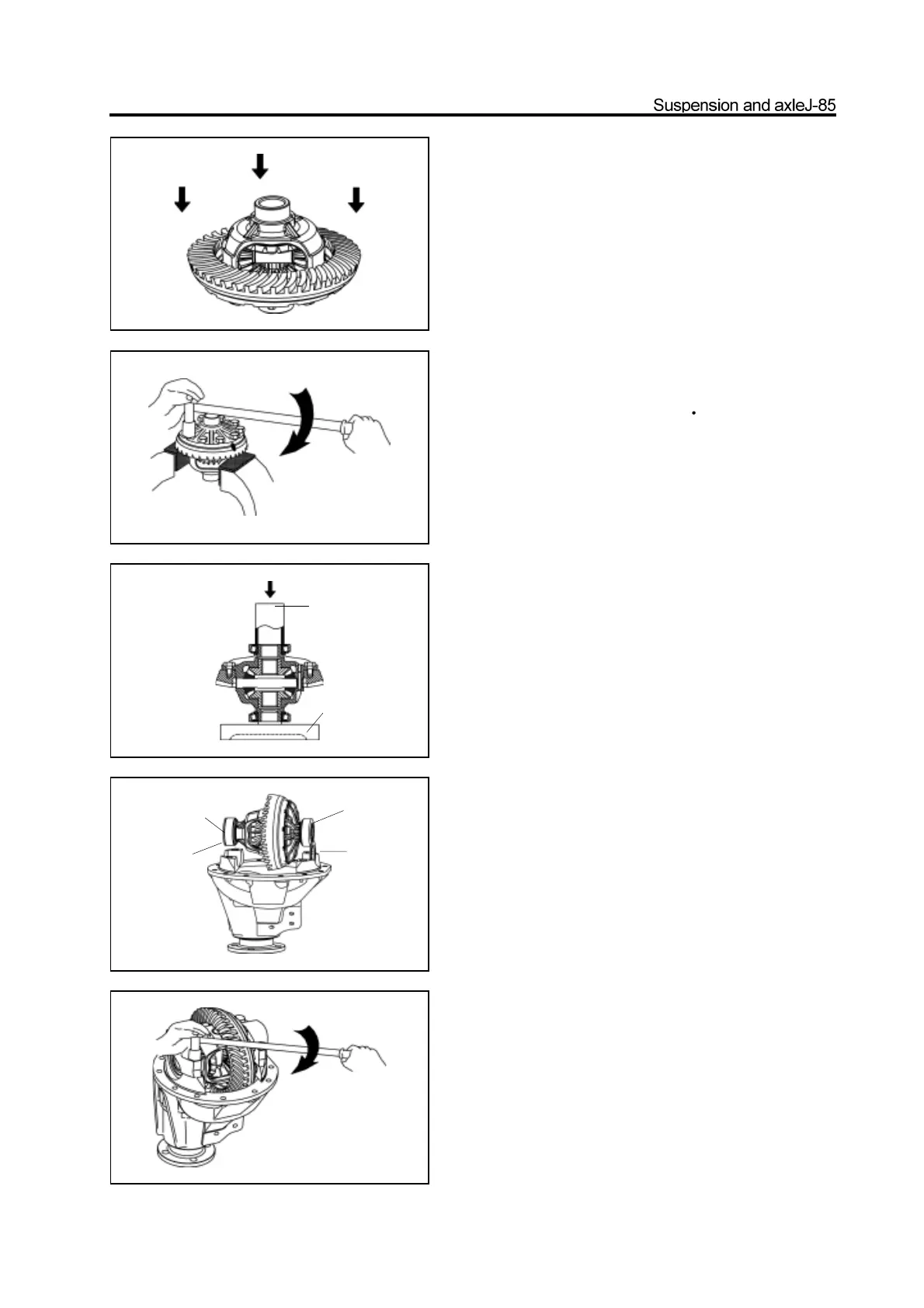

f. Clean the surface of differential housing; use the brass rod to
install the driven bevel gear on the differential housing.
Caution: It should align the marked assembly mark when
install the driven bevel gear and knock it in uniformly in
circumference ; it should remove the cooper chip in time if it
is adhered on the driven bevel gear.
g. Coat the fastening bolt of driven bevel gear with the screw
lock agent, then tighten it to the specified torque.
Specified tightening force: 80-95N
m
Caution: It should be in the diagonal sequence to tighten the
bolt and tighten it for little, then tighten it to the specified
torque uniformly.
h. On press machine, use the special tools to press the inner
race of bearing into the bearing position on both sides of
differential housing.
i. Place an adjusting shim in the position of front reducer
housing side bearing near exterior.
j. Install another adjusting shim and the other side bearing outer
race in the front reducer housing with thedifferentialassembly
k. Install two bearing glands, left and right and use the wrench
to tighten the bolt to the specified torque.
Specified torque : 90-115N.m
special tools
special tools
bearing
bearing
adjusting shim
adjusting
shim
