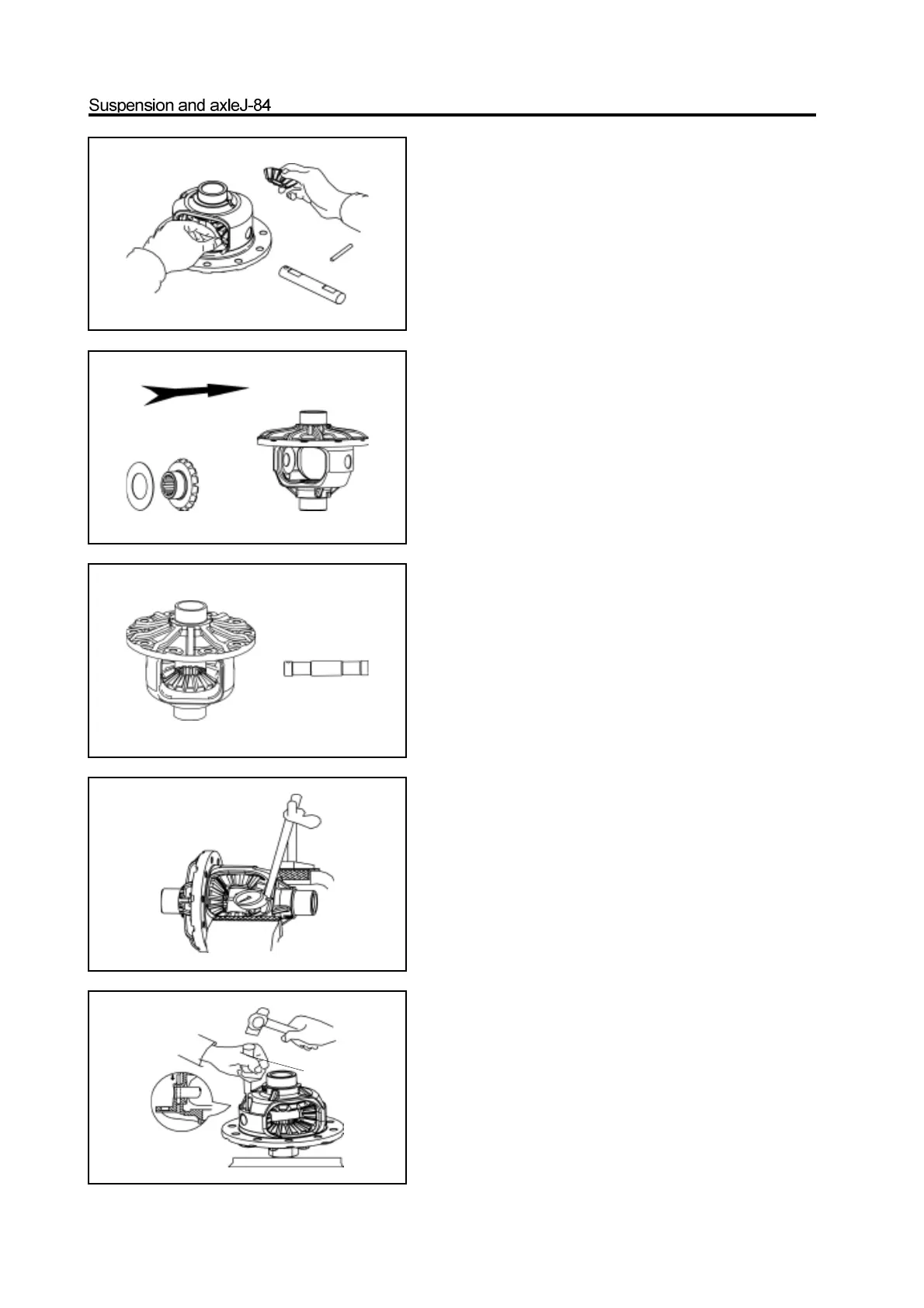

b. Knock out the planetary gear shaft, rotate the half axle gear to
take out the planetary gear, then take out the half axle gear
and thrust plate.
7. Assembly of differential assembly.
a. Wash the differential housing.
b. Cover the half axle gear thrust plate with the half axle gear,
then installs it in the differential housing.
c. Rotate the half axle gear; install the planetary gear in rolling
and insert the planetary gear shaft.
d. Use the special tools to hit the pin to fix the planetary gear
shaft, and rivet the inserted hole to prevent the loose of pin.
Remarks: The rotation of half axle gear and planetary gear
should be smooth and without block; push the planetary gear
to inside, then use the dial indicator to measure the clearance
between the half axle gear thrust plate and differential
housing.
Rational clearance range: 0.4-0.75mm
It is necessary to replace the half axle gear thrust plate if the
clearance is beyond the previous range, at the same time ensure the
thrust plate in left and right side has the same thickness.
e. Check the clearance between the half axle gear thrust plate and
differential housing.
special tools
