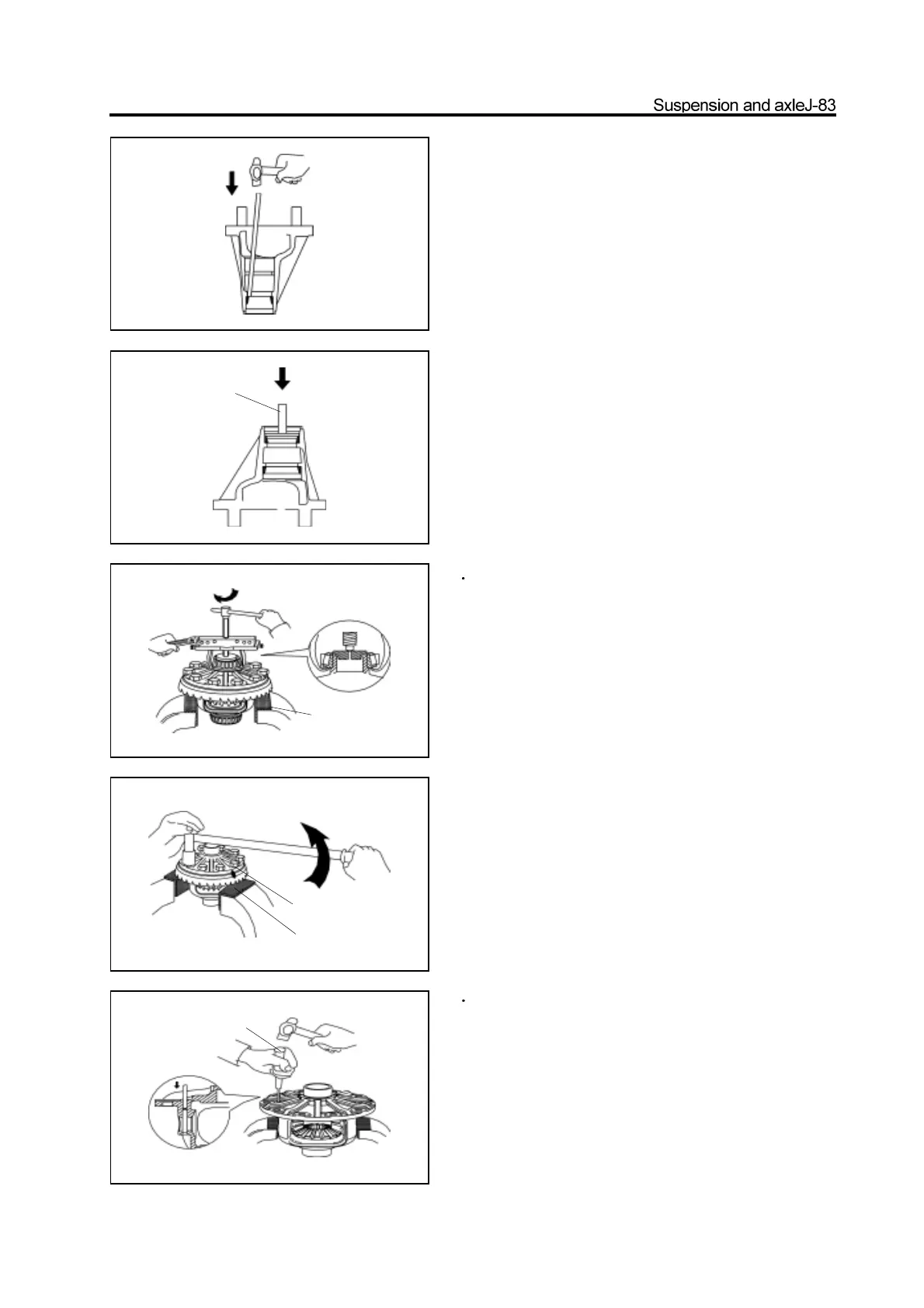

3. Replace the small bearing of drive bevel gear.
a. Use the brass rod and hand hammer to knock down the small
bearing outer race of drive bevel gear.
b. Use the special tools to press in the new bearing outer race.
c. Replace it by the new bearing inner race when installs the
small bearing..
4 Remove two side bearing inner races from the
differential housing.
a Use the special tools to remove the side bearing inner race on
the side of differential assembly with bolt.
b. It should pay attention to does not damage the driven bevel
gear when use the vice for clamping to remove the bearing
inner race on another side.
5. Use the wrench to remove the bolt fastened the
driven bevel gear
Caution: It should make the assembly mark on the
driven bevel gear and differential housing before
disassembly.
6
Disassembly of differential assembly
a. Use the hand hammer and special tools to knock out the pin
after remove the driven bevel gear.
special tools
rubber pad
assembly mark
rubber pad
special tools
