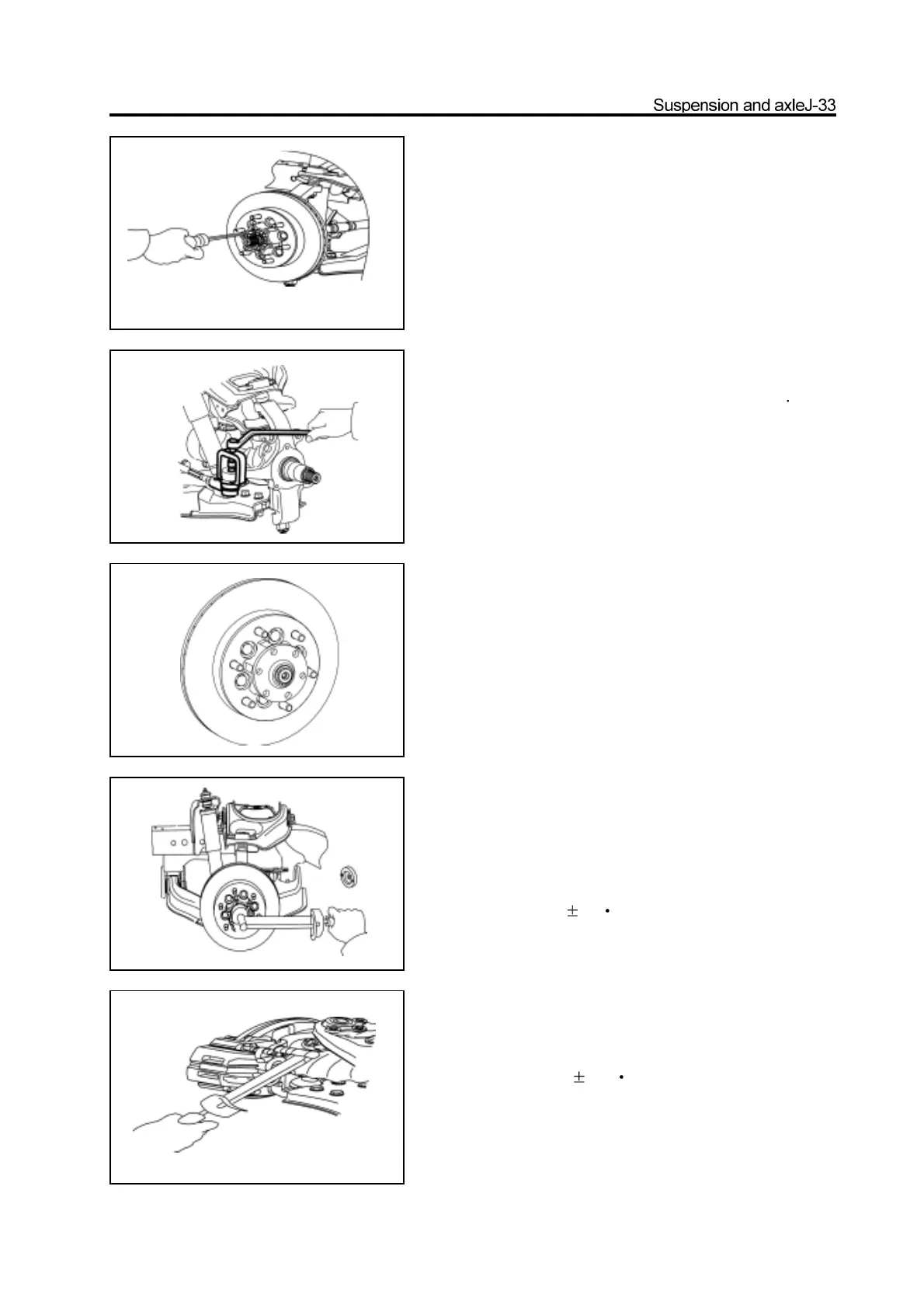

6. Install the lock washer
Install the lock washer with the surface with counterbore outwardly
and fix it on the lock nut by screw.
Remarks: If the screw installation hole on the lock washer can not
align with the screw hole on the lock nut, then it can remove the
lock washer and adjust he lock nut slightly (rotate in the direction
of Min. adjusting range ); then install the lock washer.
7. Recheck the pre-applied load
Use the spring tension meter to recheck the pre-applied load
Pre-applied load (for starting): 28-56N
If the pre-applied load does not meet the specified value, it must
remove the lock washer and adjust it by the adjusting nut.
8. Install the ring flange
a. Install the ring flange on the hub.
b. Install the adjusting washer.
c. Install the circlip.
9. Install the hub cap
a. Coat the screw of the inner hexagon bolt with the screw lock
sealant.
b. Use the inner hexagon bolt to fix the hub cap and ring flange on
the hub; tighten the bolt to the specified torque.
Tightening force: 78
5N m
10. Install the disc brake
Install the disc brake on the steering knuckle; tighten the bolt to the
specified torque.
Tightening force: 140 10N m
