Safety airbag-27
b. Clock spring test (figure 8.5,figure 8.6)
Check the following items and replace the clock spring with anything abnormal (even it is quite tiny) with a new one
Whether the joint and protection tube are broken and the terminal is deformed.
Whether the shield is damaged.
Check the connection between clock spring’s upper joint terminal and it’s corresponding bottom terminal.
Plug in a thin probe from the 3# joint of clock spring.
Caution
Do not directly plug in the probe from the bottom of the joint.

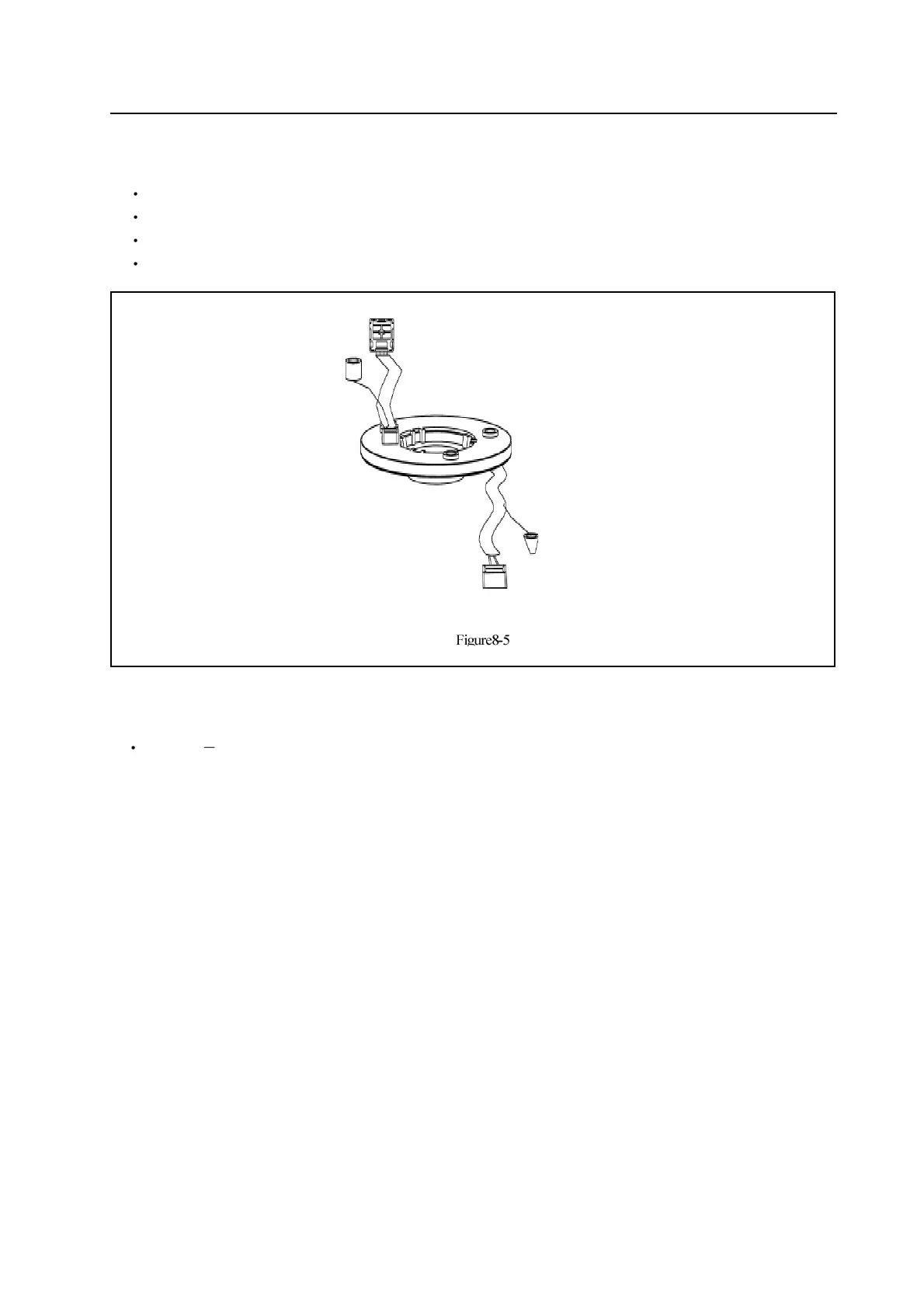

Figure 8 5 As showed in Figure 8.5,Plug a thin probe into the current tester to check the connection of the terminal.
