Safety airbag-26
Do the troubleshooting if the alarm lamp re-illuminates after its extinguishments following the 6-second-flashing (or it keeps
illuminating from the very beginning)
10. Test
a. Driver’s side airbag module test (Figure8-3)
Check the following items and replace the corresponding safety airbag module part with anything abnormal with a new one.
Abandon the safety airbag’s old parts after its release according to the instructed procedure.
Caution
Do not jam the clock spring wiring harness during the steering wheel and safety airbag module assembly installation.
After the installation, rotate the steering wheel to left and right positions as enough as possible to confirm whether something
abnormal is with it.
d. Post-installation test.
lightly rotate the steering wheel to the left and right to confirm whether something abnormal and noises will arise.(Driver’s side
safety airbag module, clock spring)
Place the ignition switch in ON place.
SRS alarm lamp flashes in 6 seconds and then extinguishes.
Caution
If without the clock spring central involution, the steering wheel will not be able to rotate at midway, or the clock spring
circuit will be damaged so that jeopardize SRS safety airbag’s normal activities.
The spacer must be removed after replacing a clock spring with a new one, otherwise it will damage the clock spring.
c. Steering wheel and safety airbag module assembly installation.
Install the steering wheel and safety airbag module assembly after clock spring’s central involution.

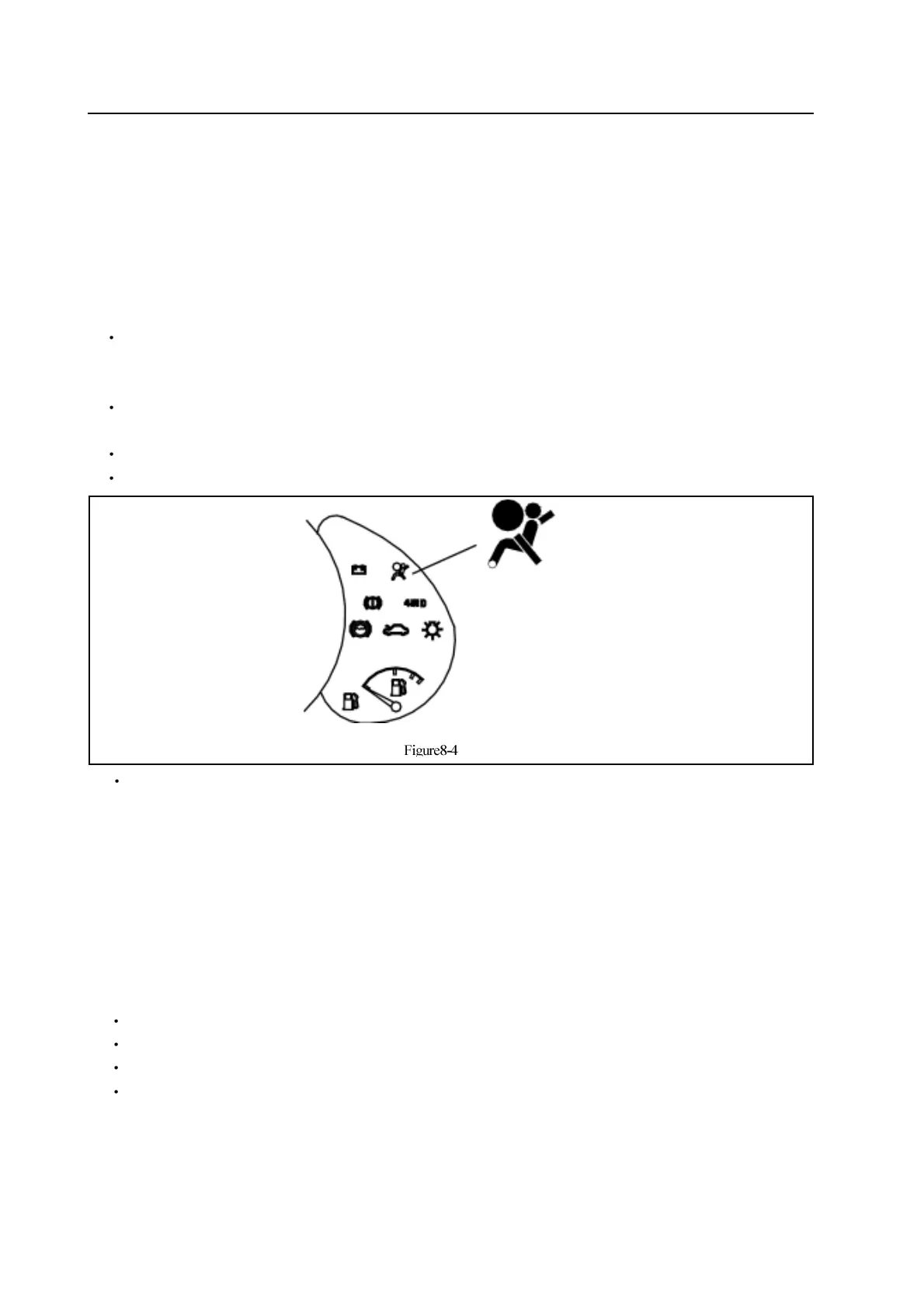

safety airbag system failure alarm lamp
Caution
The safety airbag module (squib) circuit resistance can even not be tested by the designated tester.
When testing the resistance with an experimental instrument, sometimes the improper release will be caused by the
static interference because of the current in explosion pipe and cause some major damaging accidents.
Whether depression, crack or deformation is with the shroud.
Whether the joint is broken and the terminal is deformed.
Whether depression, crack or deformation is with the gas generator shield.
Safety airbag module. Installation status.
Caution
Replace the safety airbag with depression, crack or deformation with a new one. Its old parts must be abandoned after
its release.
