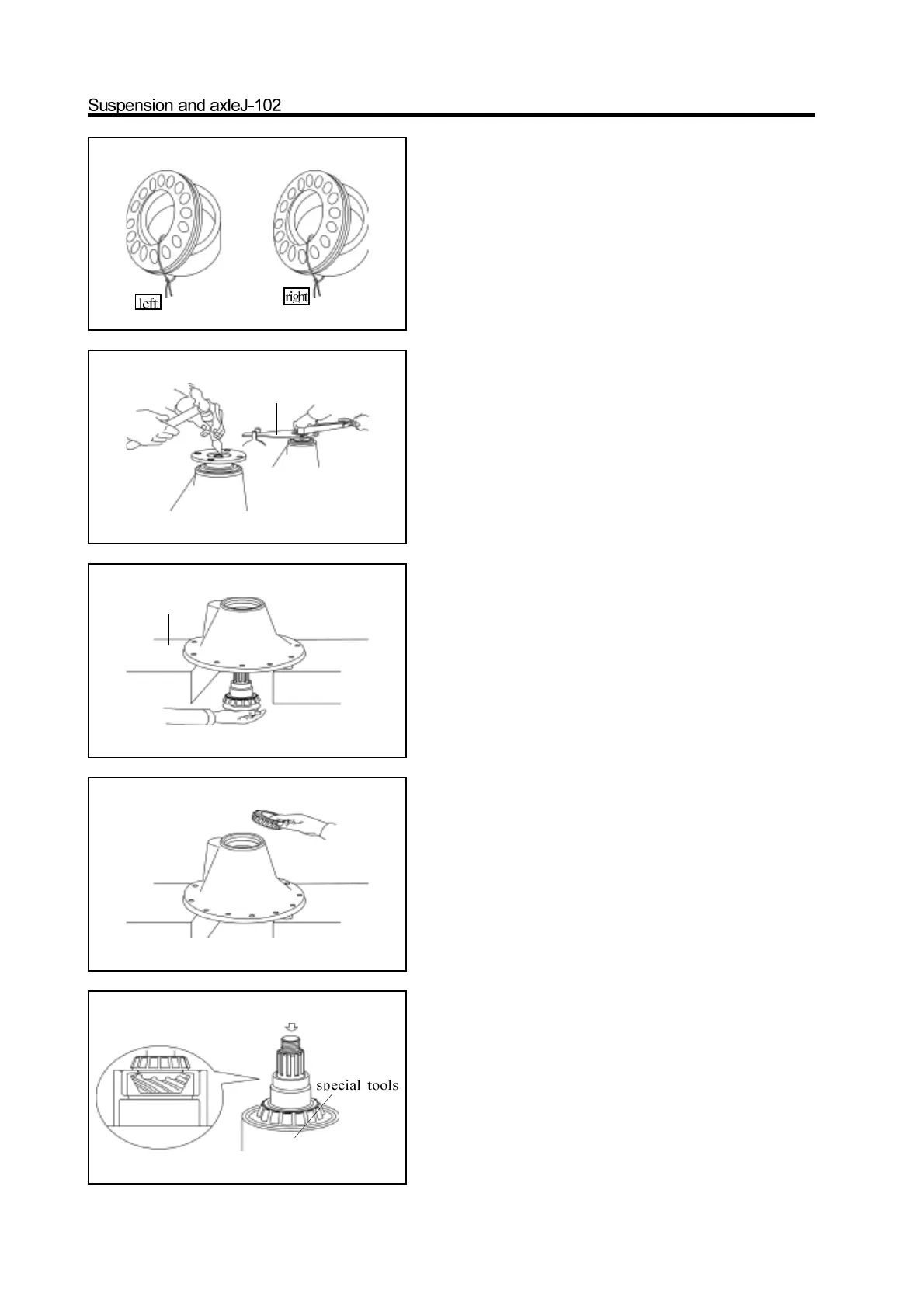

Remarks: Mark the label on the removed components to indi-
cate the position of reassembly.
7. Remove the flange and dustproof cover assembly
a.Use the hammer and chisel to loose the riveted part of nut.
b.Use the special tools to clamps the flange; then remove the nut.
Caution: The used nut can not be used any more.
c.Remove the flange and dustproof cover assembly.
8. Remove the oil seal
Use the tools to pry out the oil seal.
9. Remove the drive bevel gear and spacer
Remove the drive bevel gear, bearing and spacer from the reducer
housing.
10. Remove the oil baffle disc and front bearing inner
race
11. Replace the rear bearing of drive bevel gear
a. Use the press machine and special tools to pull out the rear
bearing from the drive bevel gear.
special tools
special tools
