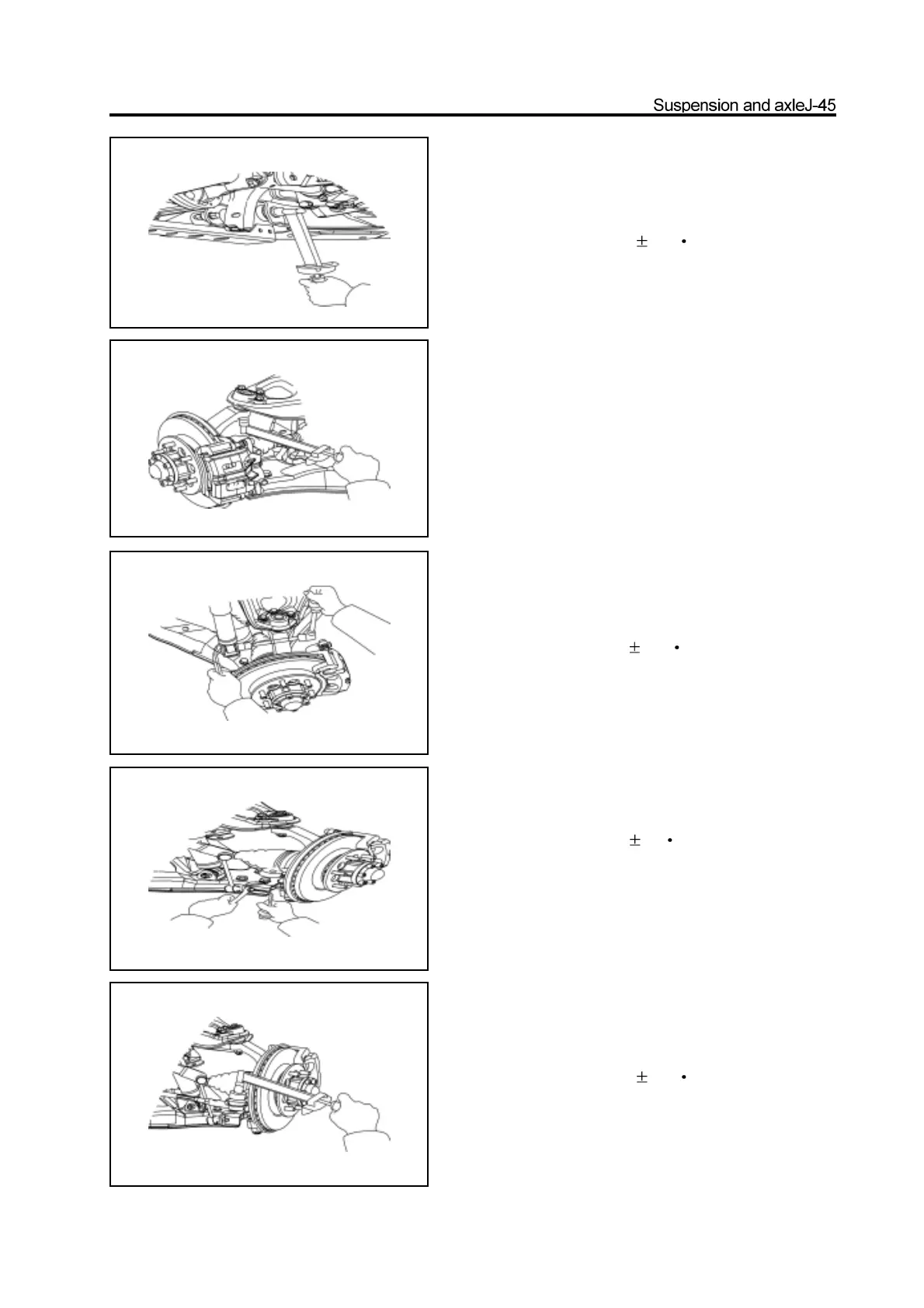

Installation of lower suspension arm
1. Installation of lower suspension arm
a. Install the rear shaft of lower arm and tighten the screw to
the specified torque.
Tightening force: 290 25N m
b. Install the front shaft of lower arm and pretighten the nut.
2. Installation of front hub and steering knuckle
assembly
(Refer to section “Front Hub andSteeringKnuckle”)
3. Install the vibration damper on the lower suspen
sion arm Install the vibration damper on the
lower suspension arm bracket.
Tightening force: 90 10N m
4. Connect the stabi lizer barto the lower susp
ension arm.
Tightening force: 63 5N m
5. Connect the steering cross rod to the steering
knuckle arm
a. Connect the steering cross rod to the steering knuckle arm.
Tightening force: 120
10N m
b. Install the new split pin.
Remarks: It should align the notch of nut with the pinhole
when install the split pin; the nut can be tightened but not
loosed during the alignment.
