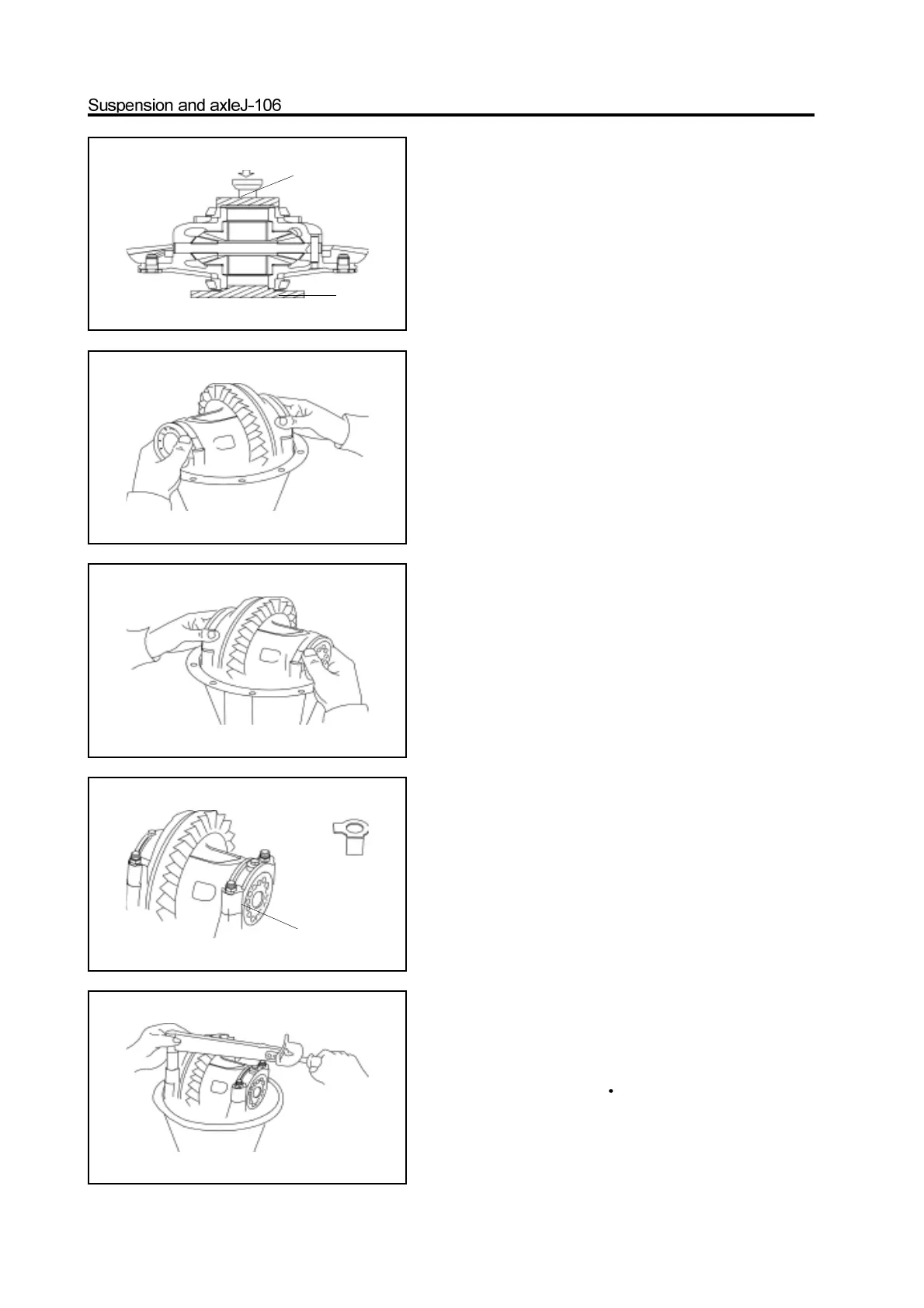

9. Install the differential side bearing by press.
Use the press machine and special tools to install the side bearing
on the differential housing by press.
10. Install the differential assembly
a.Remove the bearing gland. Do not mix the left up with right.
b.Install the differential assembly in the reducer housing.
11.Install the adjusting ring
Use the adjusting ring to press the bearing outer race in position;
tighten it properly. Adjust the clearance between the drive and
driven gear to the proper dimension.
12. Install the bearing gland
a. Align the assembly mark on the bearing cover with that on re
ducer housing; Press down the press cover by hand.
b. Install the lock washer with double ears and nut; tighten the
hexagon nut by pneumatic wrench properly.
13. Adjust the engagement clearance between the drive
and driven gear.
a. Use the torque wrench to tighten four bolts on bearing cover by
torque wrench.
Tightening force: 78-115N m
special tools
special tools
assembly mark
