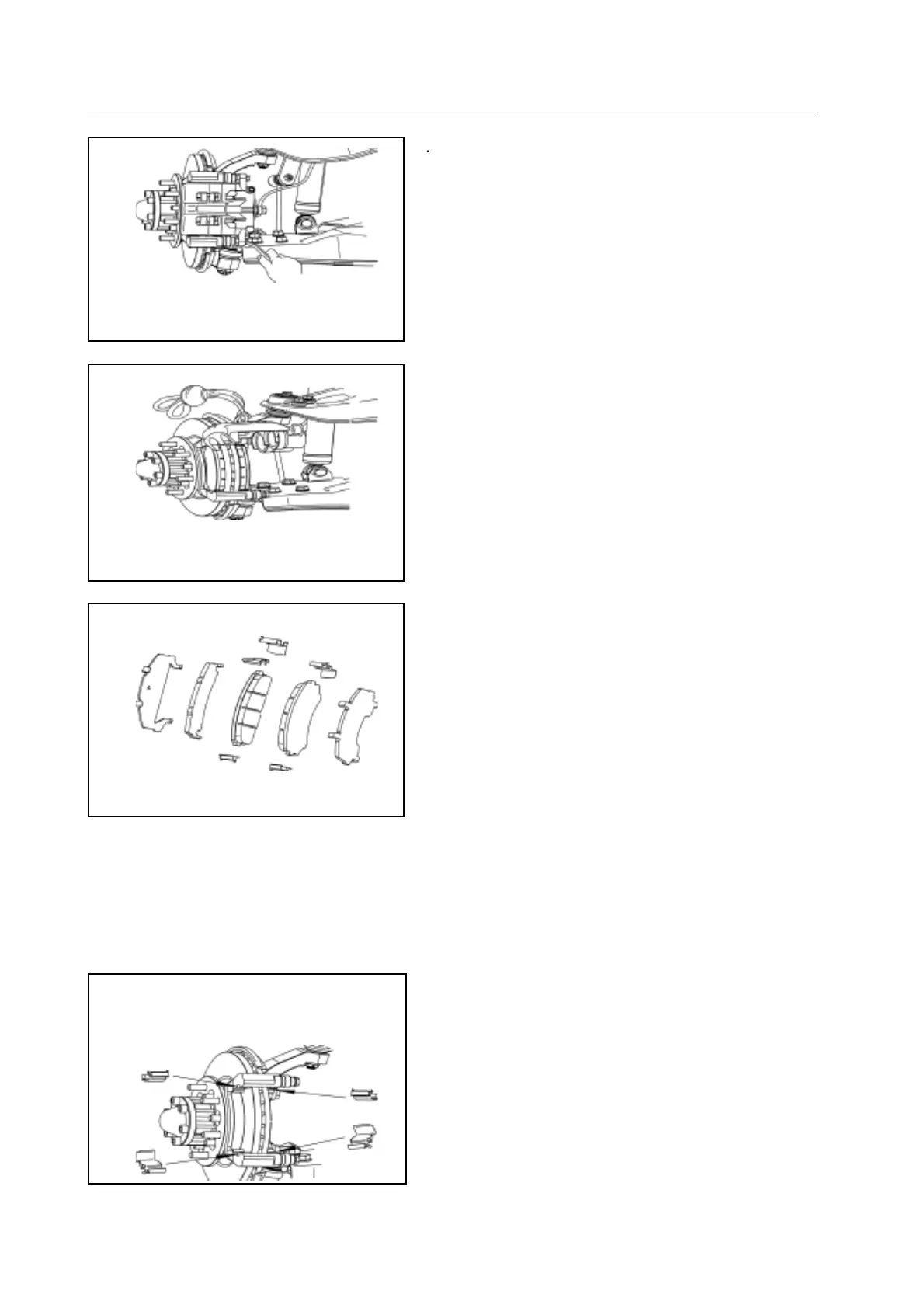

Brake-10
3 Lift the main body of brake caliper.
a. Remove the hexagon flange bolt.
b. Lift the brake pump and hang it by rope to protect the brake oil
pipe.
Remarks: Do not screw off the brake oil pipe and bleed plug.
4. Remove the following components
a. Two pieces of brake block
b. One piece of silencing plate
c. Two piece of silencing plate combination
d. One wear limitation alarm plate of brake block
e. Four brake block circlip plates
5. Measure the thickness of brake disc
(Refer to step 2 of “ Inspection of component of front brake” )
6. Measure the circular runout of brake disc.
(Refer to step 3 of “Inspection of component of front brake”)
7. Install the brake block circlip plate
