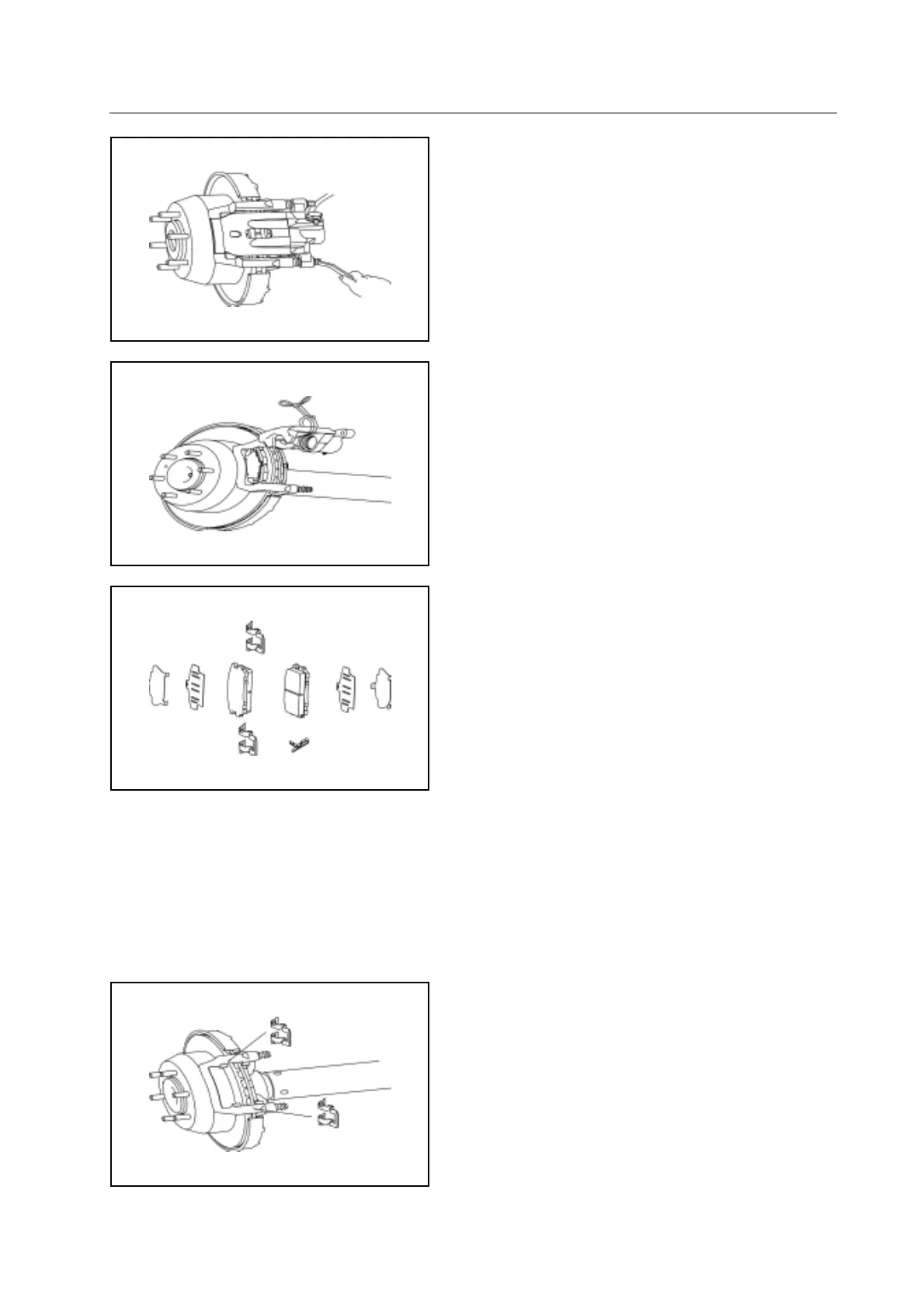

3. Uplift the brake pump
a. Remove the location pin.
b. Uplift the brake pump and hang it with a rope to protect the brake
oil pipe.
Remarks: do not remove the brake oil pipe.
4. Remove the following components:
a. Two brake blocks
b. Two silencing plates
c. Two silencing plate combinations
d. One brake block bush wearing indication plate
e. Two brake block circlips
5. Measuring the depth of brake discs
(refer to the step 2 of measuring the components of rear brake)
6. Measuring the brake disc circular runout
(Refer to step 3 of measuring the components of rear brake)
7. Install the brake block Circlip
