Brake-23

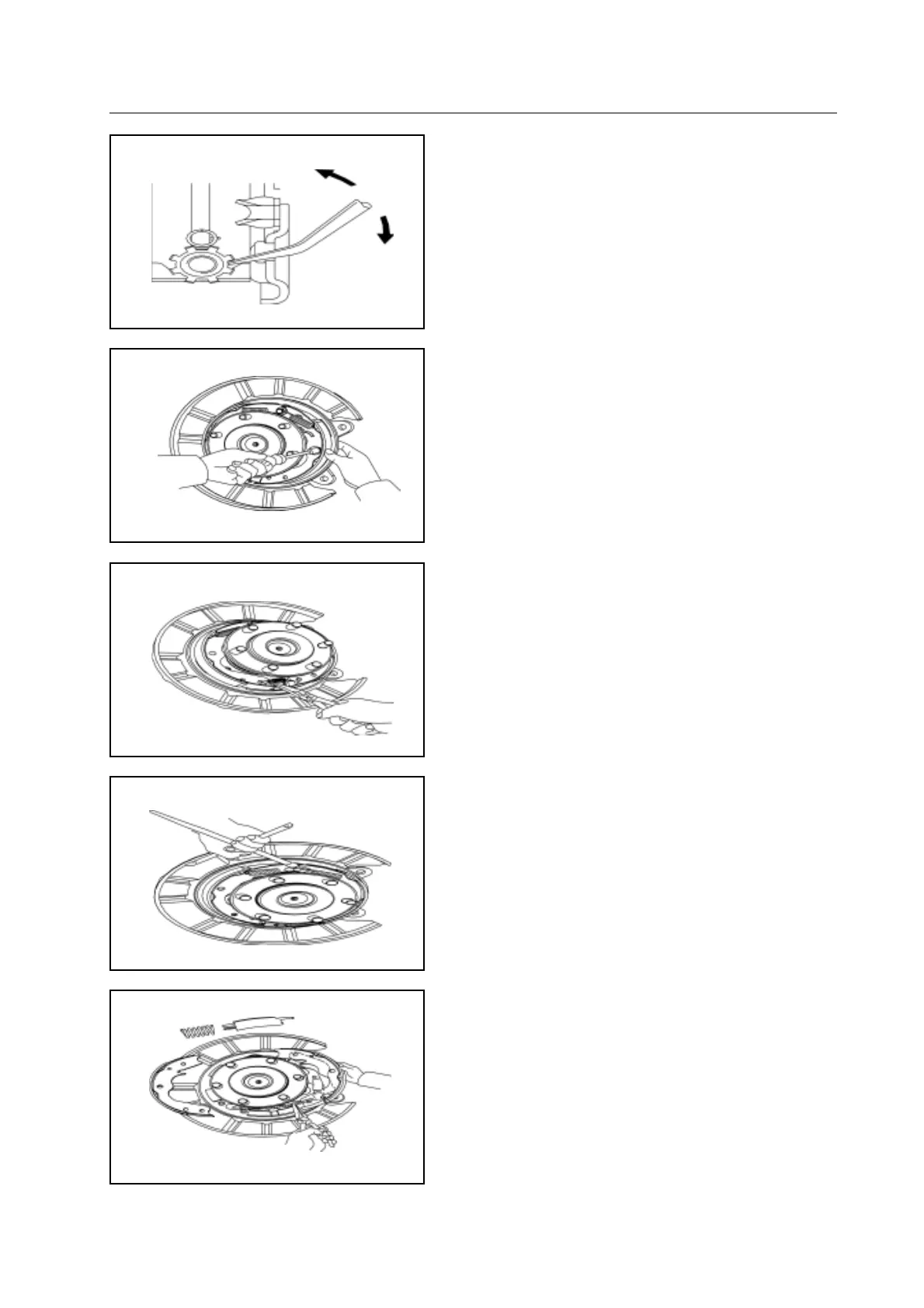

1. Remove the rear wheel
2. Remove the rear brake caliper
3. Remove the rear brake disc
Remarks: If the brake disc is difficult to remove, remove the
adjust ment spout plug, insert the screwdriver into the adjust
ment spout of the rear brake bedplate, Release the brake shoe
adjustment device through twisting the clearance-adjusting gear.
4. Remove the shoe plate, pull-out the piece spring , pull-out piece
spring seat, pull-out piece spring draw bar
5. Remove the lower tension spring and clearance-adjusting device
Use clipper to remove the extension spring, release the clearance
adjusting device and remove it.
6. Remove the two upper extension springs
7. Remove the brake shoe
a. Remove the brake shoe, baffle, baffle return spring.
b. Remove the band brake stay wire from the stay and brake pulling
arm.
