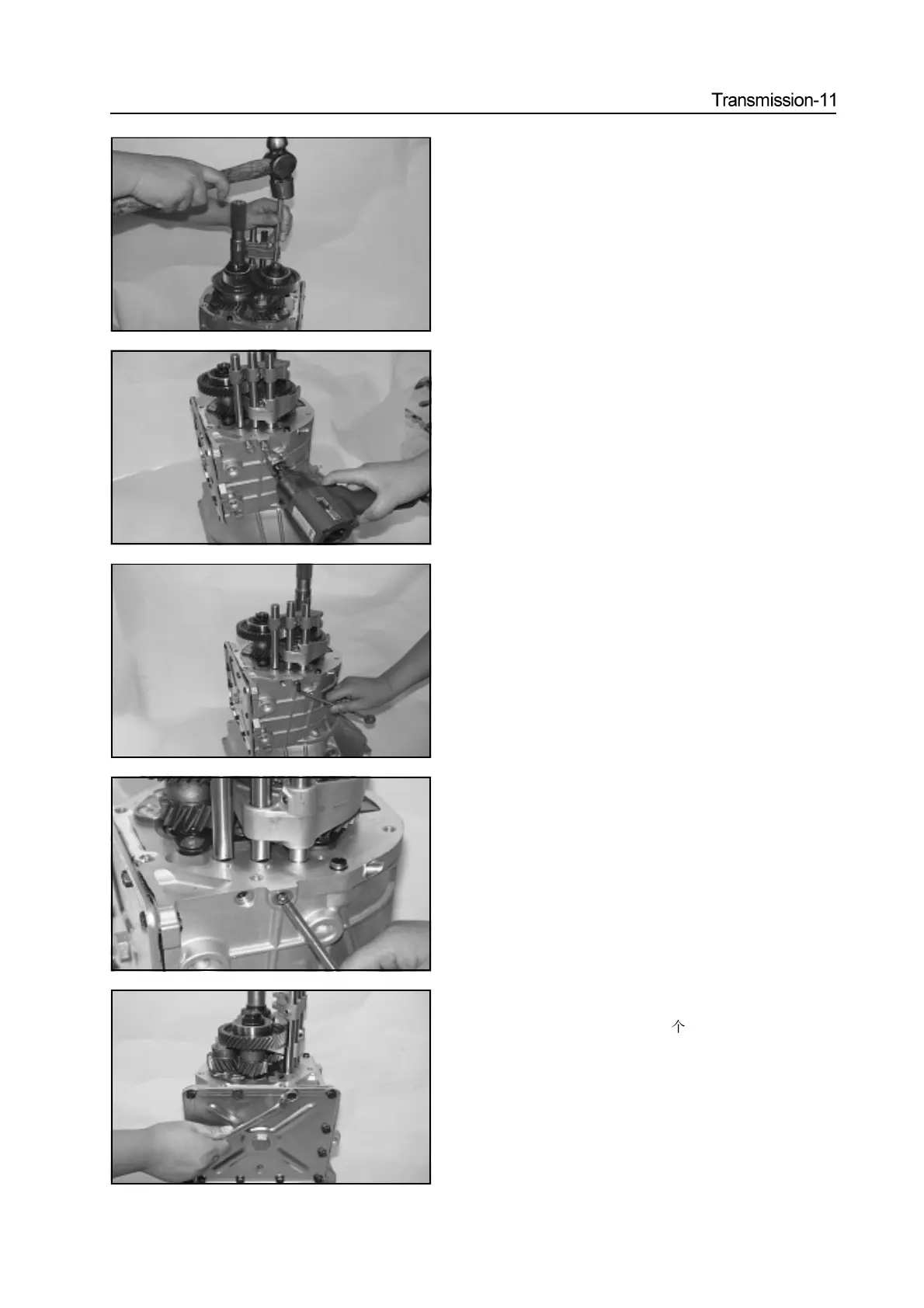

14. Use the opener to pry out the riveted place of lock nut of
intermedi ate shaft
15.Remove the self-locking screw plug, spring, steel ball
a. Use the special tools to remove 3 locking screw plugs M10×
1.25×19
Caution: The tightening torque is 14-19N·m when install the
locking screw plug M10×1.25×19.
b. Use the magnetic rod to remove 3 springs
c. Use the magnetic rod to remove 3 steel balls
Caution: When install 12 bolts M8×16, the tightening torque
is 15-20N·m
16. Remove the lower cover plate assembly
a. Use the wrench to remove the 12
bolt M8×16
To Next Page
