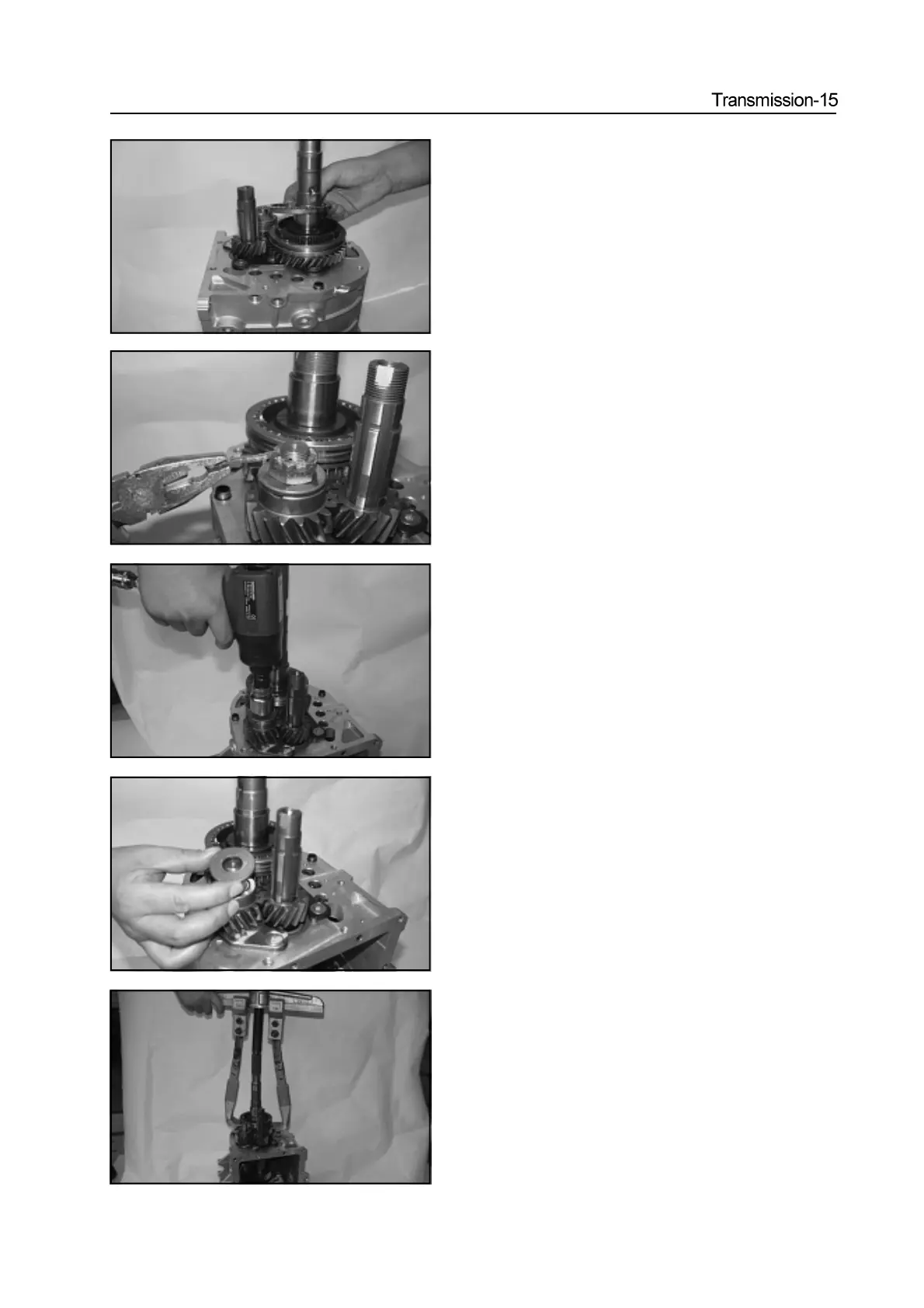

27. Use the pliers to remove the split pin on the reverse shaft lock
nut.
28. Use the special tools to remove the reverse lock nut
Caution: when install the reverse lock nut, the tightening torque
is within 20-60N·m
29. Remove the thrust plate
30. Remove the 5th/reverse -Gear synchronizer assembly
a. Use the special tools to remove the 5th/reverse -Gear synchronizer
assembly
26. Remove the synchronizer gear ring
Caution: When install the synchronizer gear, it should use the
plug gage to test the synchronizer gear ring axial clearance, en-
sure the axial clearance is within 1.25-1.65mm
