Transmission-37

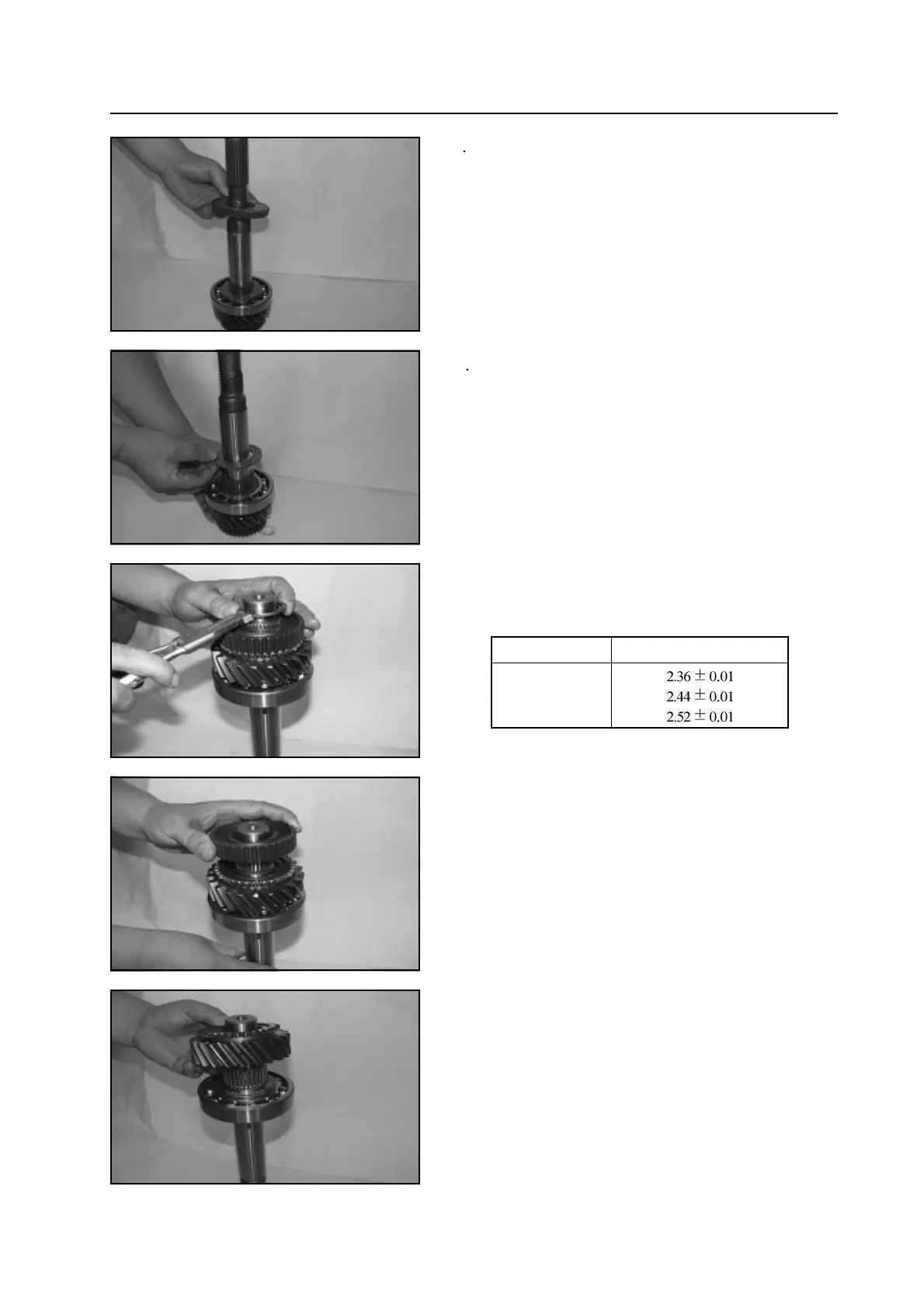

j Remove the gear hub
k
Remove the spacing plate
l. Use the circlip pliers to remove the circlip.
Caution: It should select the circlip for shaft according the angle
when install it.
m.Remove the high and low geared sleeve and gear hub
n. Remove the low-speed driven gear, needle bearing and rear output
shaft
Caution: When install the low-speed driven gear, it should use the
plug gage to measure the axial clearance of low-speed driven gear
axial clearance to ensure the axial clearance is 0.17-0.284 mm
Mark
Thickness (mm)
White
Blue
Green
