H3C S5120-EI Series User Manual

1-7

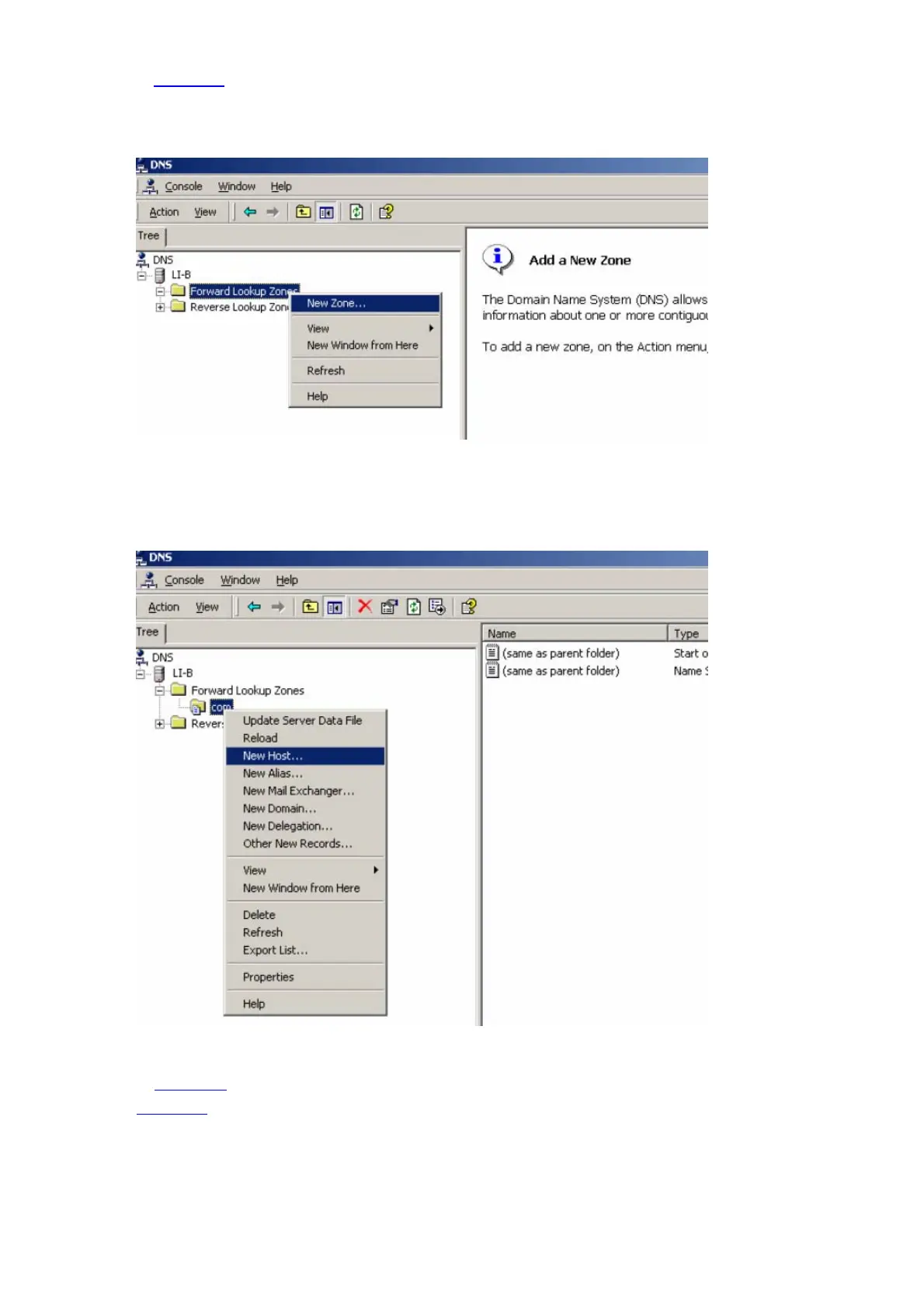

In Figure 1-5, right click Forward Lookup Zones, select New zone, and then follow the instructions to
create a new zone named com.
Figure 1-5 Create a zone
# Create a mapping between the host name and IP address.
Figure 1-6 Add a host
In
Figure 1-6, right click zone com, and then select New Host to bring up a dialog box as shown in
Figure 1-7. Enter host name host and IP address 3.1.1.1.
