6.5 Starting a Test
______________________________________________________________________________________________
6.5.2 Screening in "TEST" State

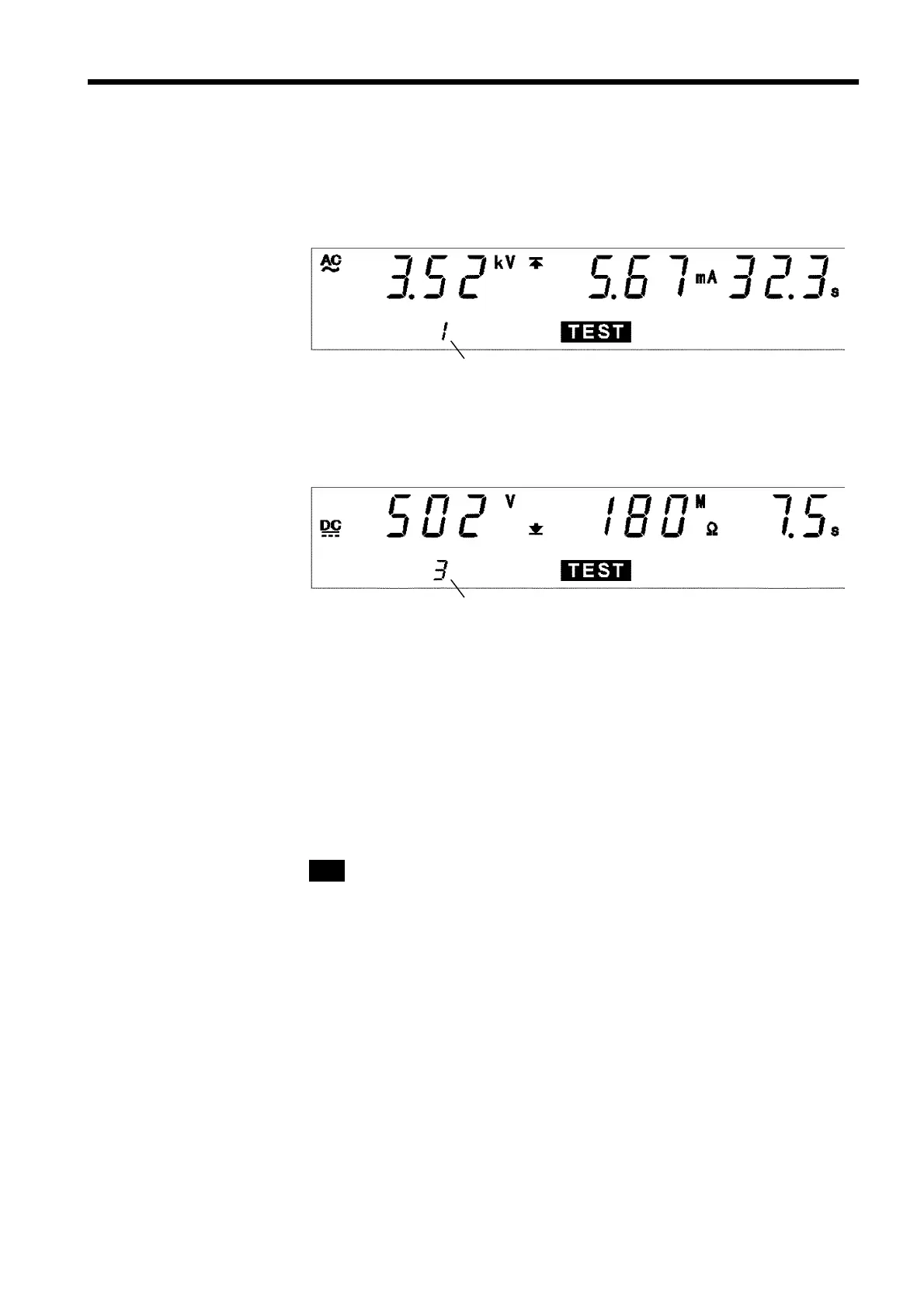

Step number
Step number
(1) When performing a withstand-voltage test:
Similar to the withstand-voltage mode TEST state. (See Section 3.4.2)
(2) When performing an insulation-resistance test:
Similar to the insulation-resistance mode TEST state. (See Section 4.4.2)
Danger lamp
Indicates that a voltage is being output. The lamp stays on during the test.
This lamp remains lit even after completion of the test, if a voltage higher
than the safety voltage (approximately AC 0.03 kV (AC withstand-voltage
test) or approximately DC 60 V (DC withstand-voltage test or insulation-
resistance test) has flowed between output terminals.
External I/O
The timing when the
TEST
―――――――
signal is turned ON is the same as the timing
when
TEST
on the fluorescent indicator lights up (or flashes). The timing
when the
H.V.ON
――――――――――
signal is turned on is the same as when the
DANGER
lamp
lights up.
Each time one step is completed, the STEP-END
―――――――――――
signal turns ON (ON time:
0.1 s).
Analog voltmeter
Indicates the voltage value being output.
Optional Functions
Setting can be performed so that the
TEST
――――――――
signal will be OFF while TEST
flashes. See Section 7.15.
