7.13 PC Interface
______________________________________________________________________________________________
0
：
RS-232C (PC, 9600 bps)
1
：
RS-232C (PC, 19200 bps)
2
：
GP-IB (PC)
NOTE
When both RS-232C and GP-IB are connected, signals without settings are ignored.
7.13 PC Interface
This function enables selection of the PC interface to be used (at the rear of
the unit). Make a selection from among RS-232C with a transmission speed
of 9,600 bps, RS-232C with a transmission speed of 19,200 bps, and GP-IB.
1. Press
SHIFT
+
STOP
keys while in READY state to display the Optional
function setting screen.
2. Move the flashing cursor to the position of
P01
using the
/
keys, and
display
P02
(p. 2) using the
/
keys.

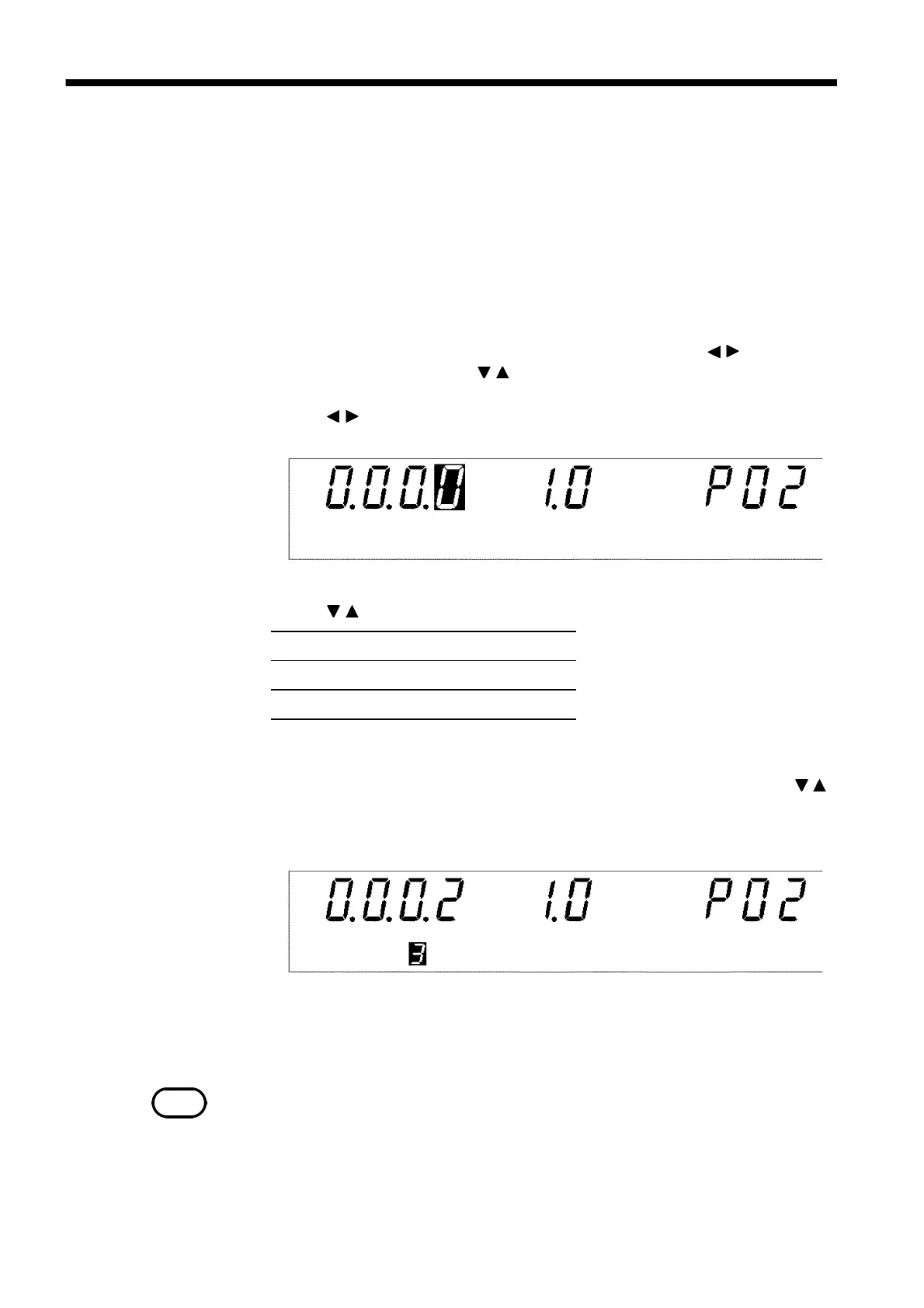

3. Use the
/
keys to move the flashing cursor to the position shown in the
figure.
4. Use the
/
keys to set a value at the flashing cursor location.
5. When [2: GP-IB (PC)] is selected, move the flashing cursor to the
position illustrated in the figure, and set the GP-IB address using the
/
keys.
0 ~ 30 (Initial value: 3)
Setting range:
0to30
(Initial setting: 3)
6. To complete the optional settings, press
SHIFT
+
STOP
keys. The unit
reverts to the READY state.
