3.3 "SETTING" State
______________________________________________________________________________________________

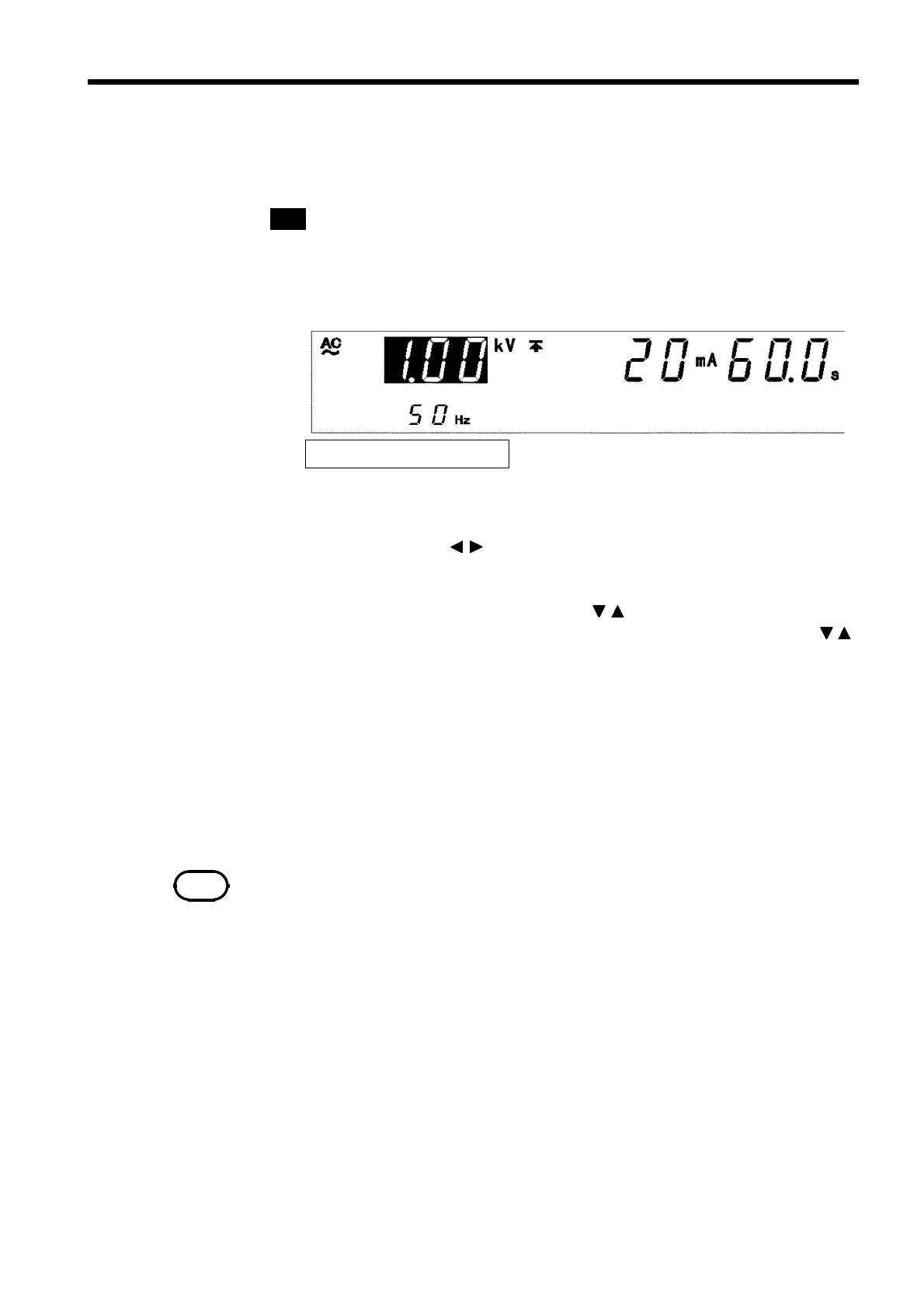

3.3.1 Setting the Test Voltage Value
Test-voltage value: 1.00 kV
NOTE
Note that the unit does not start test if the test-voltage value is greater than the
output-voltage restricting value. See Section 7.9.
Set a test-voltage value. The test will not start if the load current value is
large and the output voltage does not reach
±
5% of the set test voltage.
(
TEST
flashes.) If the output voltage fails to reach the test voltage within
approximately 5 seconds after completion of the ramp-up time, the unit will
change to the FAIL state and the test will be terminated. Also, if the output
voltage deviates from test voltage and does not return to
±
1 dgt. of the set
value within 5 seconds, the test is terminated.
1. If no flashing cursor is displayed in the withstand-voltage mode READY
state, press either the / key to display the cursor in the test-voltage
value position.
2. Change the test-voltage value using the
/
keys. The value changes in
0.01 kV increments. To change the value by 0.10 kV, press
SHIFT
+
/
keys.
Settings may be made along a scale ranging from 0.20 to 5.00 kV.
3. To finalize the test settings, press the
STOP
key. The settings are
confirmed and the unit returns to the READY state.
Optional Function
The output voltage can be restricted to prevent accidents caused by improper
settings. (When the default is set to 5.00 kV.) (See Section 7.9)
