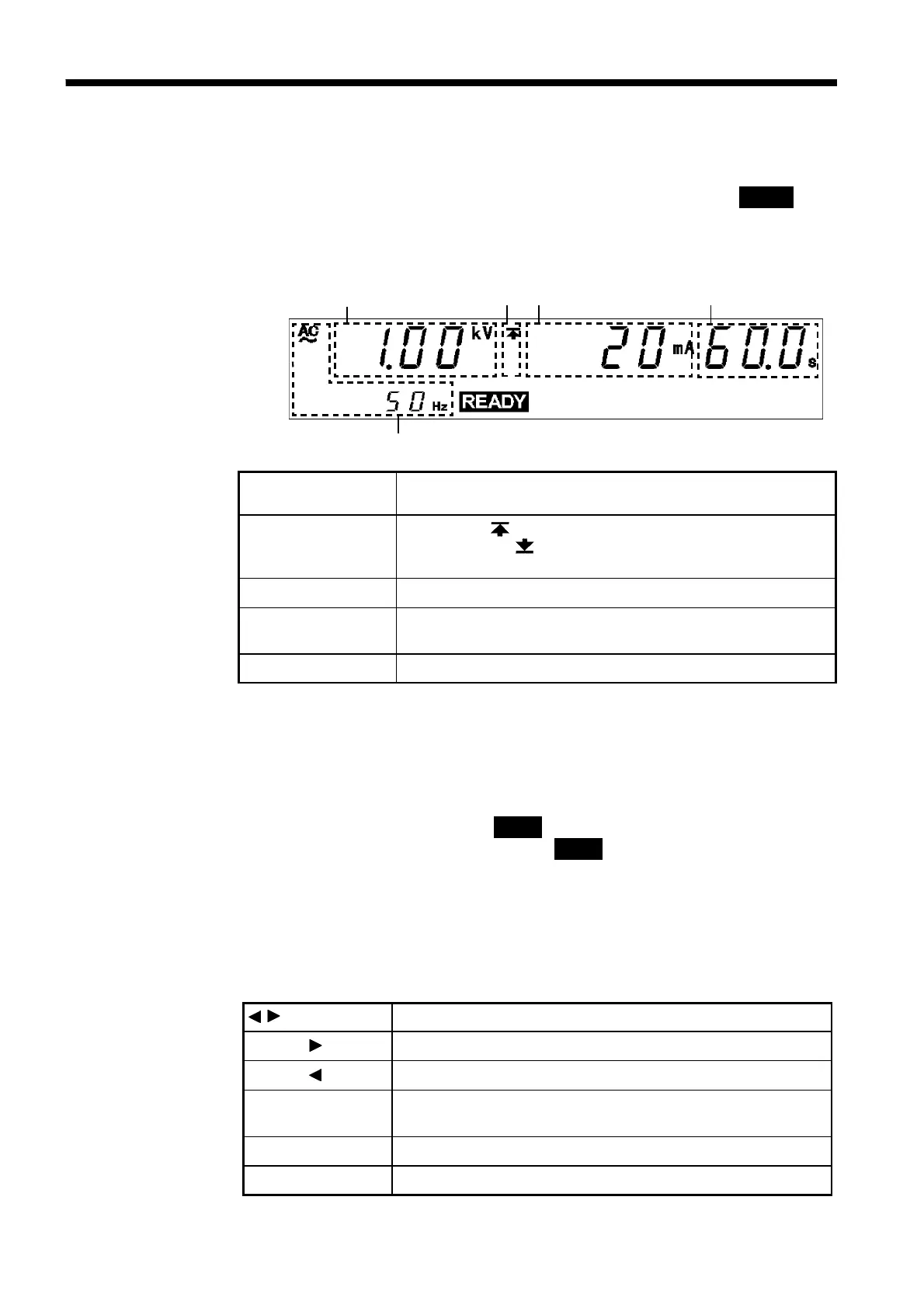

3.2 Displaying the "READY" State
______________________________________________________________________________________________
1 2 3
4
5
1 Test-voltage
value
Indicates the voltage value being output.
2 Upper-limit value
icon and Lower-
limit value icon
The symbol appears when the upper-limit value is set,
and the symbol
appears when the lower-limit value is
set.
3 Upper-limit value
Indicates Upper-limit value.
4 Test time
Indicates the preset test time. "
OFF
" is indicated when no
test-time setting has been made.
5 Test-voltage type
Indicates the test type (AC 50 Hz, AC 60 Hz or DC.)
/
Displays the SETTING state. (See Section 3.3)
SHIFT
＋
Displays the set data Save screen. (See Section 8.1)
SHIFT
＋
Displays the set data Load screen. (See Section 8.2)
SHIFT
＋
STOP
Displays the Optional functions setting screen.
(See Chapter 7)
START
Test Start (See Section 3.4)
LOCK
Key-lock function (See Section 3.2.1)
3.2 Displaying the "READY" State
In the READY state, the unit is always ready to start a test. The
READY
lamp remains lit to indicate the READY state.
Saving and loading for setting data and the setting of optional functions are
made following the READY state.
Danger lamp
Indicates that a voltage is being output. This lamp remains lit as long as a
voltage is being applied to the output terminal. It does not light up in the
READY state.
External I/O
The
READY
――――――――――
signal is ON when
READY
is lit on the fluorescent indicator.
The
READY
――――――――――
signal is turned OFF when
READY
is not lit.
Analog voltmeter
Indicates the voltage value being output. In the READY state, the value
remains at 0 kV.
