9.1 External I/O Terminal
______________________________________________________________________________________________
9.1.3 Example of Output Signal Connection
Output signal Open collector output (Pull-up resistance: 4.7 kΩ)
Maximum output
current
DC60 mA/1
HIGH level voltage
(HI)
Minimum : V
EXT
- 0.5 V
（
No load
）
LOW level voltage
(LO)
Maximum : 0.5 V (TYP.)

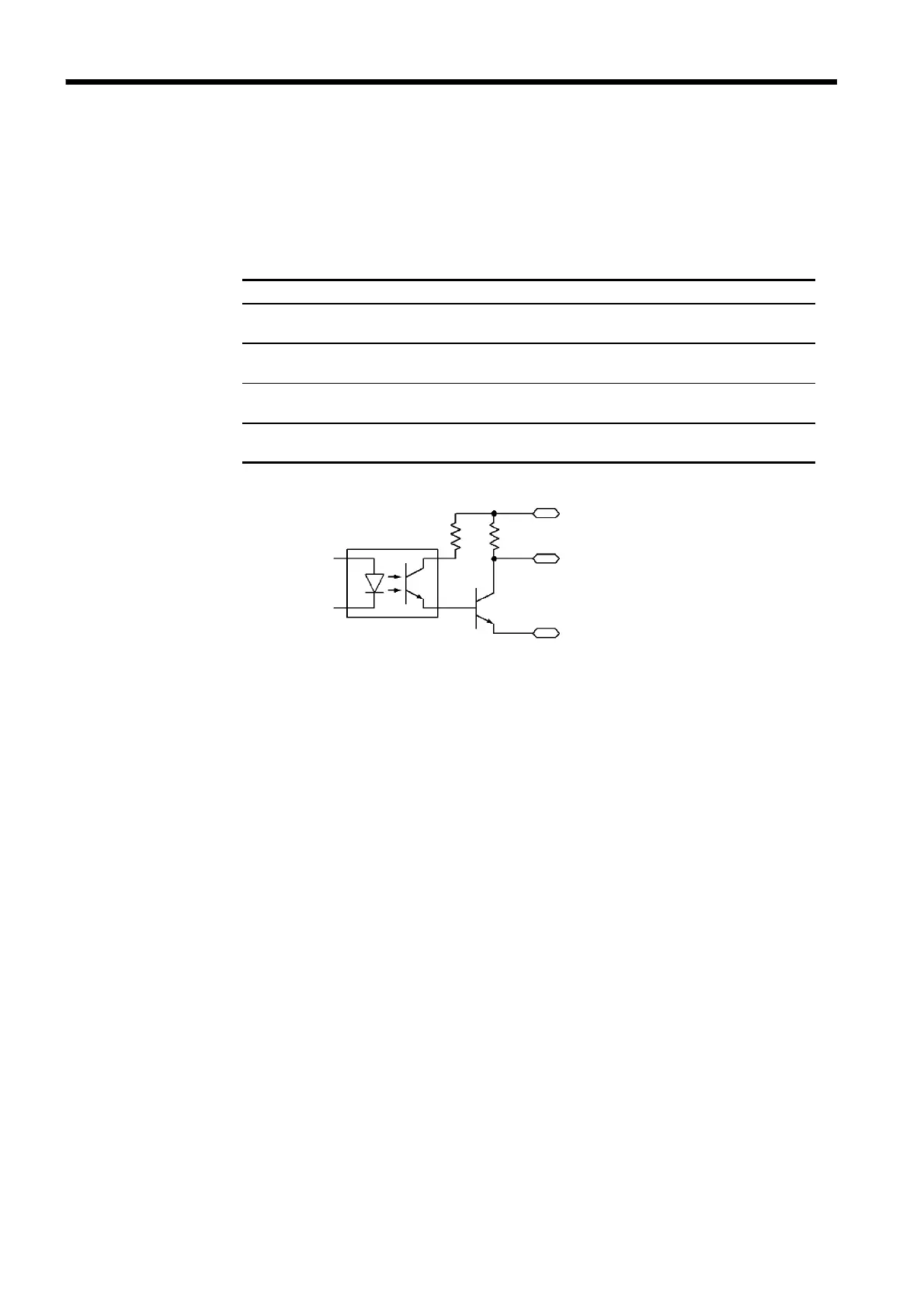

Output signals READY, U-FAIL, L-FAIL, PASS, TEST, H.V.ON,
W-MODE, I-MODE, W-FAIL, I-FAIL
Photocou
p
ler
External I/O Terminal
EXT.DCV
4.7 kΩ
EXT.COM
4.7 kΩ
The output signal becomes LOW level depending on the condition of the
unit. Prepare a connector that conforms to the External I/O Specifications.
See Section 9.1.6.
EXT I/O Output signals Specifications
