9.1 External I/O Terminal
______________________________________________________________________________________________

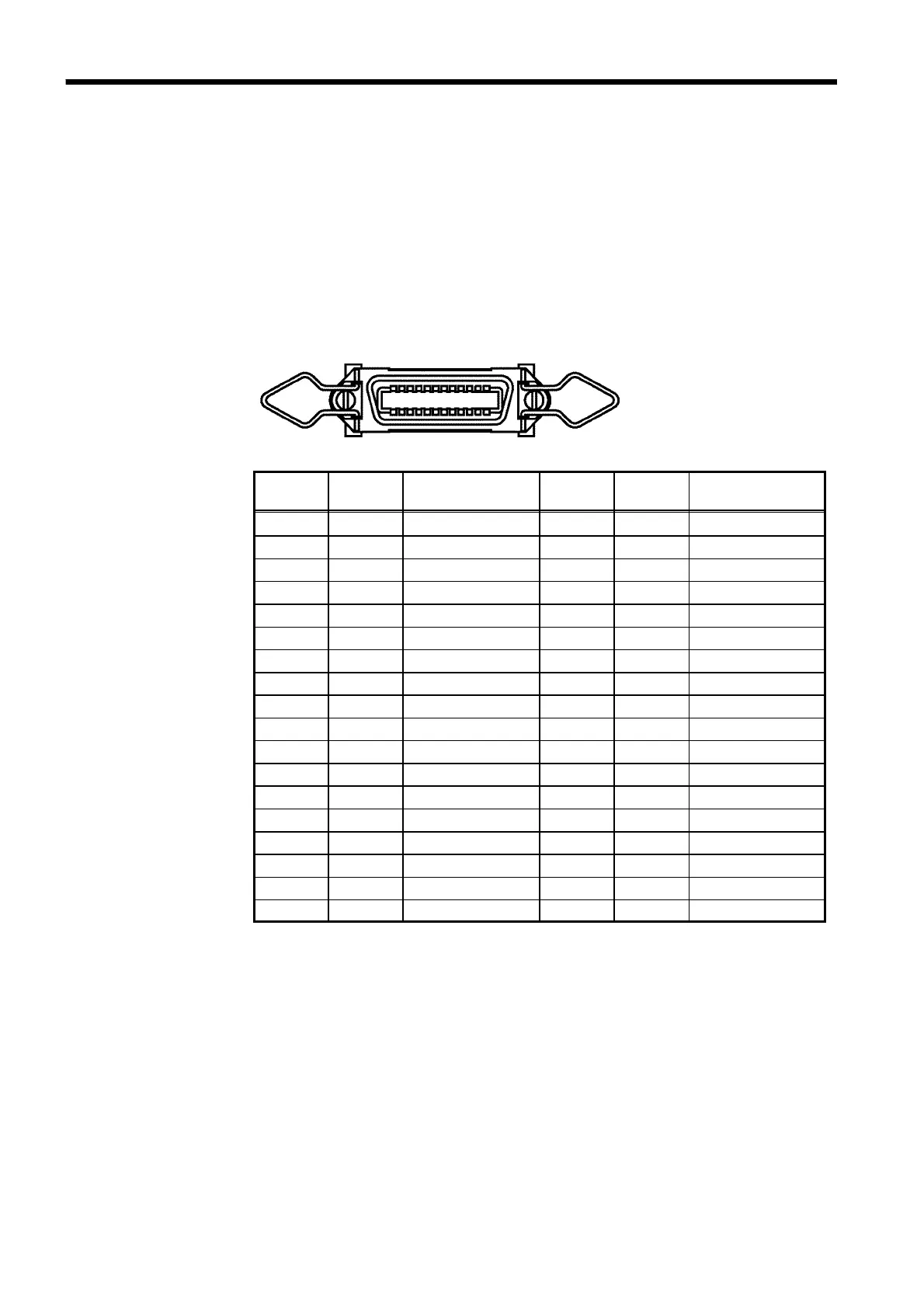

9.1.1 Signal Line
18
･･･
･･･
1
36
･･･
･･･
19
Pin
number
I/O Signal line name
Pin
number
I/O Signal line name
1 OUT
READY
―――――――
19 OUT
STEP-END
――――――――――
2 OUT
L-FAIL
―――――――
20 OUT
FILE-END
――――――――――
3 OUT
U-FAIL
―――――――
21 IN
FILE-E
―――――――
4 OUT
PASS
――――――
22 IN
FILE-0
―――――――
5 OUT
TEST
――――――
23 IN
FILE-1
―――――――
6 OUT
H.V.ON
――――――――
24 IN
FILE-2
―――――――
7 IN
EXT-E
――――――
25 IN
FILE-3
―――――――
8 IN
START
――――――
26 IN
FILE-4
―――――――
9 IN
STOP
――――――
27 OUT Not used
10 IN
INT.LOCK
――――――――――
28 OUT Not used
11 OUT
W-MODE
――――――――――
29 OUT Not used
12 OUT
I-MODE
―――――――――
30 OUT Not used
13 OUT
W-FAIL
――――――――
31 OUT Not used
14 OUT
I-FAIL
―――――――
32 OUT Not used
15 OUT ISO.GND 33 OUT ISO.DCV
16 OUT ISO.GND 34 OUT ISO.DCV
17 IN EXT.COM 35 IN EXT.DCV
18 IN EXT.COM 36 IN EXT.DCV
Use the following external I/O connectors or their equivalents:
(1) Compatible connector
DDK Ltd.'s 57-30360, 57E-30360, 57F-30360 and 57FE-30360
Hirose Electric's RC30-36P(50)
(2) External I/O connector pin numbering
DDK Ltd.'s 57RE-40360-730B (D29) (Connector of the 3153 main unit)
