Hioki 3153 - Screening in PASS State

101
_____________________________________________________________________________________________
6.6 PASS or FAIL Determination
______________________________________________________________________________________________

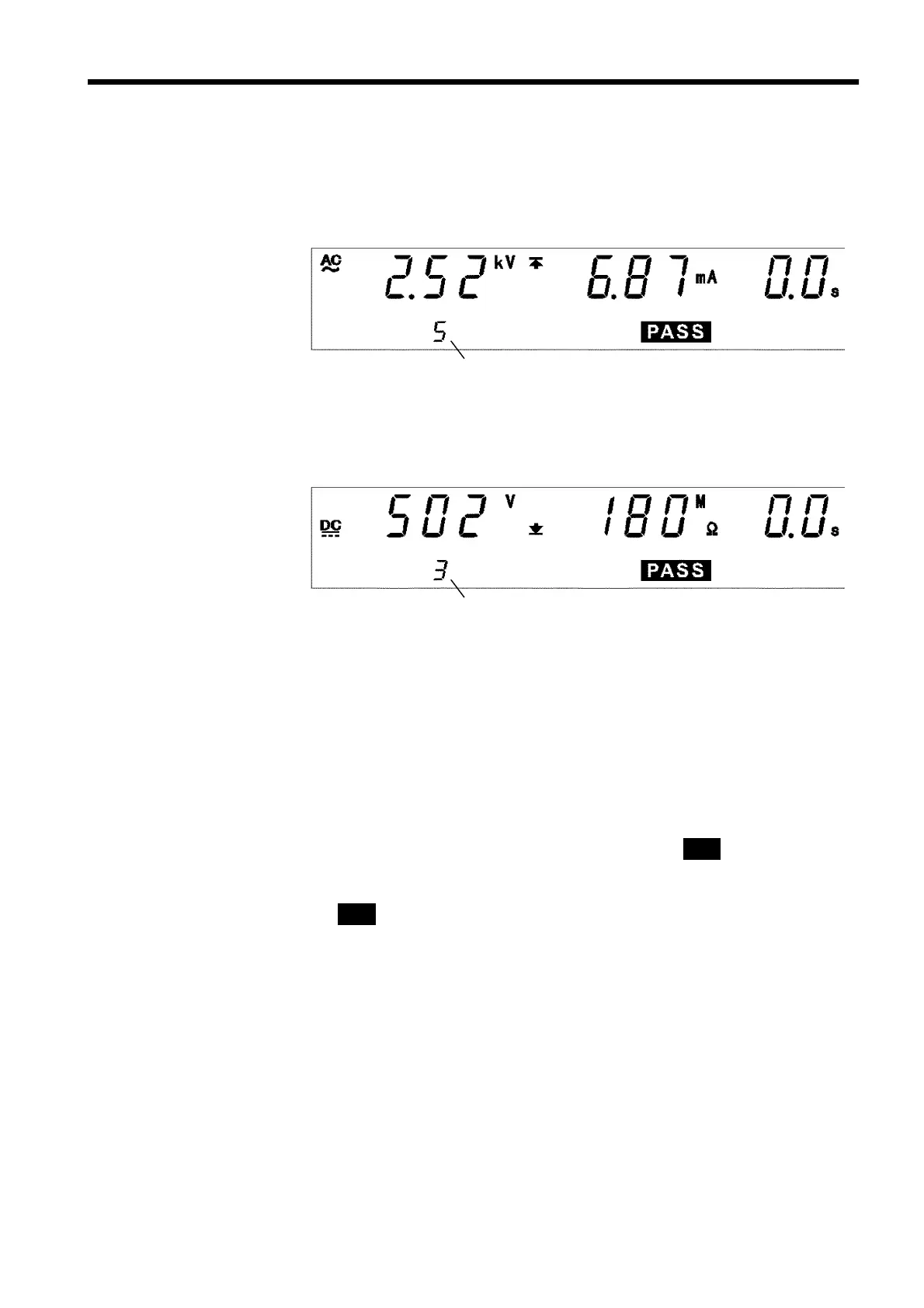

6.6.2 Screening in "PASS" State
Step number
Step number
(1) When the most recent test was a withstand-voltage test
Similar to the withstand-voltage mode PASS state. (See Section 3.5.2)
(2) When the most recent test was a insulation-resistance test
Similar to the insulation-resistance mode PASS state. (See Section 4.5.2)
Danger lamp
Indicates that a voltage is being output. The lamp stays on during the test.
The lamp will also light if a voltage exceeding the safety voltage
(approximately AC 0.03 kV (AC withstand-voltage test)) or approximately
DC 60 V (DC withstand-voltage test or insulation-resistance test) remains
between the output terminals after the test has been completed.
External I/O
The
PASS
――――――――
and
FILE-END
――――――――――――――
signal is turned ON when
PASS
on the
fluorescent indicator is lit. (
FILE-END
――――――――――――――
signal: 0.1 s) As long as the PASS
state is held, the
PASS
―――――――
signal remains ON. The
PASS
―――――――
signal is turned OFF
when the
PASS
light on the fluorescent indicator goes out.
If voltage remains in the output-voltage terminal following termination of a
test, the
H.V.ON
――――――――――
signal remains ON. When the
DANGER
lamp goes out,
H.V.ON
――――――――――
signal is immediately turned OFF.
Analog voltmeter
Indicates the voltage value being output. Even when values are held using
the "FAIL hold function," the value of the analog voltmeter is not held.
