Hioki 3153 - Example of Loading

137
_____________________________________________________________________________________________
8.2 Loading Preset Values
______________________________________________________________________________________________
8.2.2 Example of Loading
Test type: AC 60 Hz
Test-voltage value: 4.5 kV
Upper-limit value: 40 mA
Lower-limit value: 3 mA
Test time: 10.0 s
Ramp-up time: OFF
Ramp-down time: OFF
The following example shows how to load File No.3. The 3153 is in the
withstand-voltage mode READY state.

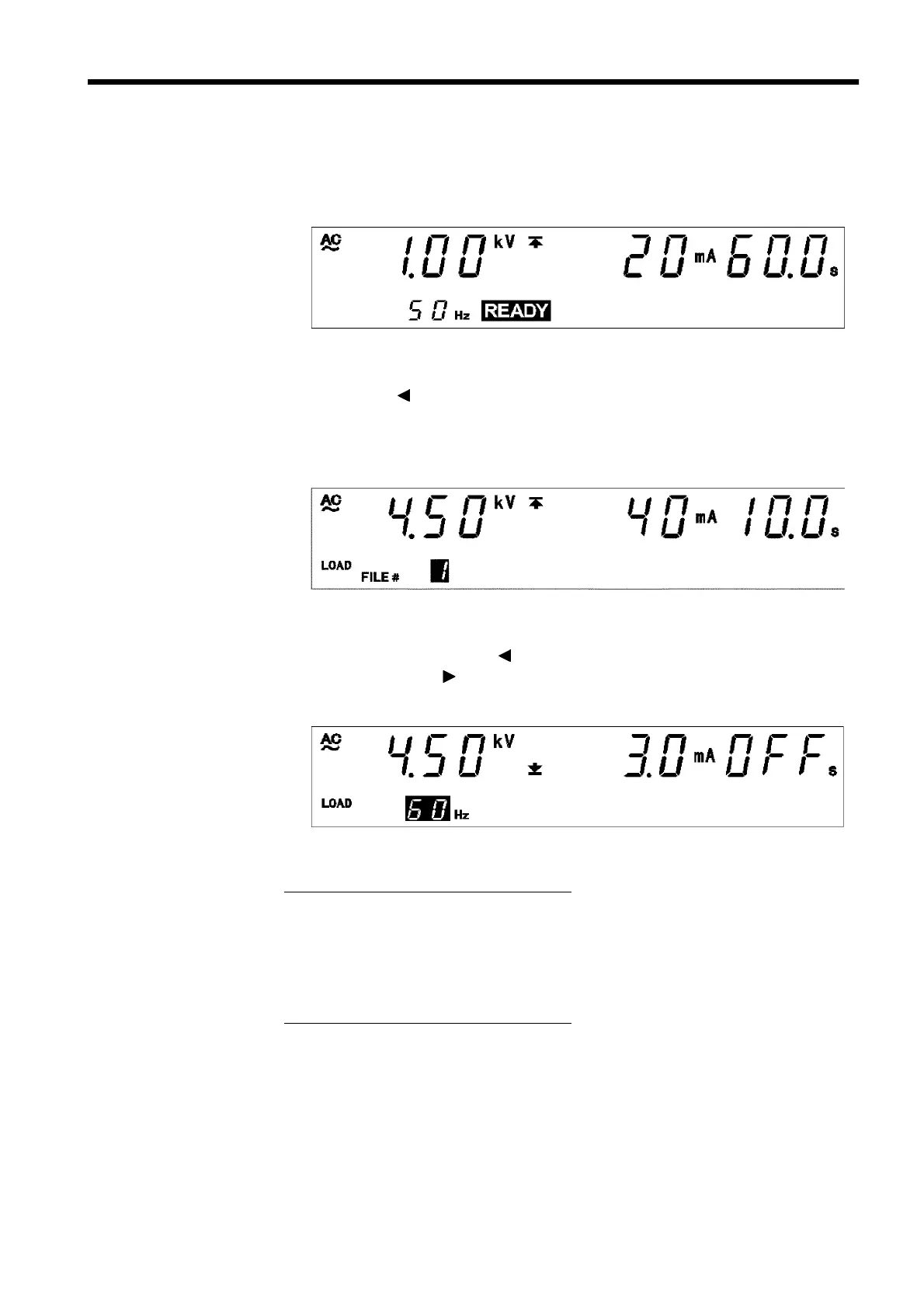

1. Press
SHIFT
+ keys to bring up the load screen.
In the load screen, the value set in the READY state is replaced by the
saved data being displayed. The first saved data displayed is the last data
item from the previous load screen. This example shows "
File No.1.
"
At this time, the "test frequency" (in the case of AC-withstand-voltage)
can be confirmed using the key, the "lower-limit value" can be
confirmed using the key, and the "ramp-up/down time" can be
confirmed using the
ON/OFF
key.
In this example, File No. 1 contains the following settings.
