4.3 "SETTING" State
______________________________________________________________________________________________

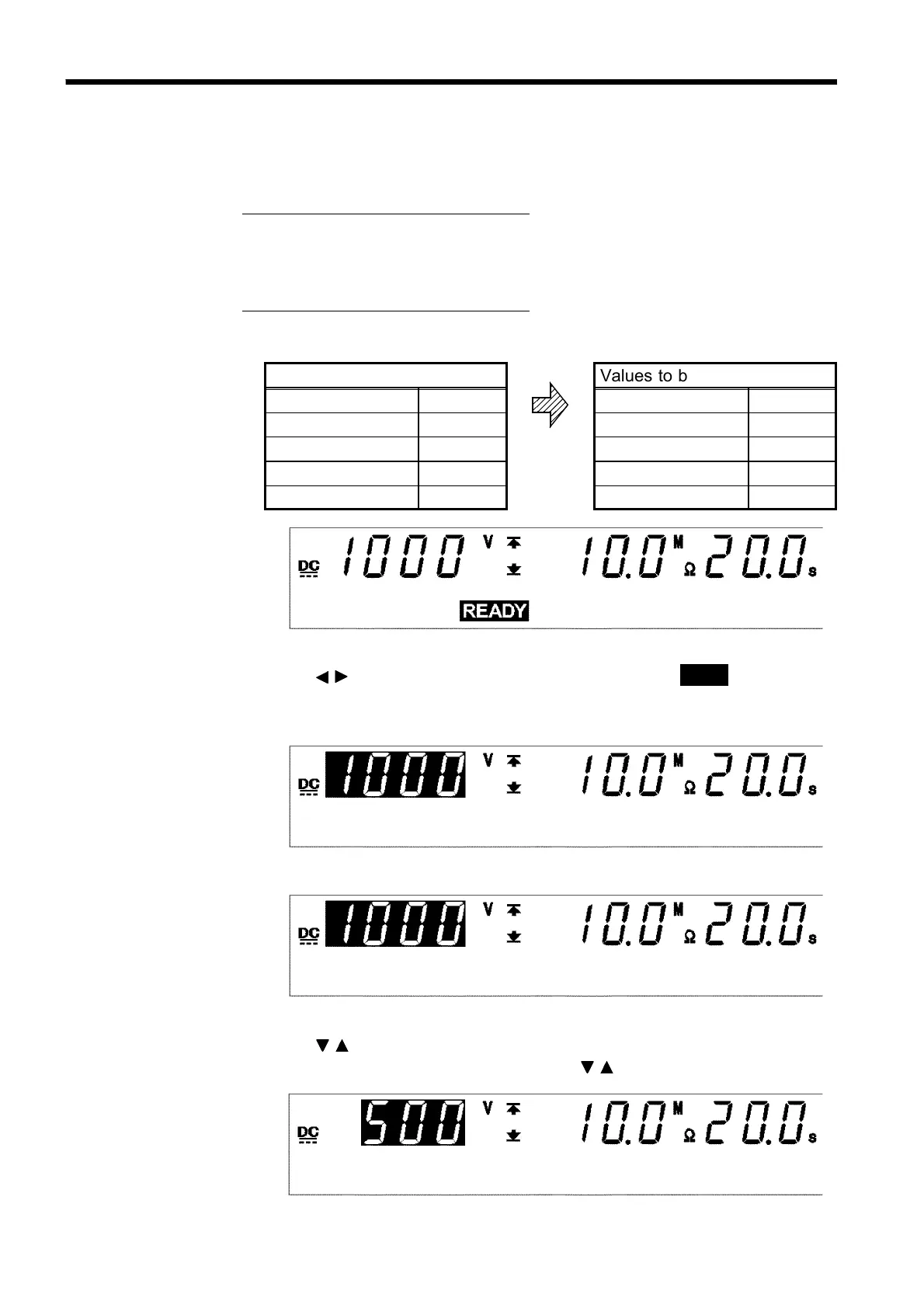

4.3.5 Examples of Settings
Test-voltage value: 500 V
Lower-limit value: 100 MΩ
Upper-limit value: OFF
Test time: 5.0 s
Delay time: 0.5 s
Values currently set



Values to be set
Test-voltage value 1000 V Test-voltage value 500 V
Lower-limit value 10.0 MΩ Lower-limit value 100 MΩ
Upper-limit value 2000 MΩ Upper-limit value OFF
Test time 20.0 s Test time 5.0 s
Delay time 1.0 s Delay time 0.5 s
This section describes the procedure for making insulation-resistance test
settings under the following conditions.
The 3153 is in the READY state in insulation-resistance mode.
(1) Changing to the SETTING state
Press the / keys to switch to the SETTING state. The
READY
light will go
out, and the flashing cursor will be displayed at the position where the test-
voltage value is indicated.
(2) Setting the test-voltage value
In this example, the value is
1000 V
.
Using the / keys, set the comparative voltage value to
500 V
.
To change the value by
10 V
, press
SHIFT
+ / keys.
