Hioki 3153 - Chapter 5 Auto Test Mode Testing Method

67
_____________________________________________________________________________________________
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14

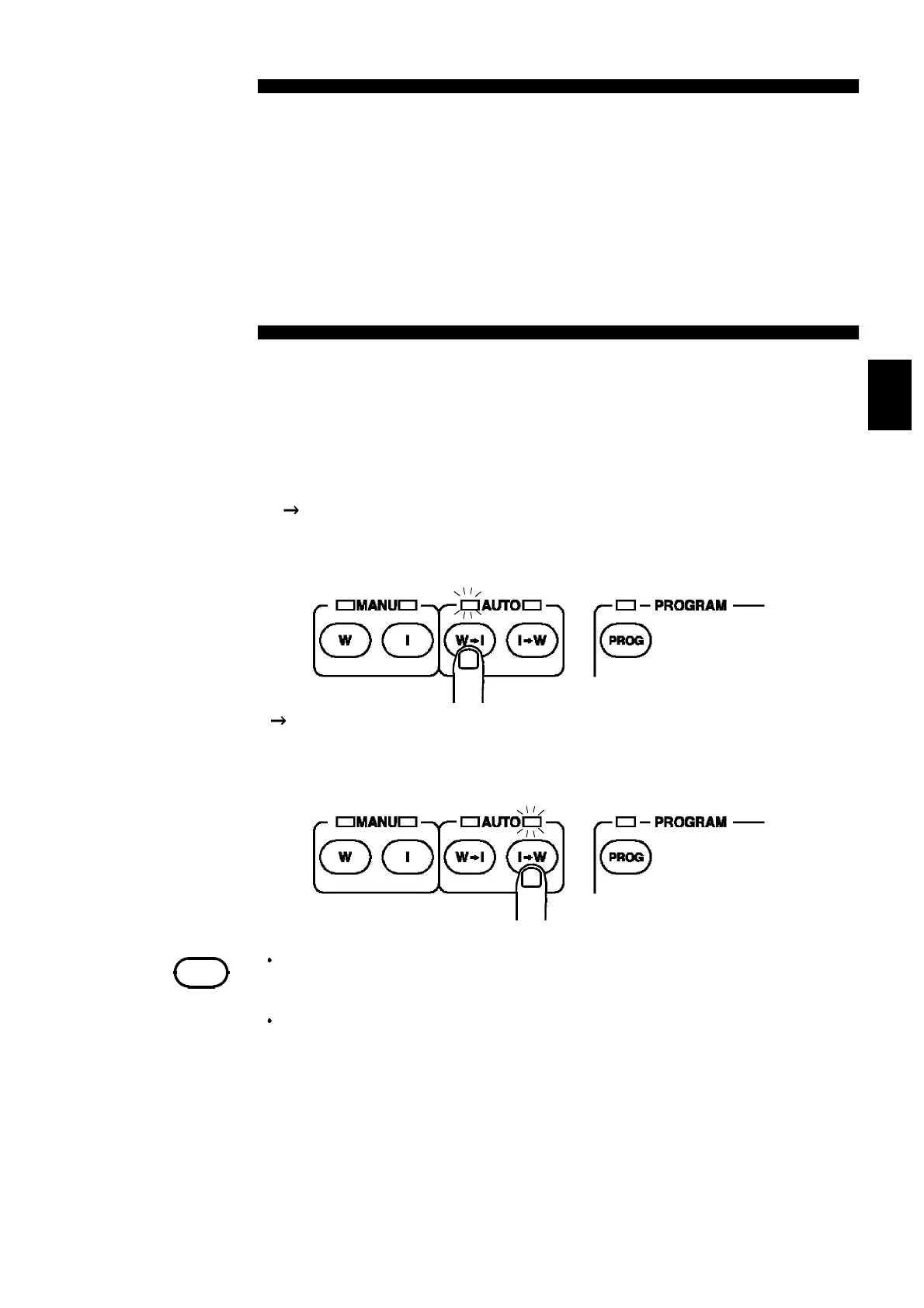

A
Flashing
Flashing
NOTE
The lamps above the key light. When switching between withstand-
voltage and insulation-resistance testing, the W or I lamp lights,
respectively.
Note that the output waveform may be distorted when conducting an
AC withstand voltage test for a voltage-dependent device or object (e.g.,
ceramic capacitor). Excessively large distortion may damage the device
or tested object.
Chapter 5
Auto Test Mode Testing Method
This chapter describes how to set auto test mode test conditions and the
proper testing procedure.
Read chapter 2, and make the necessary preparations for testing.
This mode has two types:
(1) W I mode
Tests for withstand voltage, then insulation resistance.
(2) I W mode
Tests for insulation resistance, then withstand voltage.
