4.5 "PASS" or "FAIL" Determination
______________________________________________________________________________________________

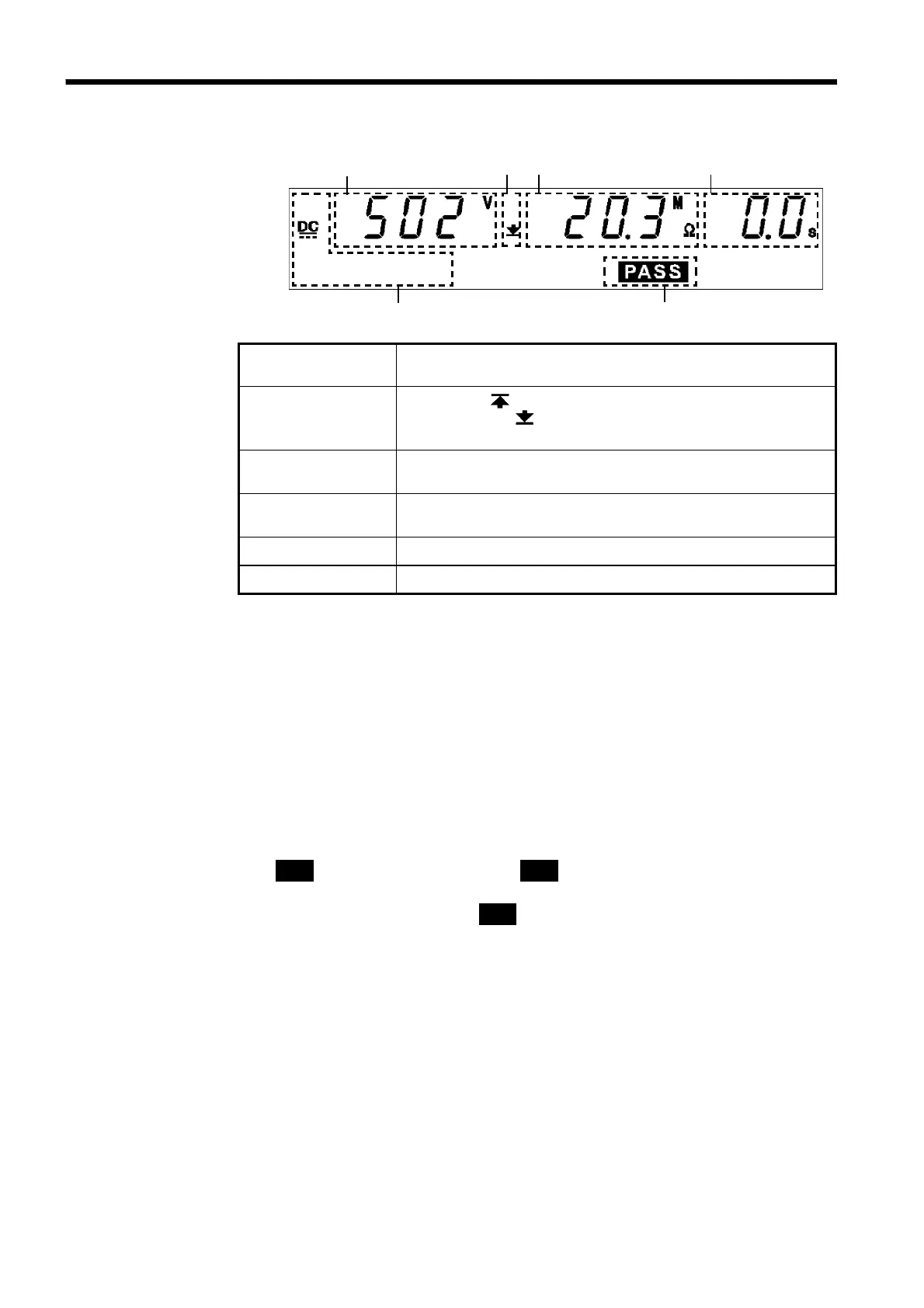

4.5.2 Screening in "PASS" State
1 2 3
4
5
6
1 Measured
voltage value
Indicates the voltage in the PASS state.
2 Upper-limit value
icon and Lower-
limit value icon
The symbol appears when the upper-limit value is set,
and the symbol
appears when the lower-limit value is
set.
3 Measured
resistance value
Indicates the measured resistance value in the PASS state.
4 Test time
elapsed
"
0.0s
" is displayed.
5 Test-voltage type
Indicates the test type (DC).
6 PASS
Indicates that the unit is in the PASS state.
Danger lamp
Indicates that a voltage is being output. The lamp stays on during the test.
In the insulation-resistance mode, the lamp will also light if a voltage
exceeding the safety voltage (approximately DC 60 V) remains between the
output terminals after the test has been completed.
Analog voltmeter
Indicates the voltage value being output. Even when values are held using
the "PASS hold function," the value of the analog voltmeter is not held.
External I/O
The
PASS
――――――
signal is turned ON when
PASS
on the fluorescent indicator is lit.
As long as the PASS state is held, the
PASS
―――――――
signal remains ON. The
PASS
―――――――
signal is turned OFF when the
PASS
light on the fluorescent indicator goes
out.
If voltage remains in the output-voltage terminal following termination of a
test, the
H.V.ON
――――――――――
signal remains ON. When the
DANGER
lamp goes out,
H.V.ON
――――――――――
signal is immediately turned OFF.
