3.3 "SETTING" State
______________________________________________________________________________________________
NOTE
In the SETTING state, the
READY
light goes out and tests cannot start.
In the withstand-voltage mode READY state and "test setting state," although the
test-volta
g
e value is dis
p
la
y
ed, that volta
g
e is not bein
g
out
p
ut.


SETTING state
READY state
/ key
NOTE
・Note that the unit does not start test if the lower-limit value is greater than the
upper-limit value. In this case, correct the settings and press the
STOP
key to
confirm them.
・Note that the unit does not start test if the test-voltage value is greater than the
out
p
ut-volta
g
e restrictin
g
value. See Section 7.9.
3.3 "SETTING" State
To set or change test settings, switch to the SETTING state.

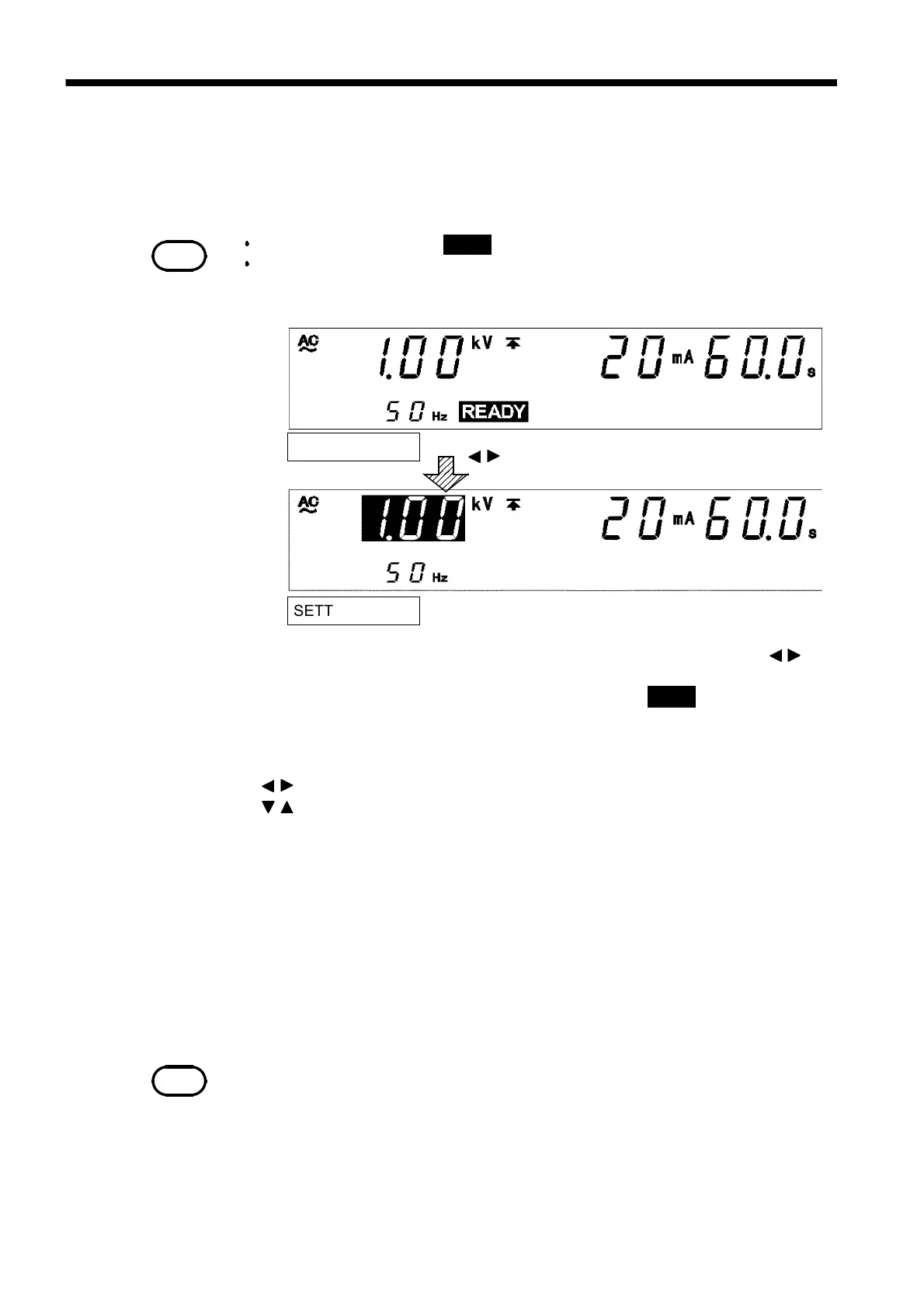

1. In the withstand-voltage mode READY state, when you press the
/
keys, the flashing cursor appears where the test voltage is indicated to
show that the unit is in the SETTING state. (The
READY
light goes out
and tests cannot start even if the
START
key is pressed.)
2. Use the following operation keys to make settings:
/
key: Move the flashing cursor.
/
key: Change settings.
ON/OFF
keys: Activate and deactivate values.
・
The flashing cursor moves between the test-voltage value, upper-limit
value, lower-limit value, test time, ramp-up time, ramp-down time and the
test-voltage type.
・
If the value indicated by the flashing cursor is not needed in the test, turn
it OFF using the
ON/OFF
keys. The upper-limit value, the test-voltage
value and the test-voltage type however, cannot be turned OFF.
3. To finalize the test settings, press the
STOP
key. The settings are
confirmed and the unit returns to the READY state.
