3.5 "PASS" or "FAIL" Determination
______________________________________________________________________________________________
3.5.1 "PASS" State
WARNING
Even when a test has been terminated, there may still be voltage in the
output-voltage terminal. Before touching the output-voltage terminal,
H.V. TEST LEAD, or tested object, make sure that no high voltage is
being applied to the output, confirm the following items.
(1) The analog voltmeter reads 0 kV.
(2) The
DANGER
lamp is OFF.
(3) The
READY
lamp is lit (it is off in the Double Action mode).
Ram
p
-down time
Time
Testin
g
time when it set u
p
DANGER
Lam
p
0.03 kV AC or
0.06 kV DC
Ram
p
-u
p
time
Flashing
Flashing
Out
p
ut volta
g
e
NOTE
・For screening in the ramp timer, see 3.3.4 and 7.12.
3.5 "PASS" or "FAIL" Determination
If the test time has not been set, PASS screening is not performed. To the
test, press the
STOP
key, which will forcibly terminate the test.
Optional Functions
The PASS state is held using the PASS Hold function. (See Section 7.1)

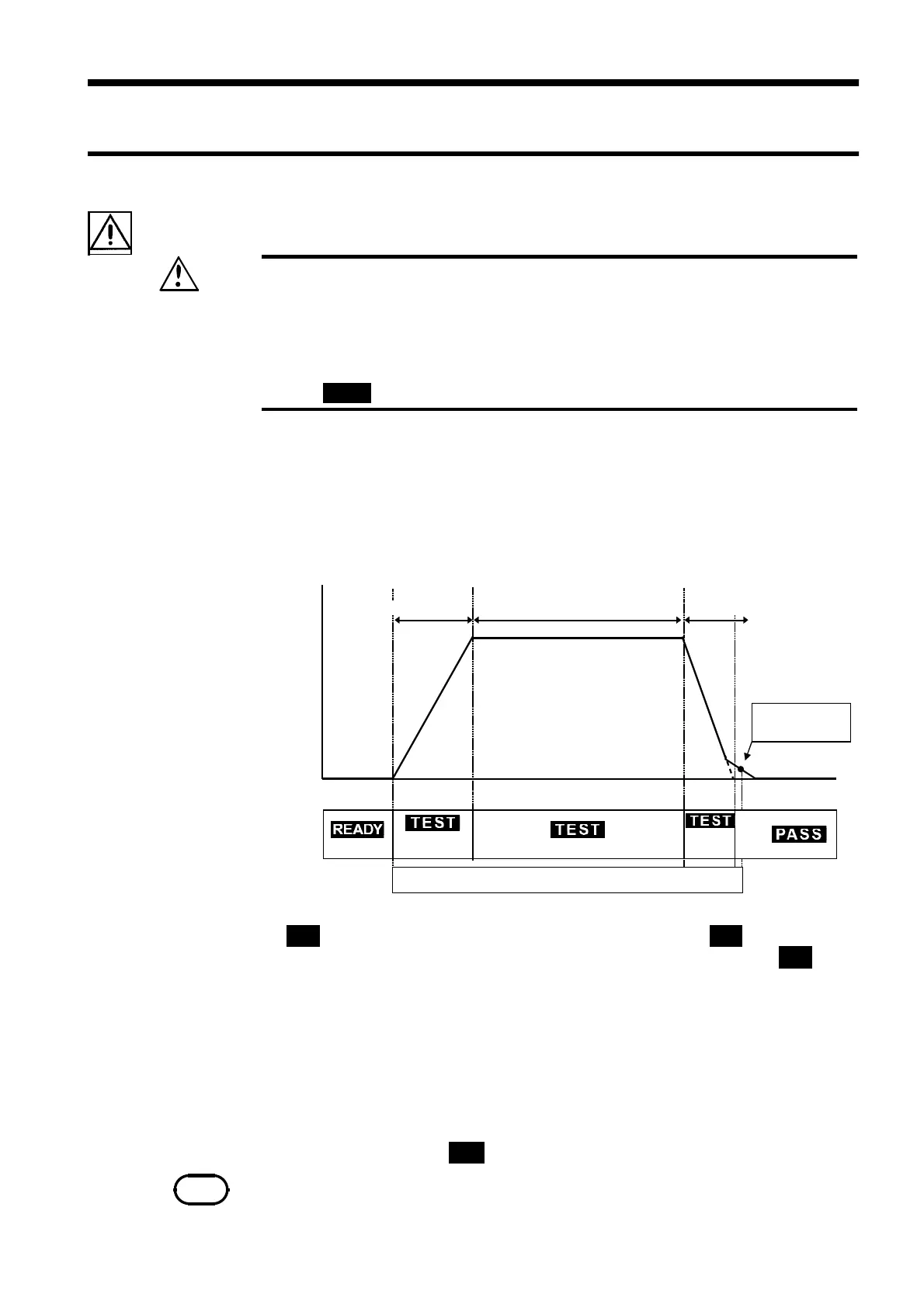

Flow of PASS determination
1. Press the
START
key to start a test.
2.
TEST
flashes until the output voltage reaches the set test voltage.
TEST
also flashes
during the ramp-up time. When the output voltage reaches the test voltage,
TEST
remains lit, and the reduction timer starts counting down the test time.
3. A voltage is output until the test time elapses. (If the measured-current
value deviates from the upper- and lower-limit values, the unit switches to
the FAIL state.
4. If the ramp-down time is not set, upon completion of the test time, the unit will
change to the PASS state. If the ramp-down time is set, the reduction timer starts
counting down the ramp-down time. Upon expiration of the time, the measurement
result upon completion of the test is displayed, and the unit changes to the PASS
state. In the PASS state,
PASS
is lit.
