8.1 Saving Preset Values
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
Test type: AC 60 Hz
Test-voltage value: 4.50 kV
Upper-limit value: 40 mA
Lower-limit value: 3 mA
Test time: 10.0 s
Ramp-up time: OFF
Ramp-down time: OFF
Test type: AC 50 Hz
Test-voltage value: 2.00 kV
Upper-limit value: 20 mA
Lower-limit value: OFF
Test time: 0.5 s
Ramp-up time: OFF
Ramp-down time: OFF

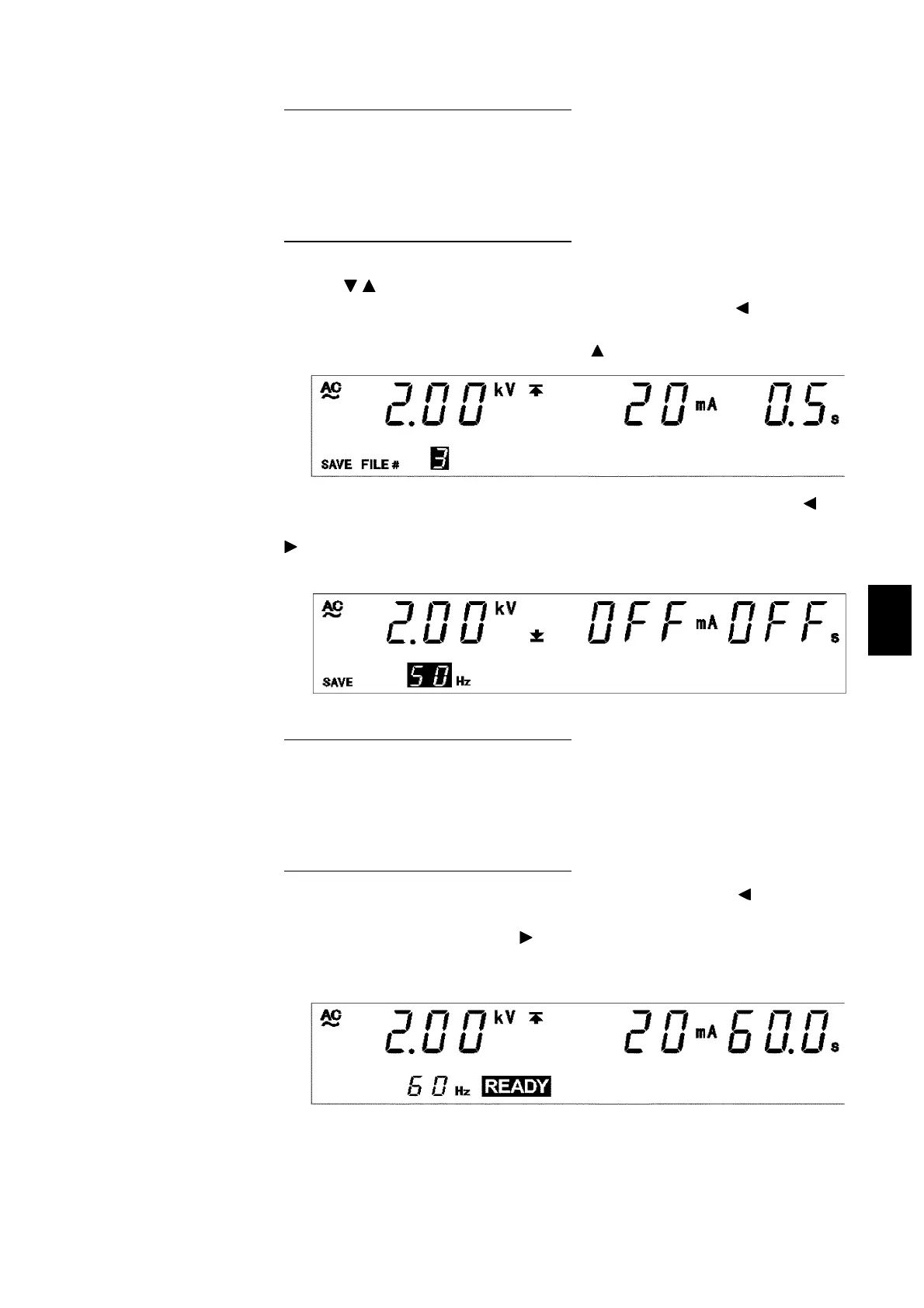

In this example, File No. 1 contains the following settings.
3. Use the
/
keys to select File No.3.
If a test frequency is displayed in "File number," press the key to
display the file number.
This example shows File No. 1. Press the key twice to display File No.3.
4. The "test voltage" and "test frequency" can be confirmed using the key,
the "upper-limit value" and "lower-limit value" can be confirmed using the
key, and the "test time" and "ramp-up/down time" can be confirmed
using the
ON/OFF
key.
In this example, File No. 3 contains the following settings.
5. If a test frequency is displayed in "File number," press the key to
display the file number.
To save the data, press
SHIFT
+ keys. The unit reverts to the READY
state. Once saved, the value set in the READY state is retained in File No.3.
Note that File No.3, shown in Step (4) above, is deleted.
To abort the save procedure, press the
STOP
key at Step (4). The unit
halts the save procedure and reverts to the READY state.
