6.1 Program Mode Display
______________________________________________________________________________________________
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A

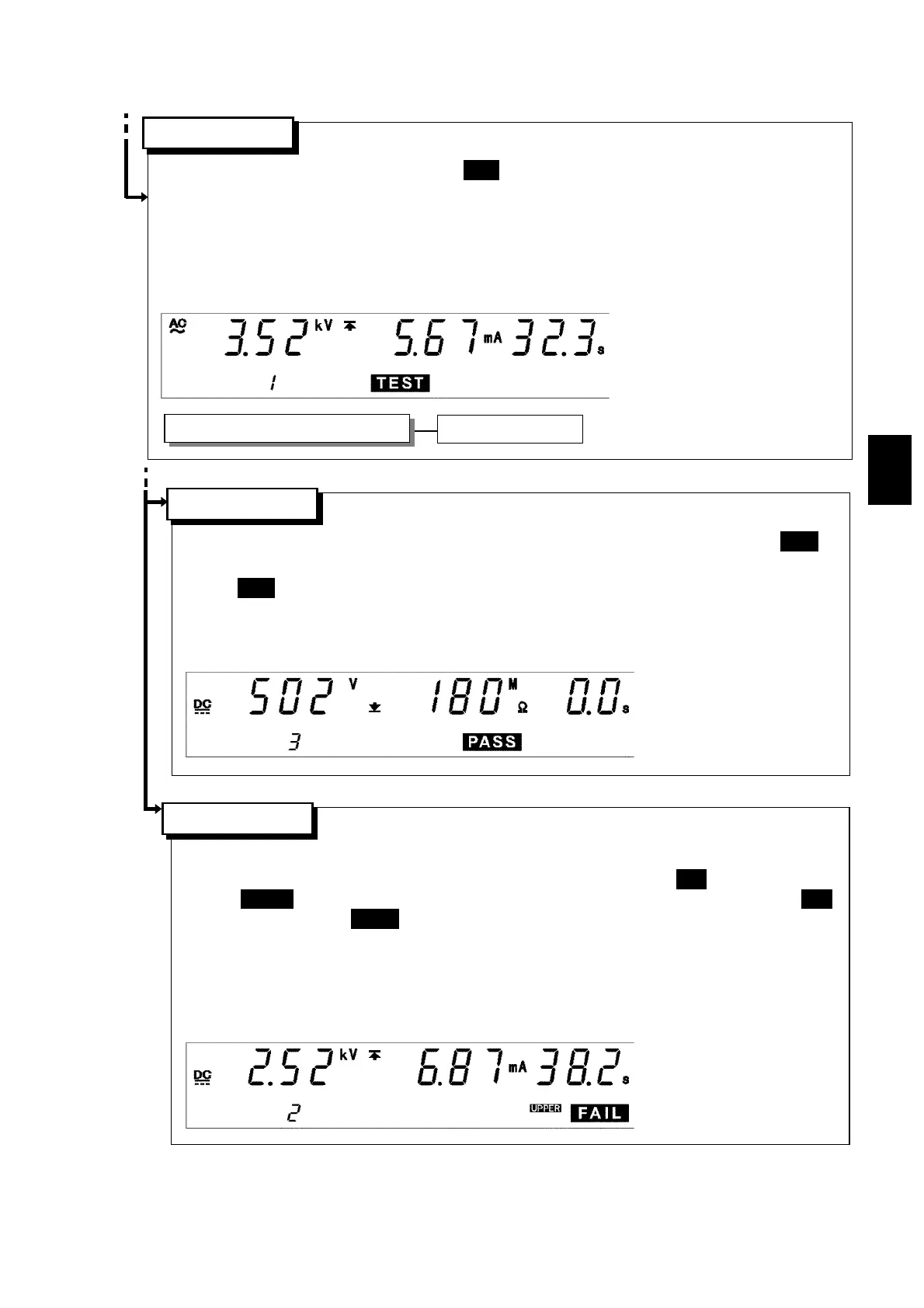

Key operation in the TEST status
・When the unit is in the TEST state, the
TEST
lamp is lit. This indicates that a test is in
progress.
・The measured current and resistance values are compared with the lower-and upper-limit
values. If the measured resistance value has deviated from those limit values when the test
time has elapsed, the unit switches to the FAIL state. If the measured resistance value has not
deviated in any test, the unit switches to the PASS state.
・Press the
STOP
key to forcibly terminate the test.
Forced ending
・This state demonstrates that the measured value has passed all programmed tests.
PASS
lights up.
・The
PASS
lamp is turned on. The PASS state screen is displayed for about 0.3 second
before switching to the READY state.
・The PASS state can be maintained if the PASS Hold function is disabled in the optional
settings. (See Section 7.1)
・This state demonstrates that the measured value has not passed the set test conditions.
・When the measured value has deviated from the lower-limit value,
FAIL
lights up along
with
LOWER
, and when the measured value has deviated from the upper-limit value,
FAIL
lights up along with
UPPER
.
・The FAIL state can be maintained. To return to the READY state, press the
STOP
key,
which will cancel the FAIL Hold function.
・FAIL Hold function can be disabled in the optional settings.The FAIL-state screen is
displayed for 0.3 seconds, and the unit then switches to the READY state.
(See Section 7.2)
Press the
STOP
key.
See Section 6.5.2
See Section 6.6.1
See Section 6.6.3
｢
READY
状態｣
TEST
state
｢
READY
状態｣
PASS
state
｢
READY
状態｣
FAIL
state
START key
