HONDA

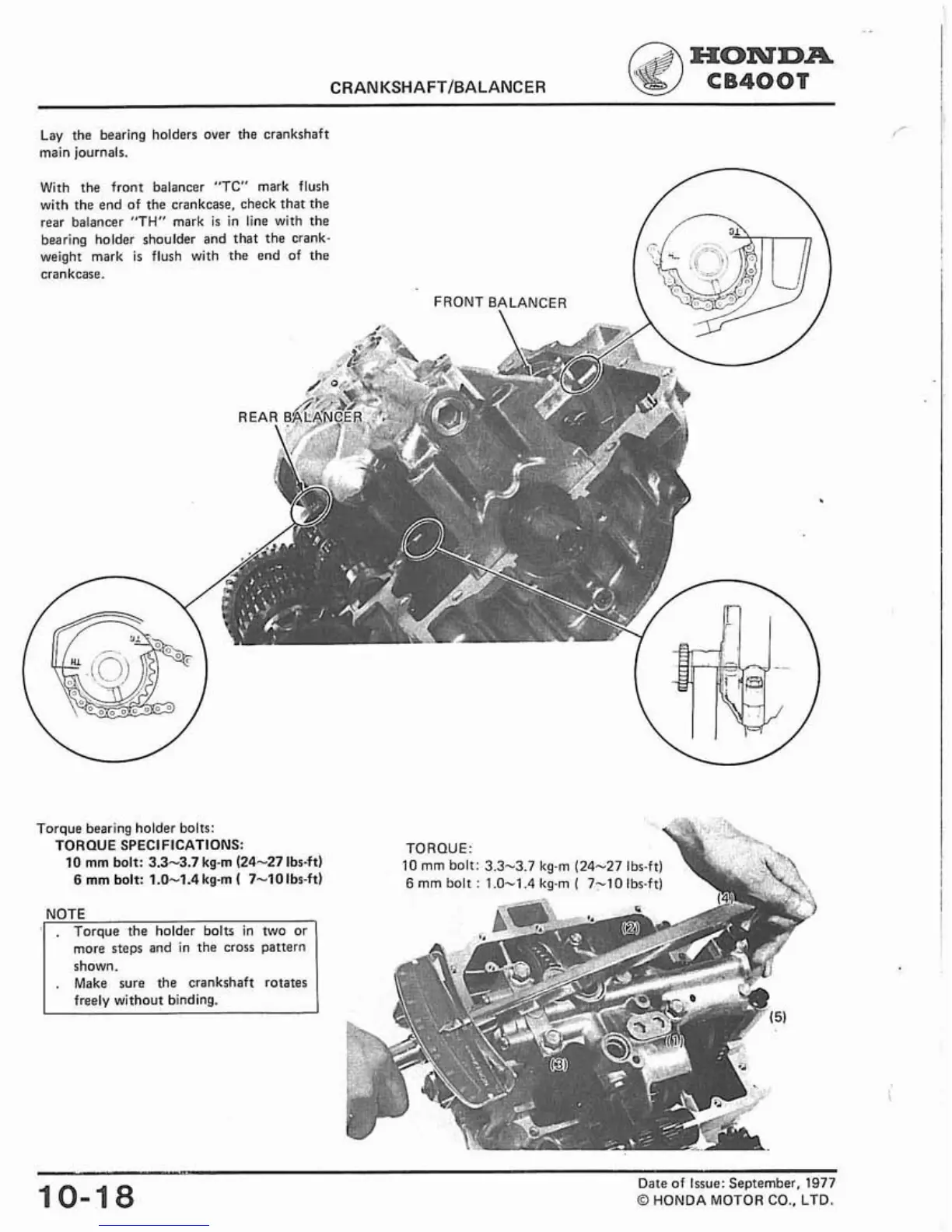

CRANKSHAFTIBALANCER CB4OOT
Lay the bearing holders over the crankshaft
main journals.
With the front balancer "TC" mark flush
with the end of the crankcase, check that the
rear balancer "TH" mark
is in line with the
bearing holder shoulder and that the
crank-
weight mark is flush with the end of the
crankcase.
FRONT BALANCER
Torque bearing holder bolts:
TORQUE SPECIFICATIONS:
10 rnrn bolt: 3.3-3.7 kg-m
(24-27ibs-ft)
6 mrn bolt: 1.0-1.4 kg-m ( 7-1OIbs-ftl
more steps and in the cross pattern
shown.
Make sure the crankshaft rotates
freely without binding.
TORQUE:
10
mm bolt: 3.3-3.7 kg.m (24-27 lbs-ft)
6 rnm bolt : 1.0-1.4 kg-m ( 7-10 lbs-ft)
10-1 8
Date of Issue: September, 1977
O HONDA MOTOR CO.. LTD.
