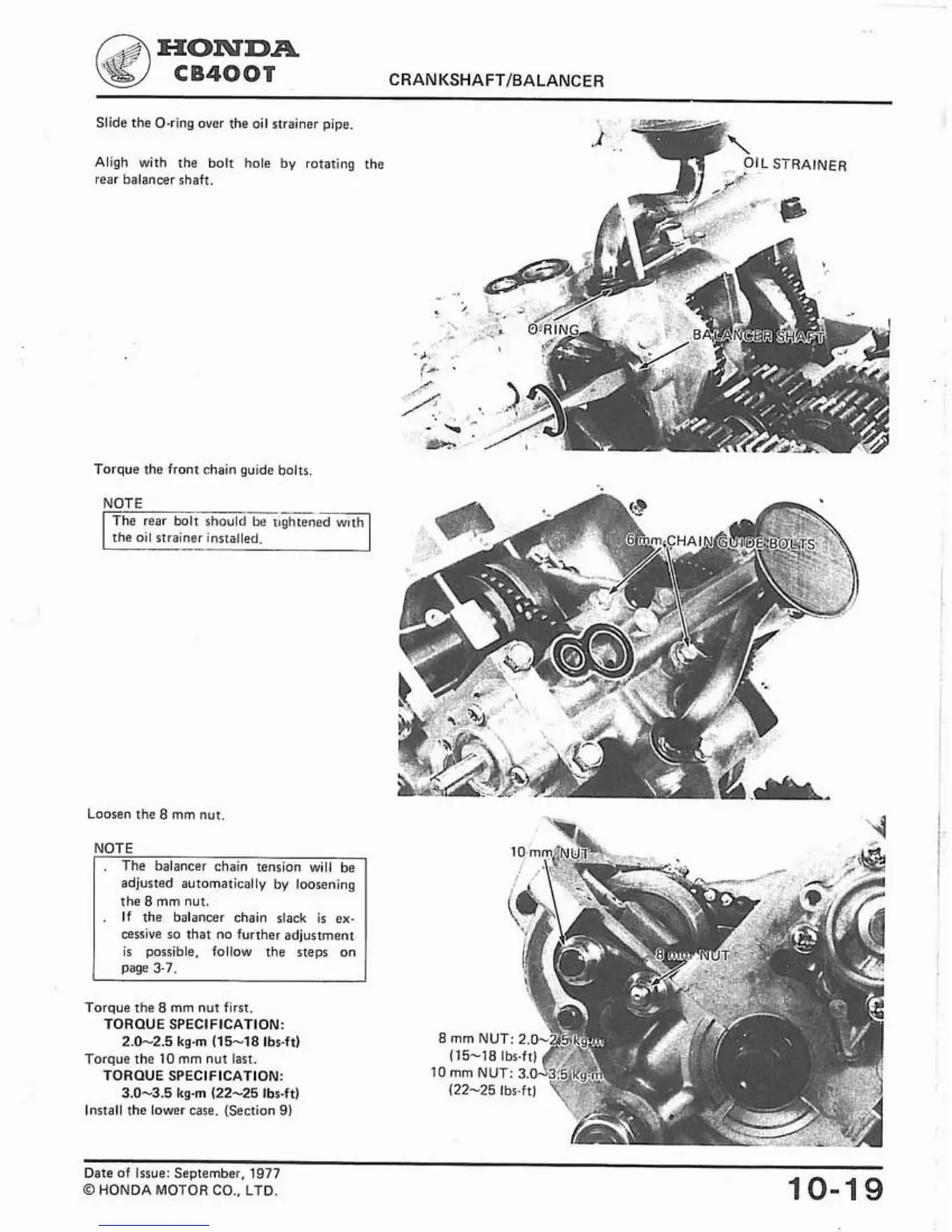

HONDA
CB400T
CRANKSHAFTIBALANCER
Slide the O-ring over the oil strainer pipe.
Aligh with the bolt hole by rotating the
rear balancer shaft.
Torque the front chain guide bolts.
NOTE
phe rear bolt should be t15ne-
Lthe oil strainer installed.
Loosen the
8
mm nut
UOTE
.
The balancer chain tension will be
adjusted automatically by loosening
the
8
mm nut.
.
If the balancer chain slack is ex-
cessive so that no further adjustment
is
possible, follow the steps on
Daae
3-7.
Torque the
8
mm nut first.
TORQUE SPECIFICATION:
2.0-2.5
kg-m
115-18
lbs-ftl
Torque the
10
mm nut last.
TORQUE SPECIFICATION:
3.0-3.5
kg-m
(22-25
lbs-ft)
Install the lower case. (Section 91
Date of Issue: September, 1977
O
HONDA MOTOR CO.. LTD.
10-19
