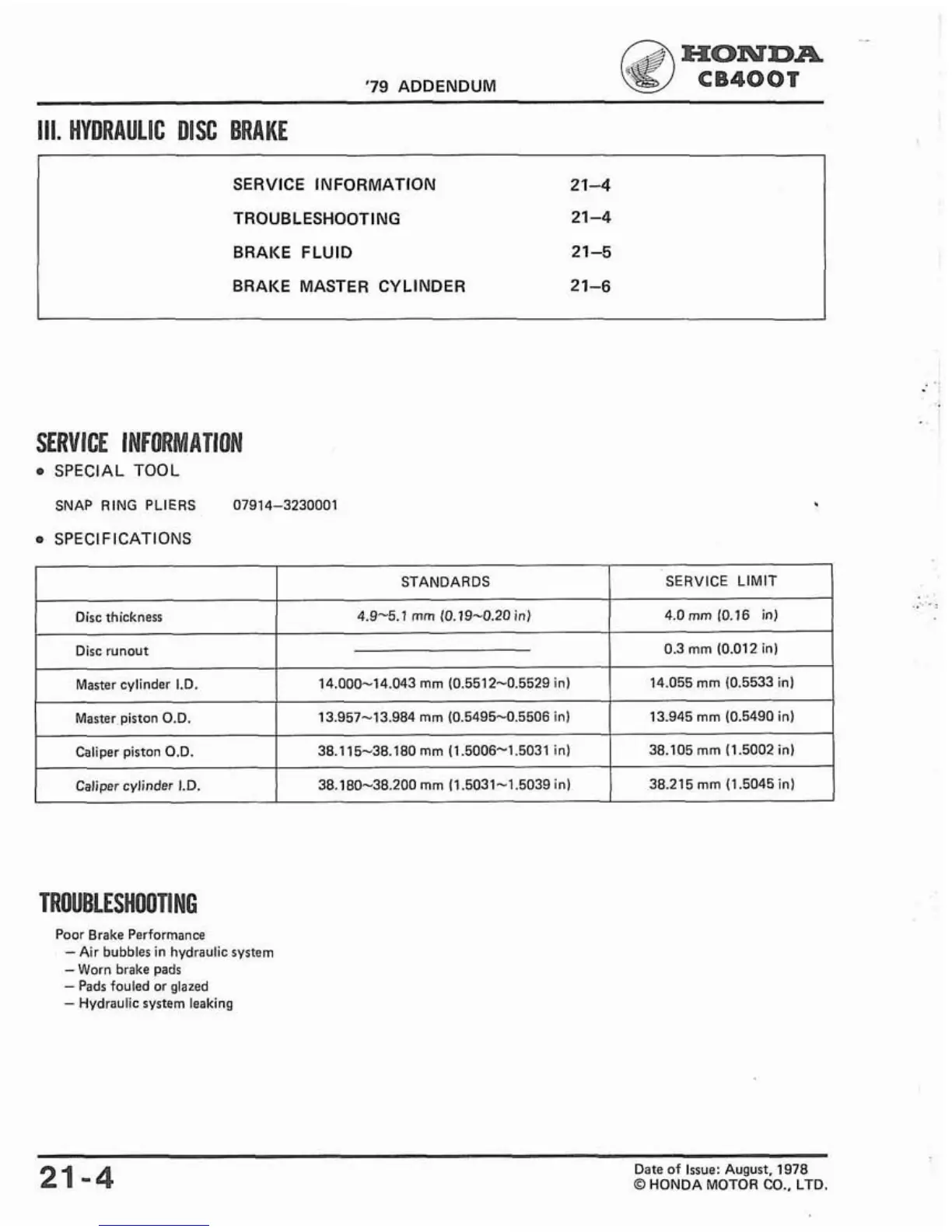

'79 ADDENDUM CB400T
Ill. HYDRAULIC DISC BRAKE
I
SERVICE INFORMATION 21-4
TROUBLESHOOTING 21-4
BRAKE FLUID
21-5
BRAKE MASTER CYLINDER 21-6
SERVICE INFORMATION
SPECIAL TOOL
SNAP RING PLIERS 07914-3230001
SPECIFICATIONS
TROUBLESHOOTING
Poor Brake Performance
-Air bubbles in hydraulic system
-Worn brake pads
- Pads fouled or glazed
- Hydraulic system leaking
SERVICE
LIMIT
4.0 mrn (0.16 in)
0.3 mm (0.012 in)
14.055
mm (0.5533 in)
13.945 mm (0.5490 in)
38.105
mm (1.5002 in)
38.215 mm (1.5045 in)
Disc thickness
Disc
runout
Master cylinder I.D.
Master. piston O.D.
Caliper piston O.D.
Caliper cylinder I.D.
21 -4
Date of Issue: August. 1978
O HONDA MOTOR CO., LTD.
STANDARDS
4.9-5.1 mm (0.19-0.20 in)
14.000-14.043 mm (0.5512-0.5529 in)
13.957-13.984 mm (0.5495-0.5506 in)
38.115-38.180 mm (1.5006-1.5031 in)
38.180-38.200 mm 11.5031-1.5039 in)
