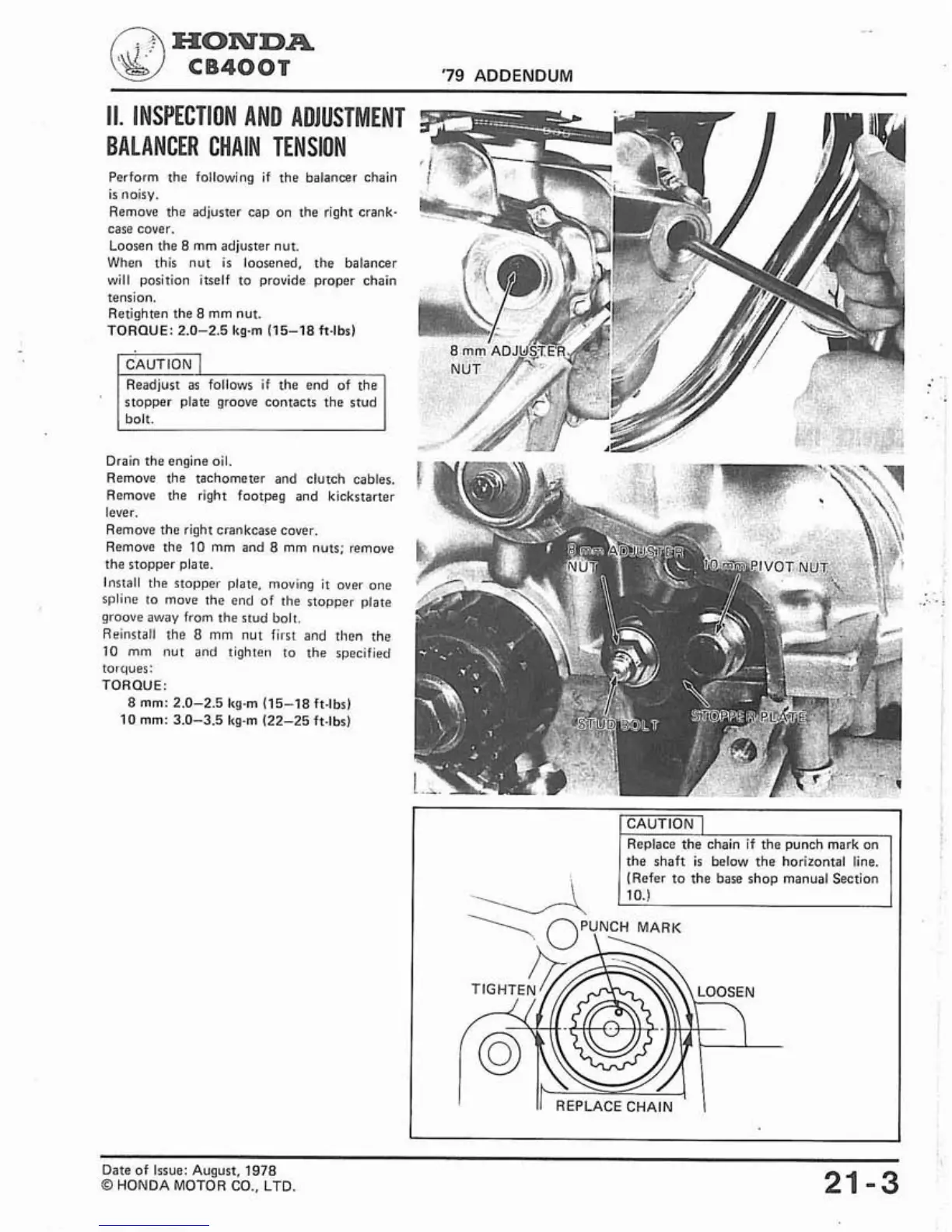

11. INSPECTION AND ADJUSTMEN1
BALANCER CHAIN TENSION
Perform
the following if the balancer chain
is noisy.
Remove the adjuster cap on the right crank-
case cover.
Loosen the
8 mm adjuster nut.
When this nut
is loosened, the balancer
will position itself to provide proper chain
tension.
Retighten the 8 mm nut.
TORQUE: 2.0-2.5 kg-m
115-18 h-lbs)
CAUTION I
Readiust as follows if the end of the I
Drain the engine oil.
Remove the tachometer and clutch cables.
Remove the right
footpeg and kickstarter
lever.
Remove the right crankcase cover.
Remove the
10 mm and 8 mm nuts; remove
the stopper plate.
Install the stopper plate, moving
it over one
spline to move the end of the stopper plate
groove away from the stud bolt.
Reinstall the
8 mm nut first and then the
10 mm nut and tighten to the specified
torques:
TORQUE:
8 mm: 2.0-2.5 kg-m (15-18 ft-lbs)
10 mm: 3.0-3.5 Icg-m 122-25 ft-lbr)
'
I CAUTION I
stopper plate groove contacts the stud
bolt.
Replace the chain if the punch mark on
the shaft
is below the horizontal line.
(Refer to the base shoo manual Section
