H-S81-HS Installation & Operation Manual — P/N LS10114-000HI-E:A 2/24/2015 91
Termination modules Parts of the H-S81-HS System
Technical Features

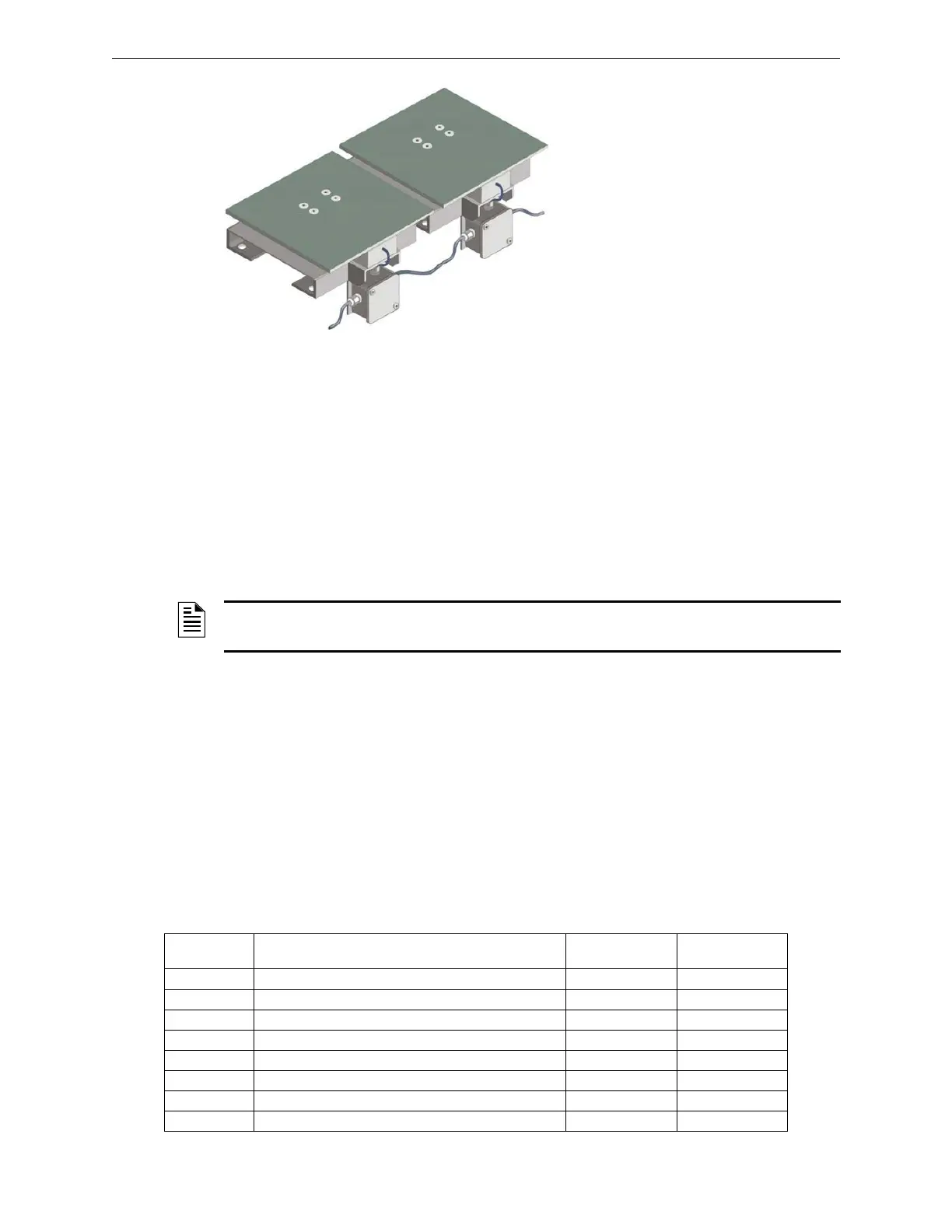

Assembly
Install the weighing module to the floor with the relevant base by using the four fixing holes on the
lower section of the support. Before tightening the fixing nuts, make sure that cylinder base plate is
perfectly level. Do not install the module outdoor.
Programming the Weighing Module Address
In order to program the address of weighing modules follow the procedure below:
1. Enter the module diagnosis cycle.
2. Select the Program Device Address menu.
3. Set the desired address using the
↑ and ↓ keys.
4. Press Enter.
Weighing Module Reset
In order to reset the weighing modules, follow the procedure below:
1. Enter the module diagnosis cycle.
2. Select the Devices menu.
3. Go to the weighing module to be reset using the arrows.
4. Press Enter.
2.5 Termination modules
I/O modules may be terminated by using termination modules or by directly using a multi-conduc-
tor cable, depending on the bus type in use.
• Support Material: Steel
• Supply voltage: 22-28VDC
• Typical absorption: 36mA typical
• Protection class: IP 30
• Operating temperature: -5 - 50°C
• Measuring range: 0 - 3000 hg
• Maximum load: 300 Kg
• Compatible control modules: S81-F7008-1
• RS485 bus maximum length: 1000 meters
NOTE: During this stage, only the weighing module to which address has to be
assigned must be connected to the bus.
Module PN Description
Termination with
Flat Cable
Termination with
Cable
S81-F3002-1 Module with 8 x 22VDC monitored inputs S81-T8001-1 S81-CCT1
S81-F3002-2 Module with 8 x 22VDC monitored inputs Not available S81-CCT1R
S81-F3002-3 Module with 8 x 12VDC monitored inputs S81-T8001-1 S81-CCT1
S81-F4001-1 Module with 1 x 4-20mA analog input S81-T8003-1 S81-CCT2
S81-F4001-2 Module with 1 x 4-20mA analog input Not available S81-CCT2R
S81-F4002-1 Module with 2 x 4-20mA analog inputs S81-T8003-1 S81-CCT7
S81-F4002-2 Module with 2 x 4-20mA analog inputs Not available S81-CCT7R
S81-F4003-1 Module with 8 x 4-20mA analog inputs S81-T8003-1 S81-CCT3
